Category: Carton Sealers Belt Drive: Side Belt Drive

AS-S

Up to 34 Cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz POWER
REQUIREMENTS
45-60 PSI
4-5 SCFM
AIR
REQUIREMENTS
527-616 LBS SHIPPING
WEIGHT
Description / Specifications/ Accessories/

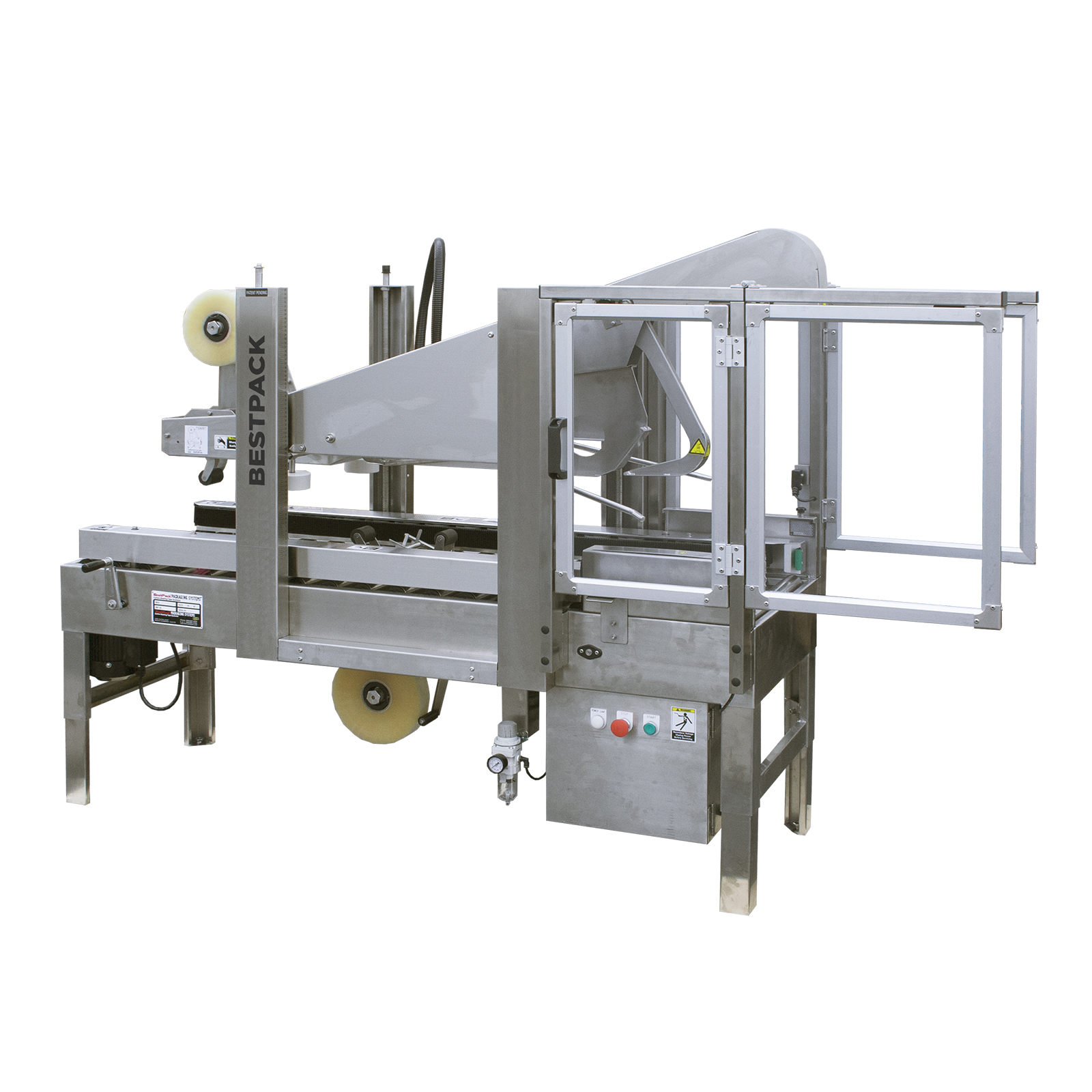

The BestPack™ AS-Stainless Steel Series is an operator-free carton sealer designed to meet the needs of uniform in-line carton closure applications in wet environments. Designed with a solid four column support structure and using dual motor side belt technology, the AS-S closes all four top flaps and seals the top & bottom of the carton, using 45-60 PSI and 4-5 SCFM of air.

All BestPack stainless steel units are crafted with food grade 304 stainless steel for 21 CFR 110 compliance and available in splash resistant or wash down models. The AS-S also includes our exclusive stainless steel 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment.

  • Speed Up to 34 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 45-60 PSI, 4-5 SCFM
  • Shipping Weight 527-616 lbs.
  • Machine Dimensions (77.7"*) x (33.8") x (69.0")
  • Carton Range (8.0" - 27.5") x (6.0" - 20.0") x (5.5" - 20.0")
  • Conveyor Height adjustment (22.5" - 30.0")
  • Specifications based on Line Specifications based on AS22-2S

Specifications based on AS22-2S

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • indexer picture
    Indexer

    The indexers function is to separate and time cartons into the carton sealer.
    ARX(uniform) or CRX (random)

  • stainless locking casters accessory
    Stainless Locking Casters

    The heavy duty stainless locking casters allow you to move a carton sealer around.

  • stainless long conveyor accessory
    Stainless Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. stainless long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless short conveyor accessory
    Stainless Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ stainless short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit. The stainless steel construction can be washed down.

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • Low Tape No Tape Sensor Feature
    Low Tape No Tape Sensor

    The Low Tape light allows operator to prepare a new roll of tape. The No Tape alarm will inform operator of error so that the carton may be resealed.

  • Stainless Steel Short Conveyor Roller
    Stainless Short Infeed/Exit Roller Conveyor w/ L-Bracket

    This 50 cm. stainless short roller conveyor is a great work platform and allows for staging of cartons on the infeed and the exit. The stainless steel construction can be washed down.

  • ac-s tape head picture
    Stainless Steel Tape Head

    Standard AC Tape Head in Food Grade 304 Stainless Steel.
