C Series

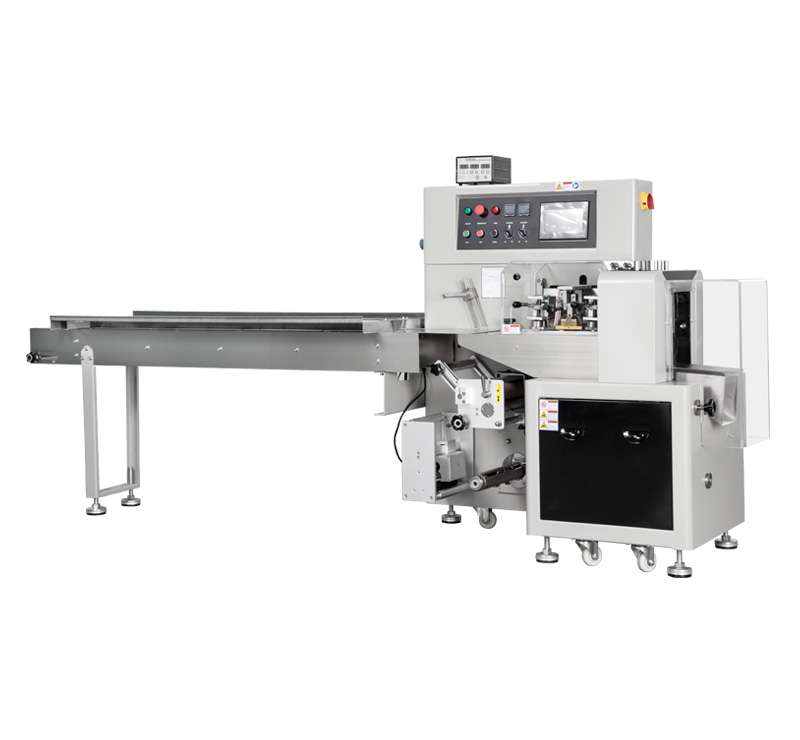

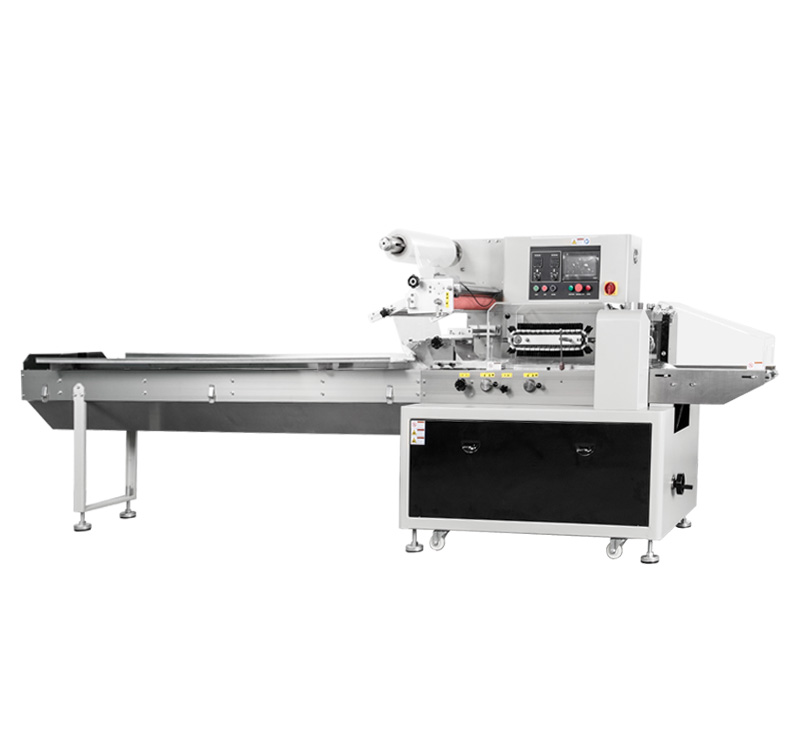

The Inverted C-Series Flow Wrappers (IVF) are used by many bakeries, confectionaries, edible marijuana, and cannabis manufacturers. Designed with a twin-motor drive, it is considered one of the best flow wrappers of its generation. It is suitable for edibles, candy, cookies, a wide variety of baked goods, and other products that are difficult to transfer on a conventional horizontal flow wrapper.

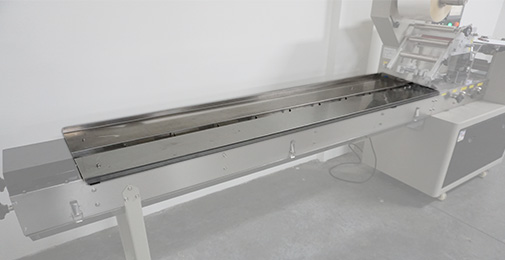

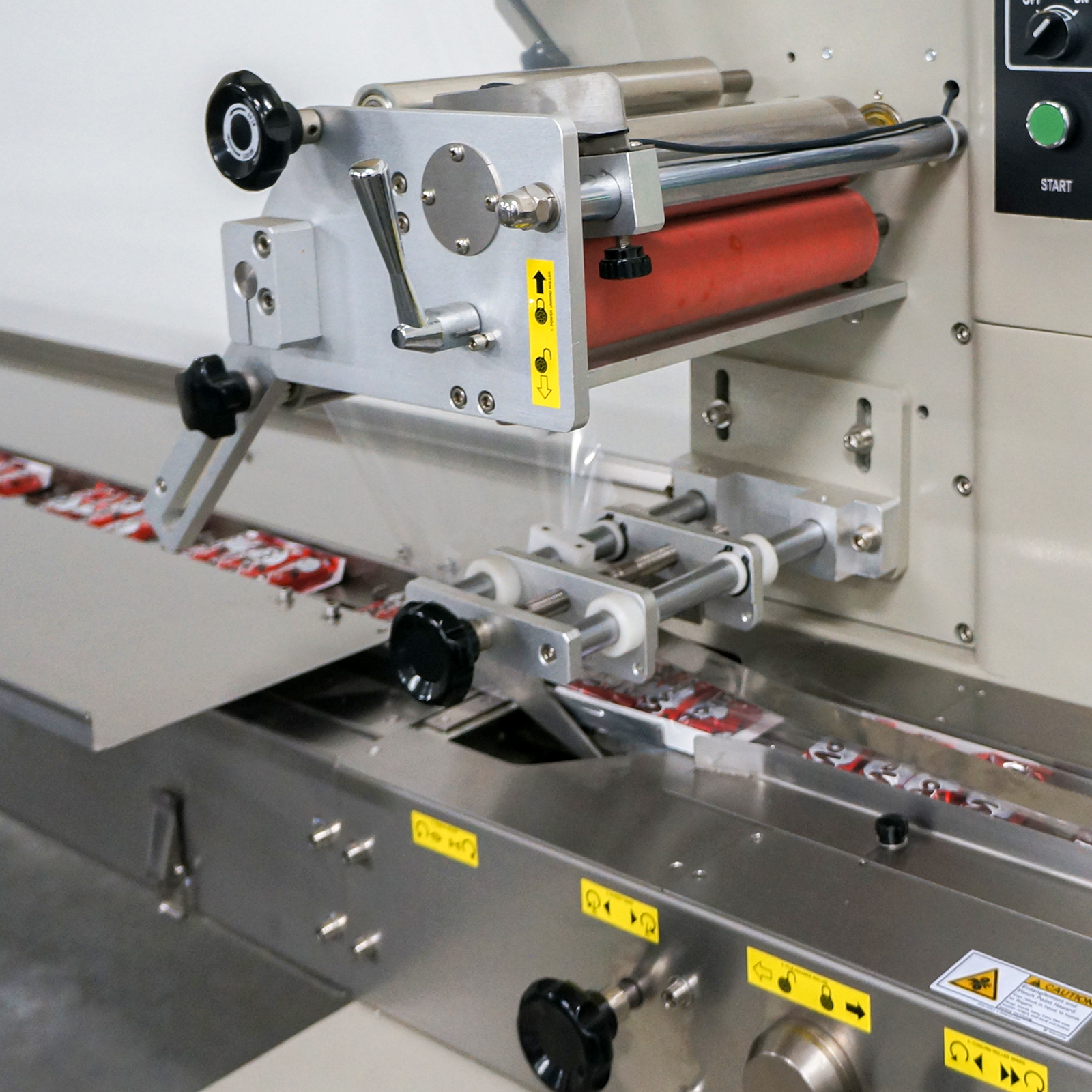

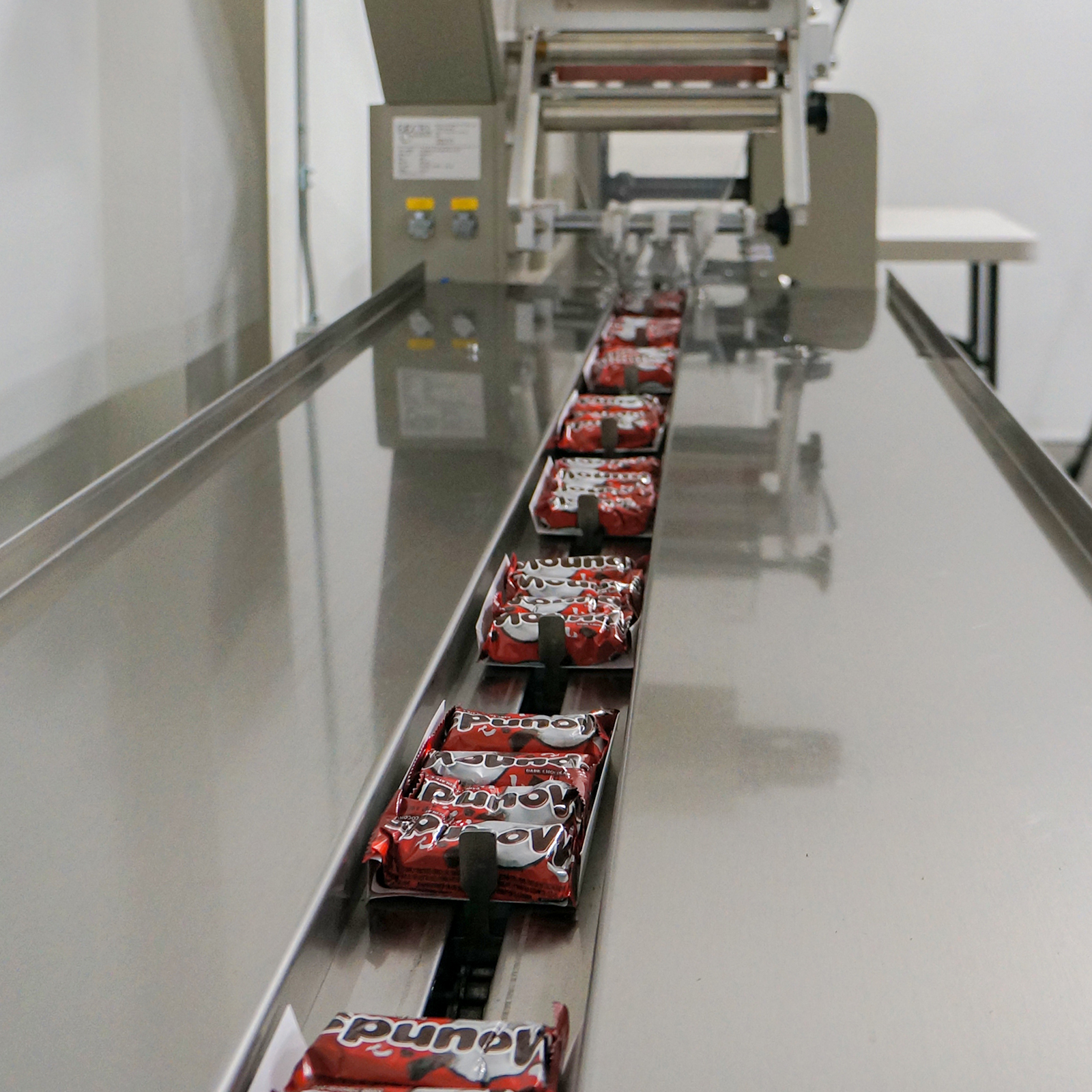

The film comes up from the bottom and the fin seal is on top. The film travels down the length of the infeed where products are loaded directly onto the film and carried through the sealing jaws which makes transferring small products simpler. A stainless steel loading table comes installed as a standard feature.

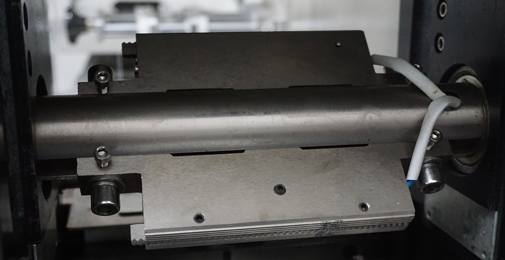

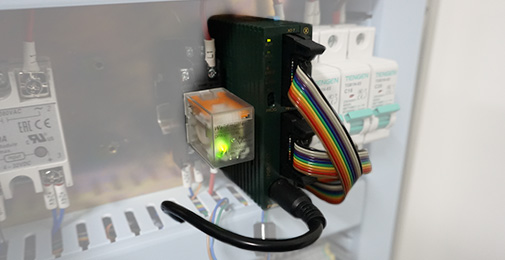

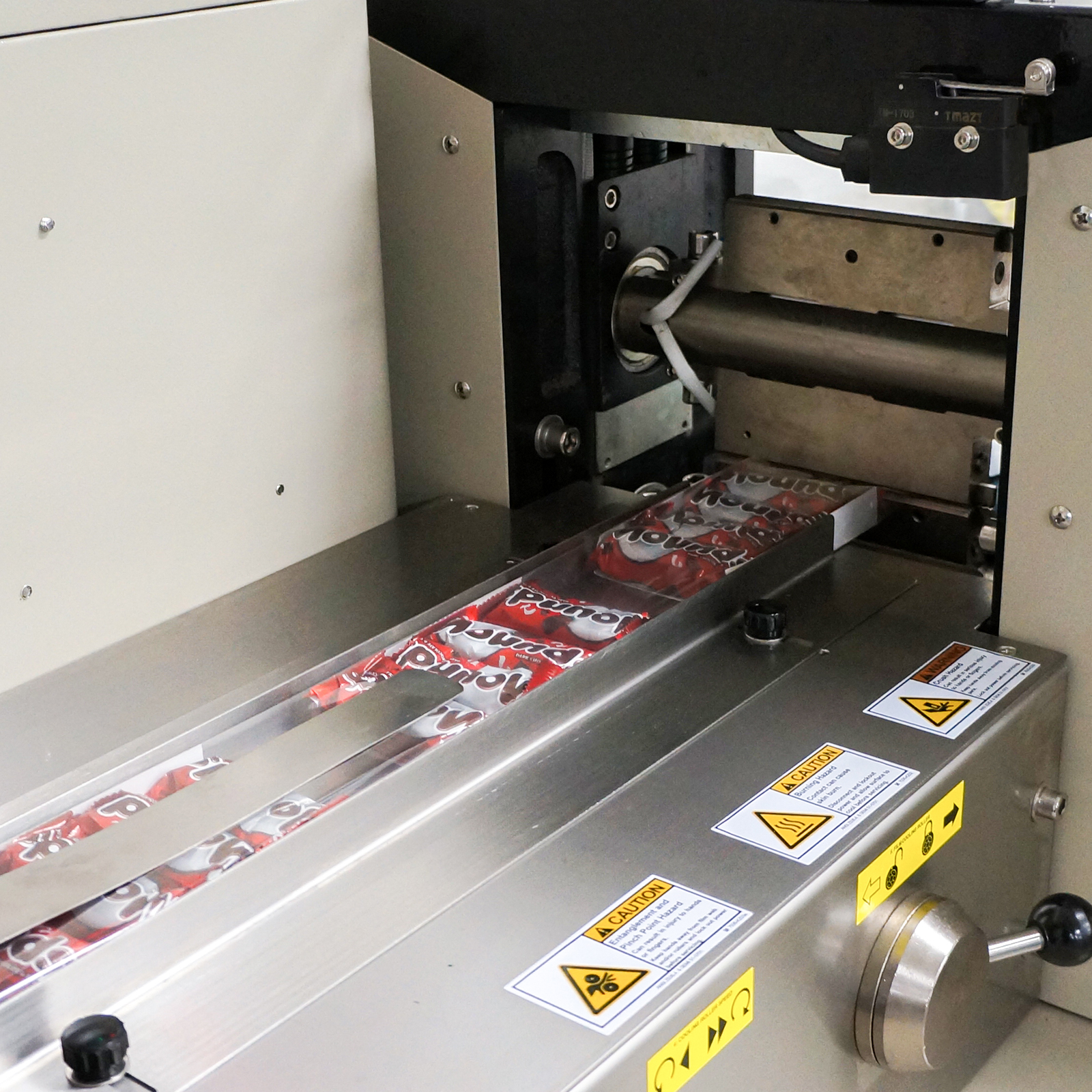

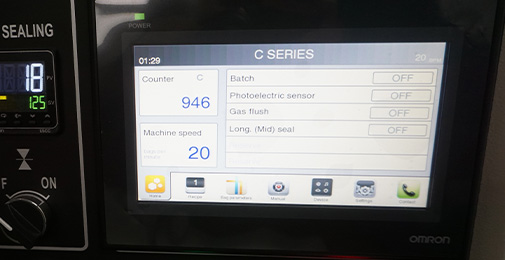

The film reel is loaded from the bottom of the machine. The reel unwind roller is synchronized with the film advance roller which eliminates the possibility of overfeeding or underfeeding of film. The end seal system which contains a knife with an anvil on the crimp jaws is synchronized with the infeed to eliminate the tendency of products to get caught between the jaws. Both systems are controlled by a PLC and inverter for a high-quality result.

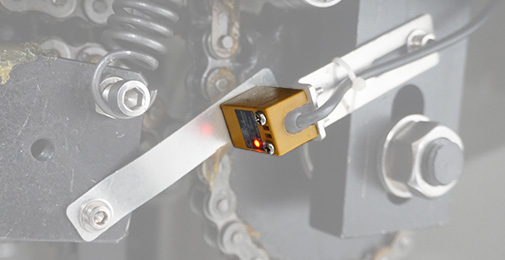

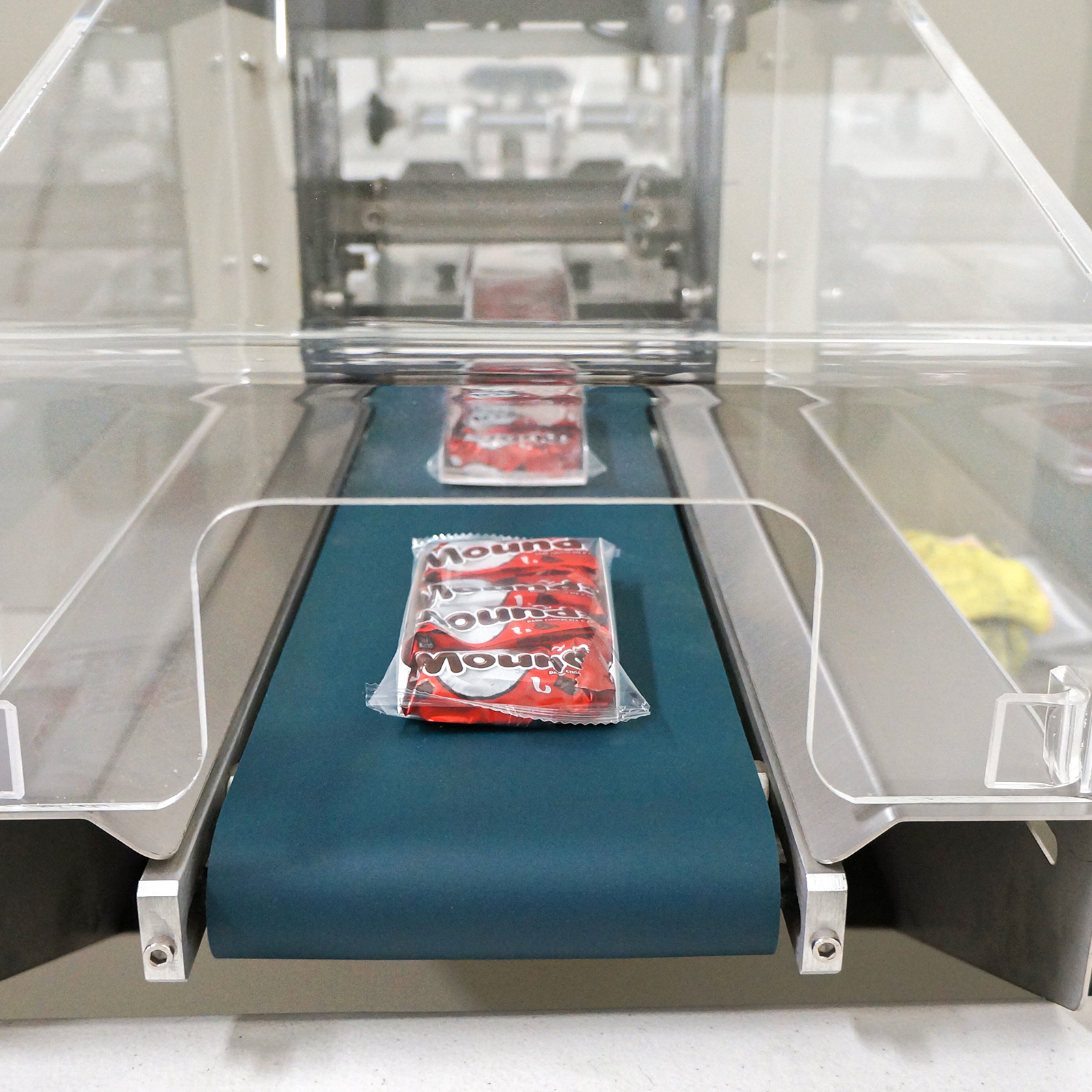

All C Series machines include safety guards as a basic accessory with an end seal jam sensor, which can detect product jams and film residue on the end seal to stop the machine from going out-of-sync from its end seal position.

The Inverted C-Series Flow Wrappers provide speeds of up to 100 PPM with a rigid chassis that was designed for much higher speeds.

Model#’s

• C250H Single Jaw
• C250H Dual Jaw
• C350H Single Jaw
• C450H Single Jaw
