Category: Carton Sealers Belt Drive: Top/Bot 4-Belt Drive

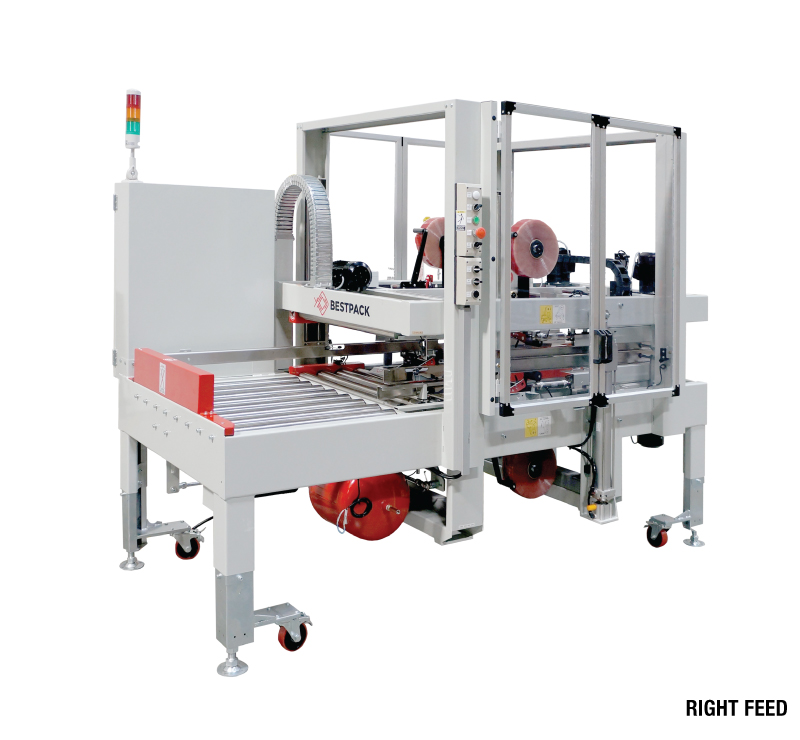

CT4E

Up to 5 Cartons/min.

No Operator Required No Operator Required
Random Cartons Random Cartons
4-Edge Seal 4-Edge Seal
110 Volts 60 Hz Power Requirements
100 PSI
10+ SCFM
Air Requirements
1,470 lbs Shipping
Weight
Description / Specifications/ Features/ Accessories/

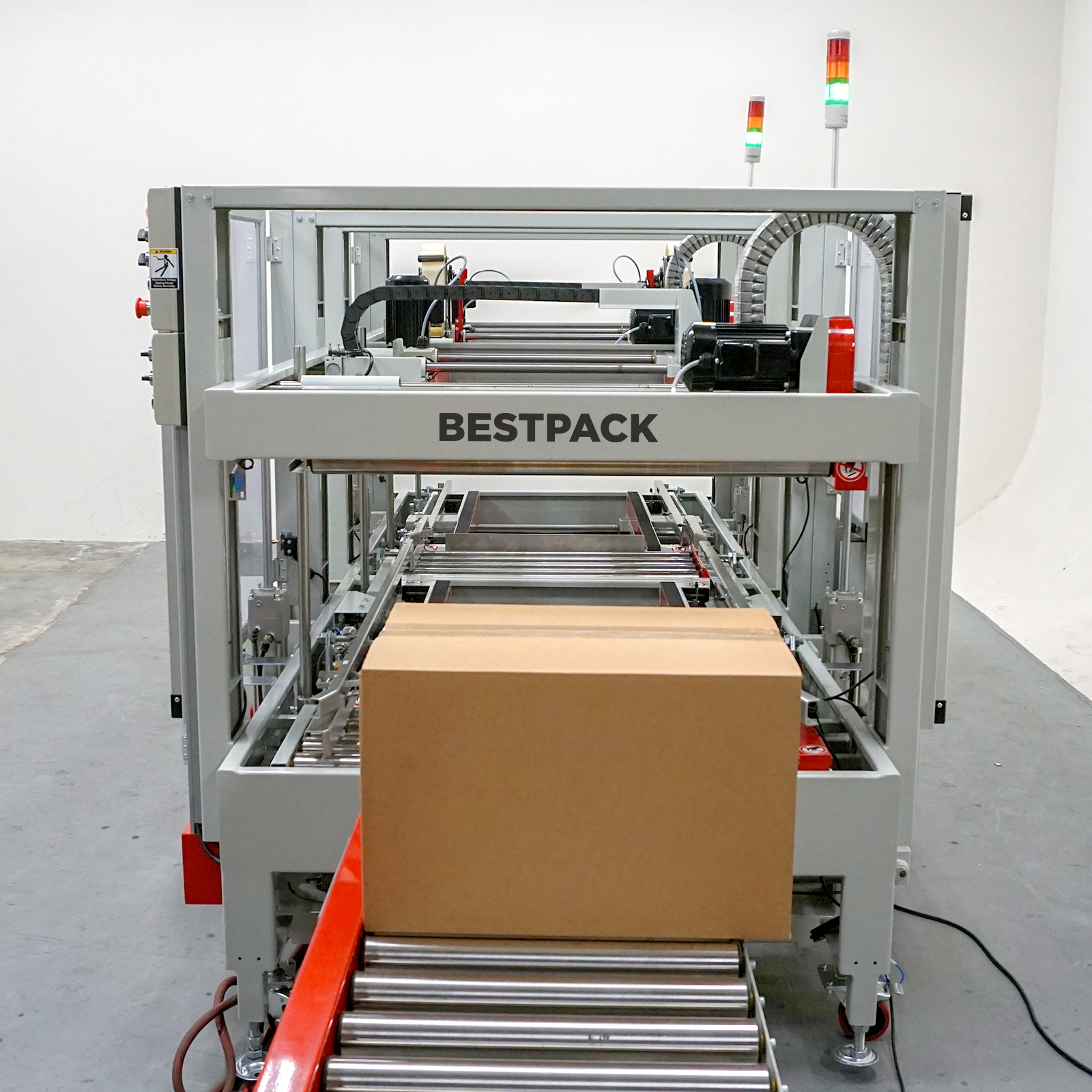

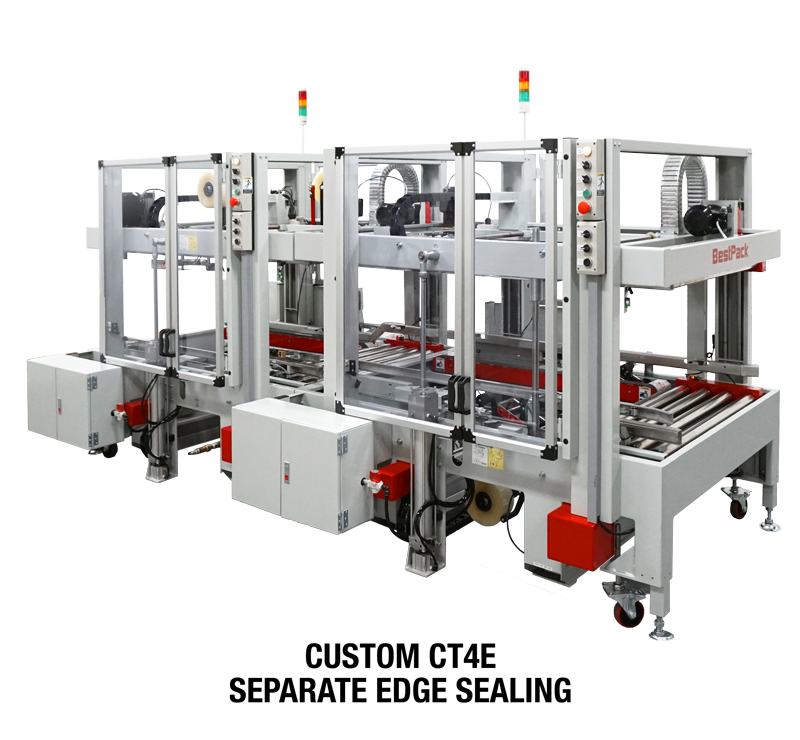

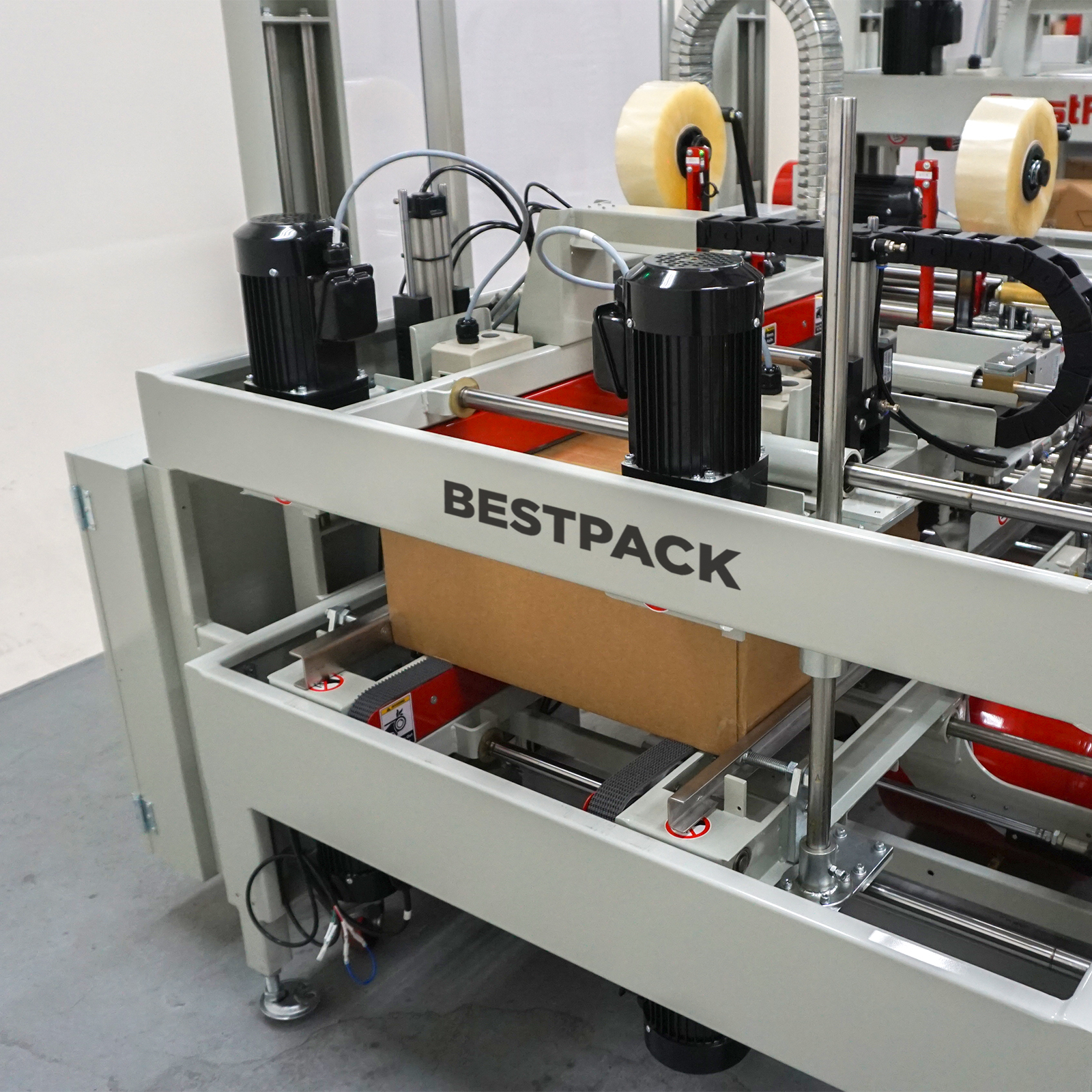

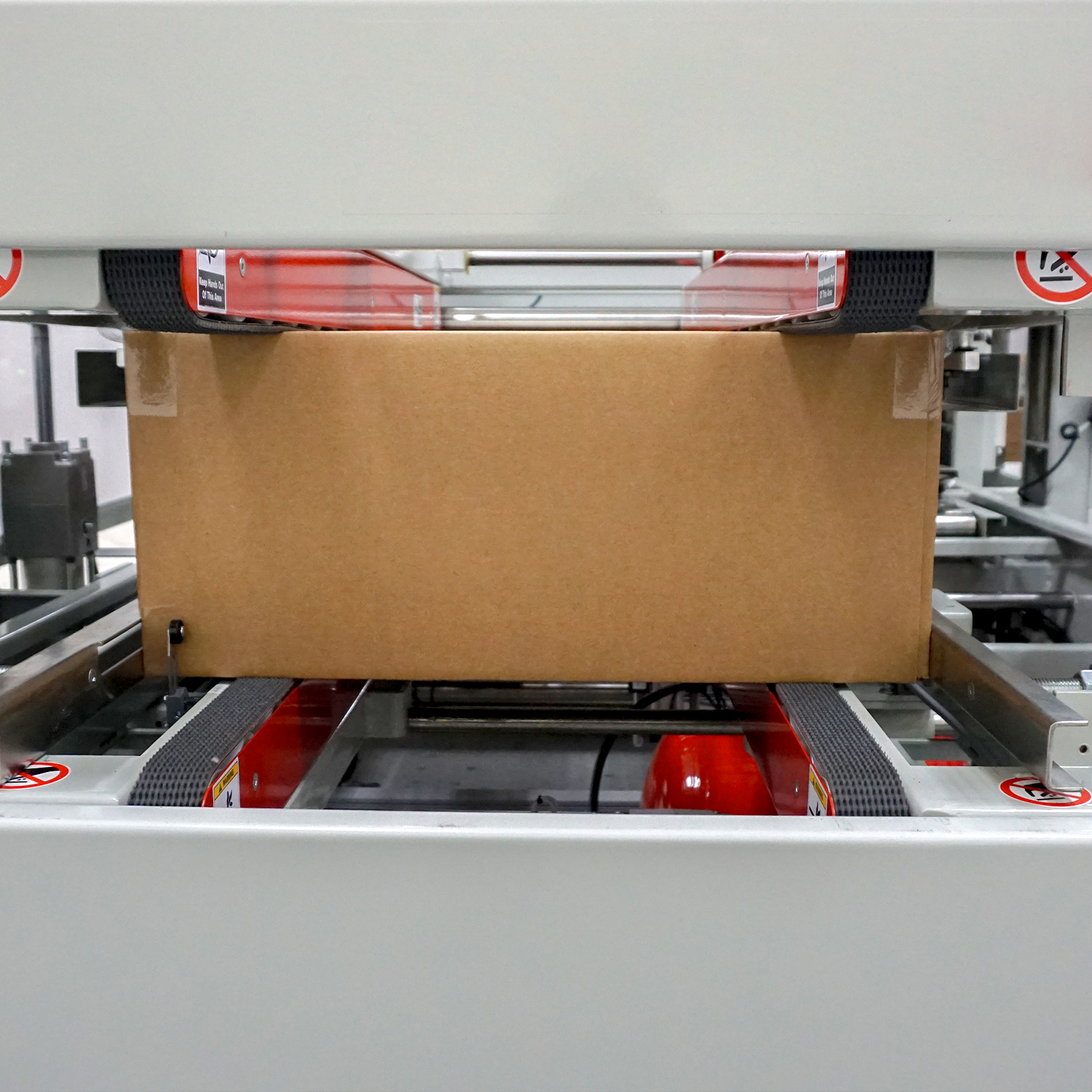

The BestPack™ CT4E Series is a fully automatic random four outer edge carton sealer. These sealers are designed to eliminate costly hand taping of the four outer edges of randomly sized cartons where pilfer proofing and protection of your product from outside environment is necessary. The unit includes a front side entry for a 90 degree directional carton turn before entering into the four edge sealing station.

The CT4E line incorporates our exclusive 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 5 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 100 PSI, 10+ SCFM
  • Shipping Weight 1,470 lbs
  • Machine Dimensions (98.43") x (53.15") x (67.32")
  • Carton Range (11.81" - 23.62") x (9.84" - 23.62") x (9.84" - 23.62")
  • Conveyor Height adjustment Determined at the time of order
  • Specifications based on Line Requires Four 3" BestPack Tape Heads

Requires Four 3" BestPack Tape Heads

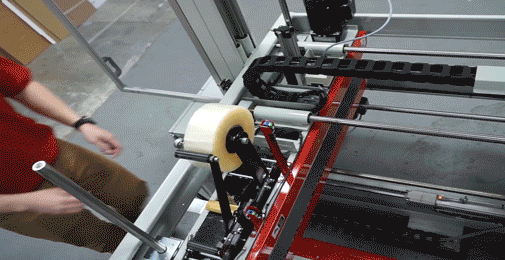

  • Exclusive Pop-out Pressure Sensitive
    Exclusive Pop-out Pressure Sensitive "High Speed" Tape Head

    with Patented Tab Adjustment and Noise Reduction Arm

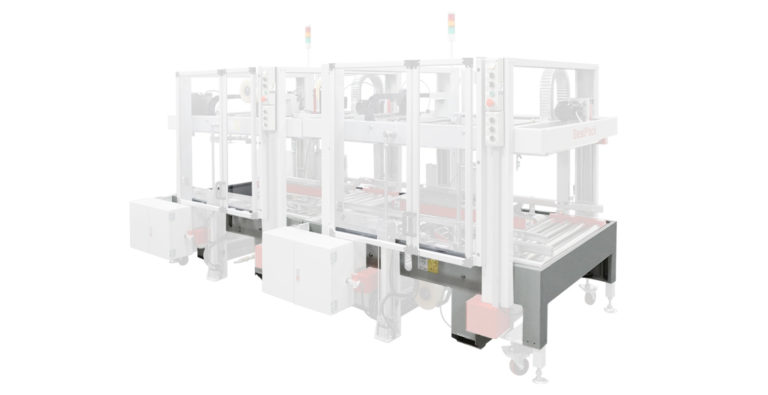

  • Heavy Duty Frame
    Heavy Duty Frame

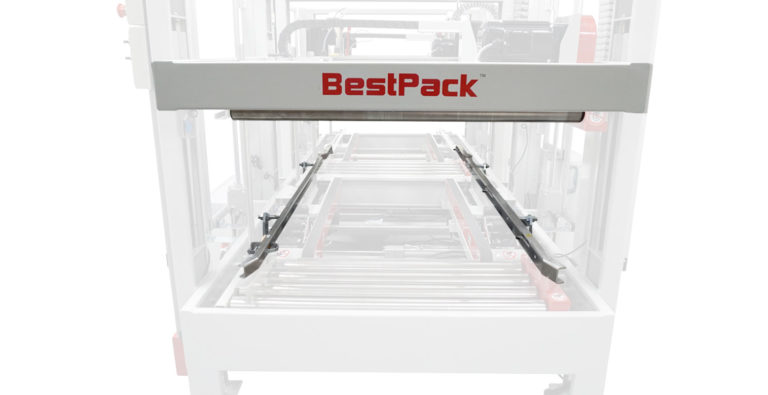

  • Random Width & Height Adjustment
    Random Width & Height Adjustment

  • Heavy Duty SMC Oil-Less Cushioned Air-Cylinder
    Heavy Duty SMC Oil-Less Cushioned Air-Cylinder

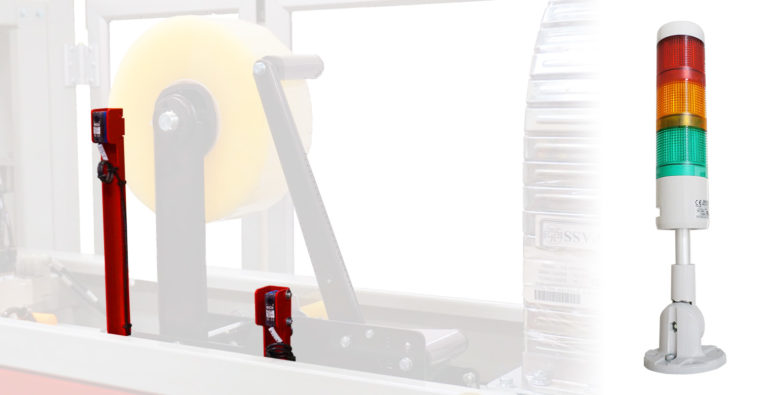

  • Low Tape/No Tape on Carton/No Cut Sensors
    Low Tape/No Tape on Carton/No Cut Sensors

    with Malfunction Alarm and Three-Colored Light

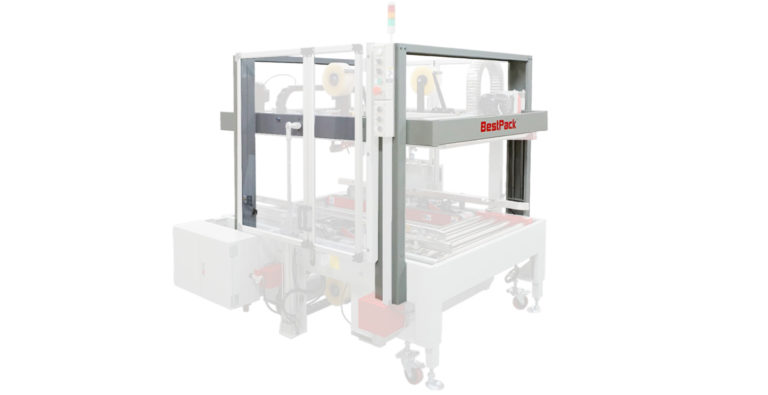

  • Heavy Duty Upper Assembly
    Heavy Duty Upper Assembly

    with Four Post System

  • Allen Bradley PLC Logic
    Allen Bradley PLC Logic

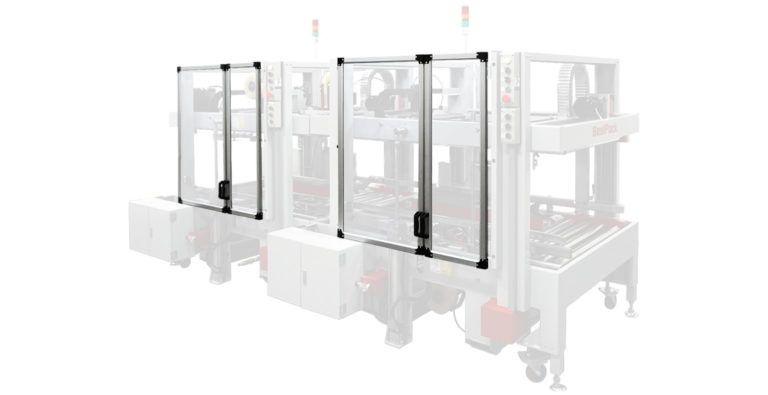

  • Interlock Safety Gates
    Interlock Safety Gates

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd. & 1,500 yd.

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

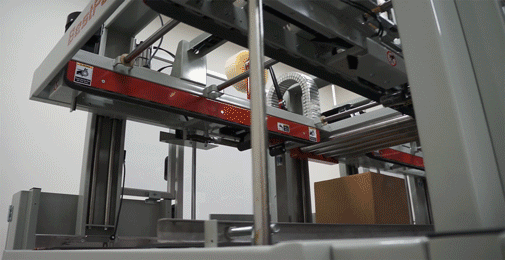

  • Corner Seal Brush Wipers
    Corner Seal Brush Wipers

    Folds tape and brushes down the corner of the machine.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!
