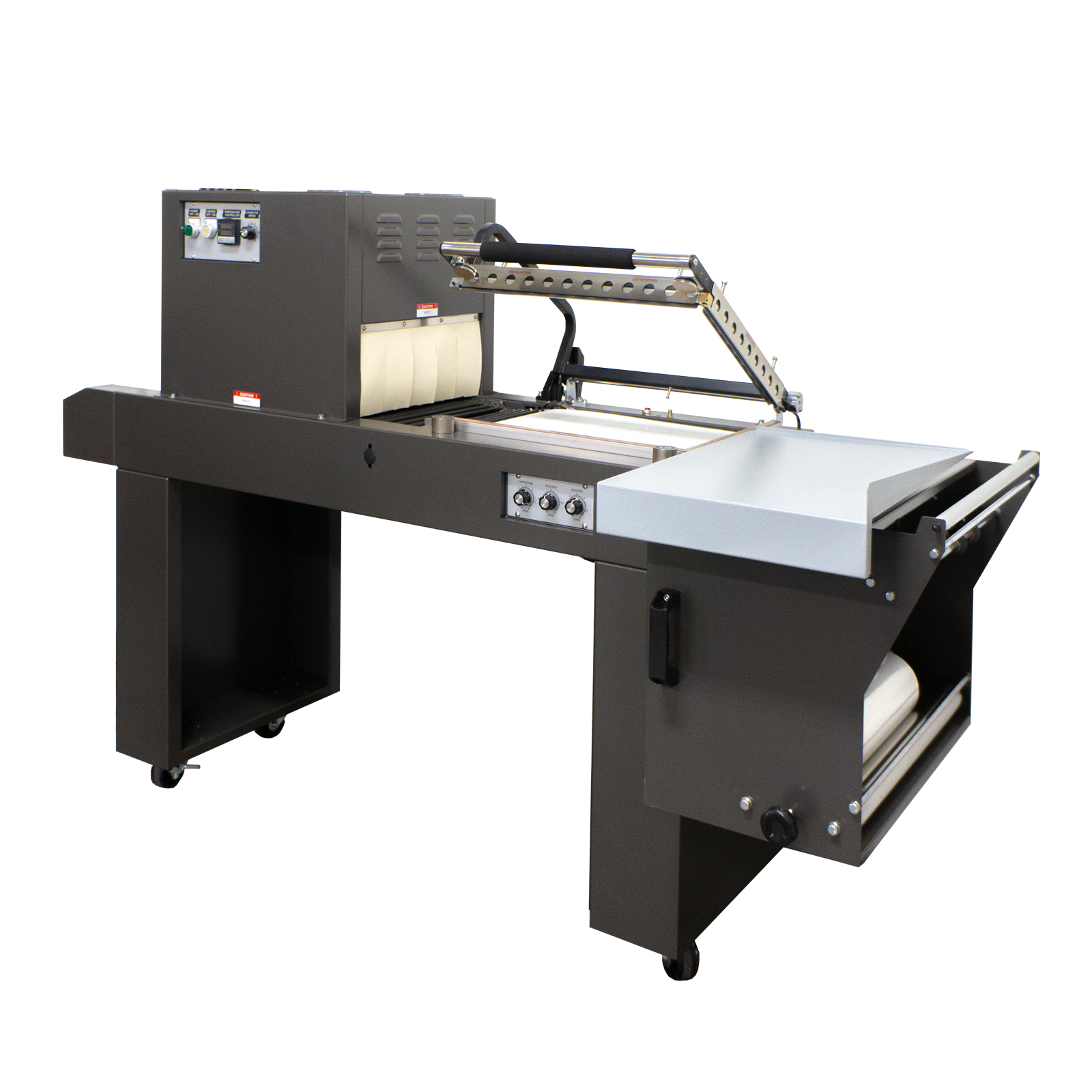

Economy L-Bar Sealer

Description / Specifications/ Features/ Accessories/

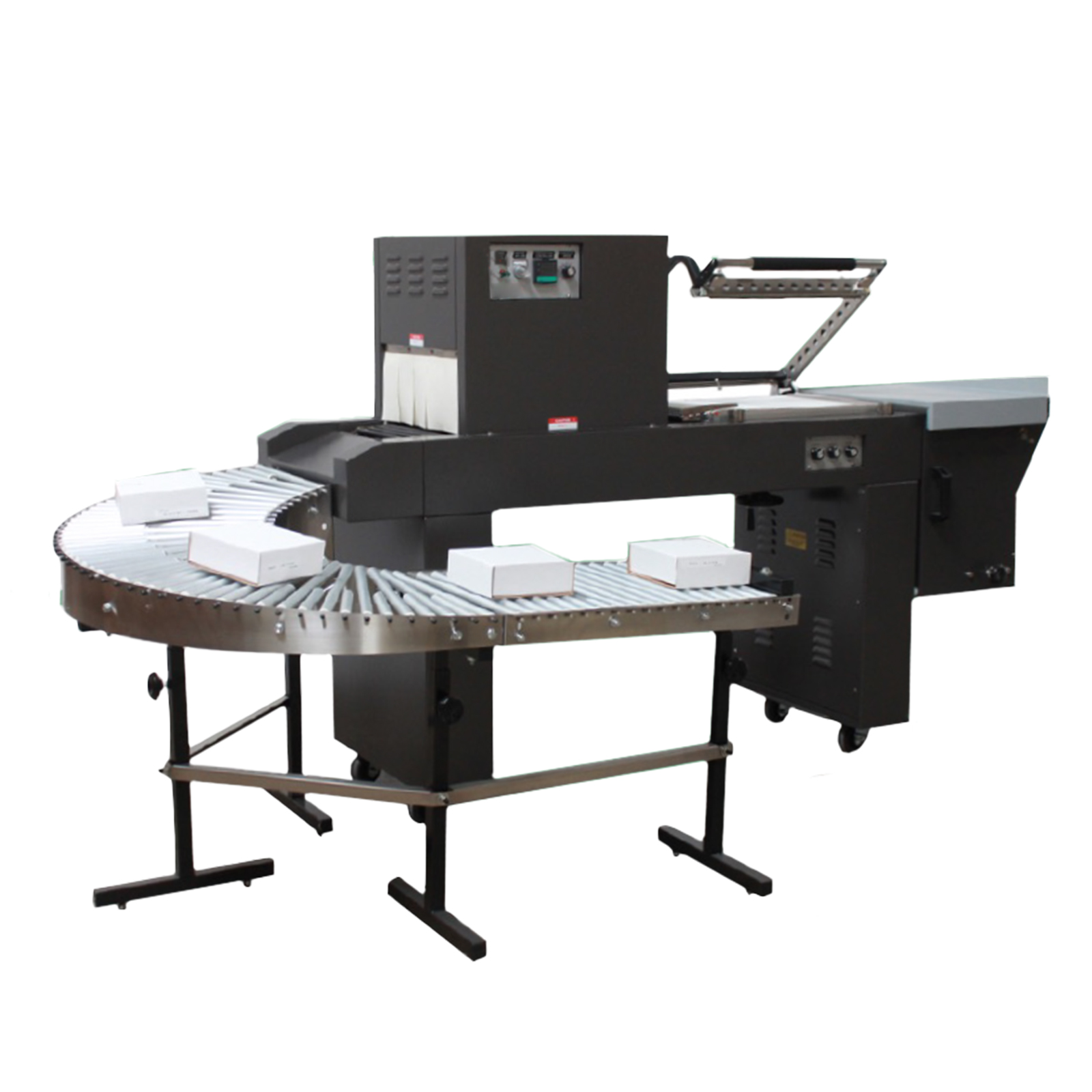

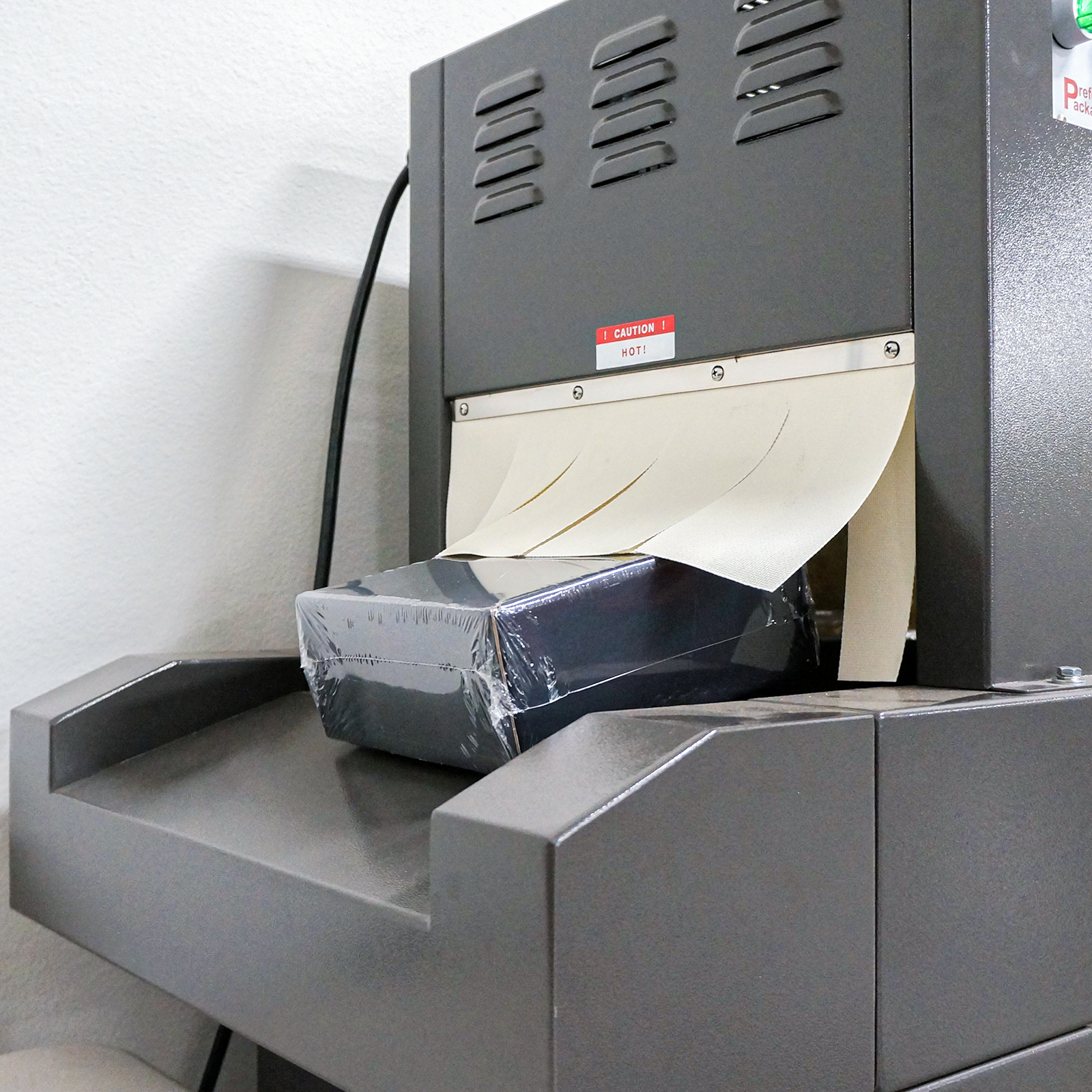

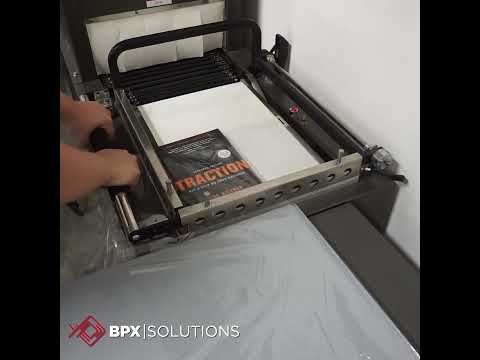

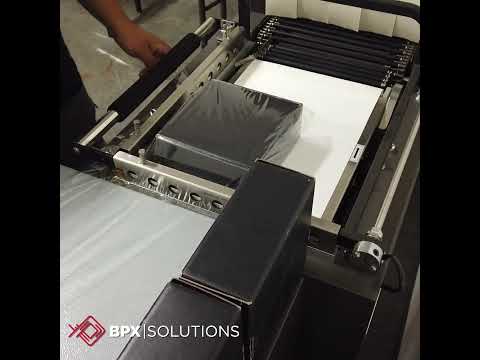

Our economy L-Bar Sealer has a magnetic hold-down and power discharge conveyor with attached Tunnel is only 76” in total length. Featuring new “Micro Knife” technology – will seal PVC or Polyolefin Shrink Films. Tunnel features Live Roller Rod Conveyor with a fully Re-Circulating Air Chamber, AC Variable Speed Conveyor, 0-60 FPM, Digital Temperature Control, and Automatic Cool Down with Shut Off. A great machine for low to medium production speeds of 8-12 packages per minute. Available in 110 volts or 220 volts. 2-Year Limited Warranty.

Model#’s

PP-1519LM – L-Bar Sealer w/Magnet Hold Down
PP-1519LMC – L-Bar Sealer w/Magnet Hold Down & Power Discharge Conveyor
PP-1519EC-110v – L-Bar Sealer/Tunnel Combo – 110v
PP-1519ECM-110v/220v – L-Bar Sealer/Tunnel Combo w/Magnets -110v/220v
PP-1519ECMC-110v/220v – L-Bar Sealer/Tunnel Combo w/Magnets & Takeaway Conveyor – 6″ height – 110v/220v
PP-1519ECMC-8-220v – L-Bar Sealer/Tunnel Combo w/Magnets & Takeaway Conveyor – 8″ height – 220v

Speed Up to 8 - 12 Packages/Min.
Power Requirements 220 Volt 15 AMP
Air Requirements N/A
Shipping Weight 460 lbs.
Machine Dimensions (76.0") x (26.0") x (50.0")
Carton Range (15.0" x 19.0")
Phase 1
Specifications based on Line Specifications based on PP-1519 ECMC

Specifications based on PP-1519 ECMC

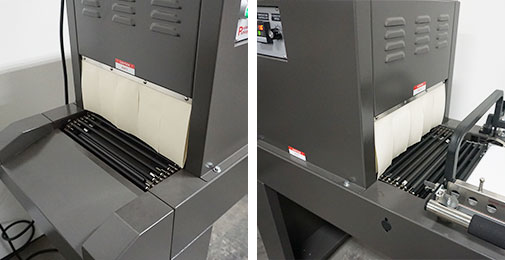

Fully Re-Circulating Air Chambers

Shrink Tunnel Features

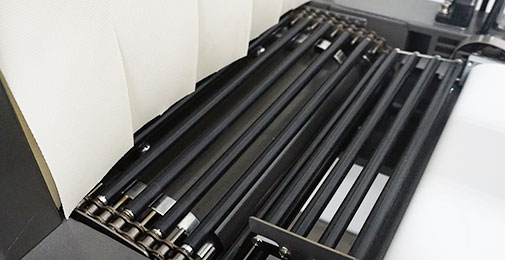

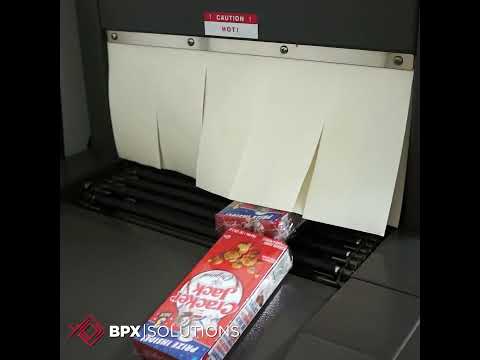

Live Roller Rod Conveyor

Shrink Tunnel Features

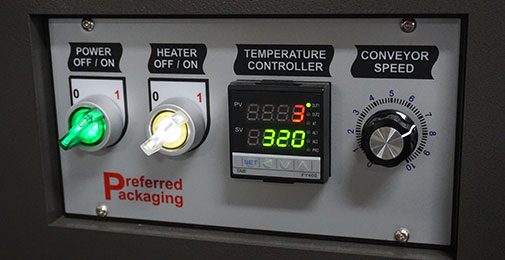

Digital Temperature Control 0 - 400 degrees

Shrink Tunnel Features

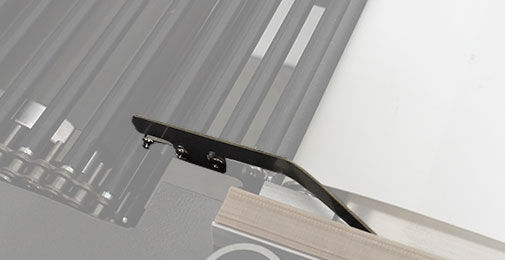

Anti-Jam Safety Feature on Conveyor

Shrink Tunnel Features

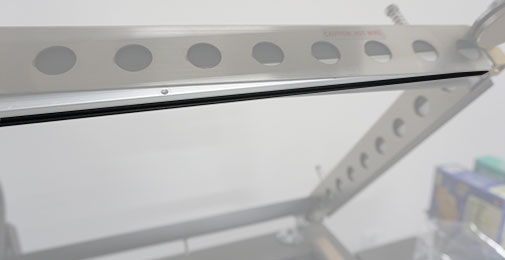

Single Piece Teflon Band Ribbon with Round Corner Seal - Reduces Dog Ears

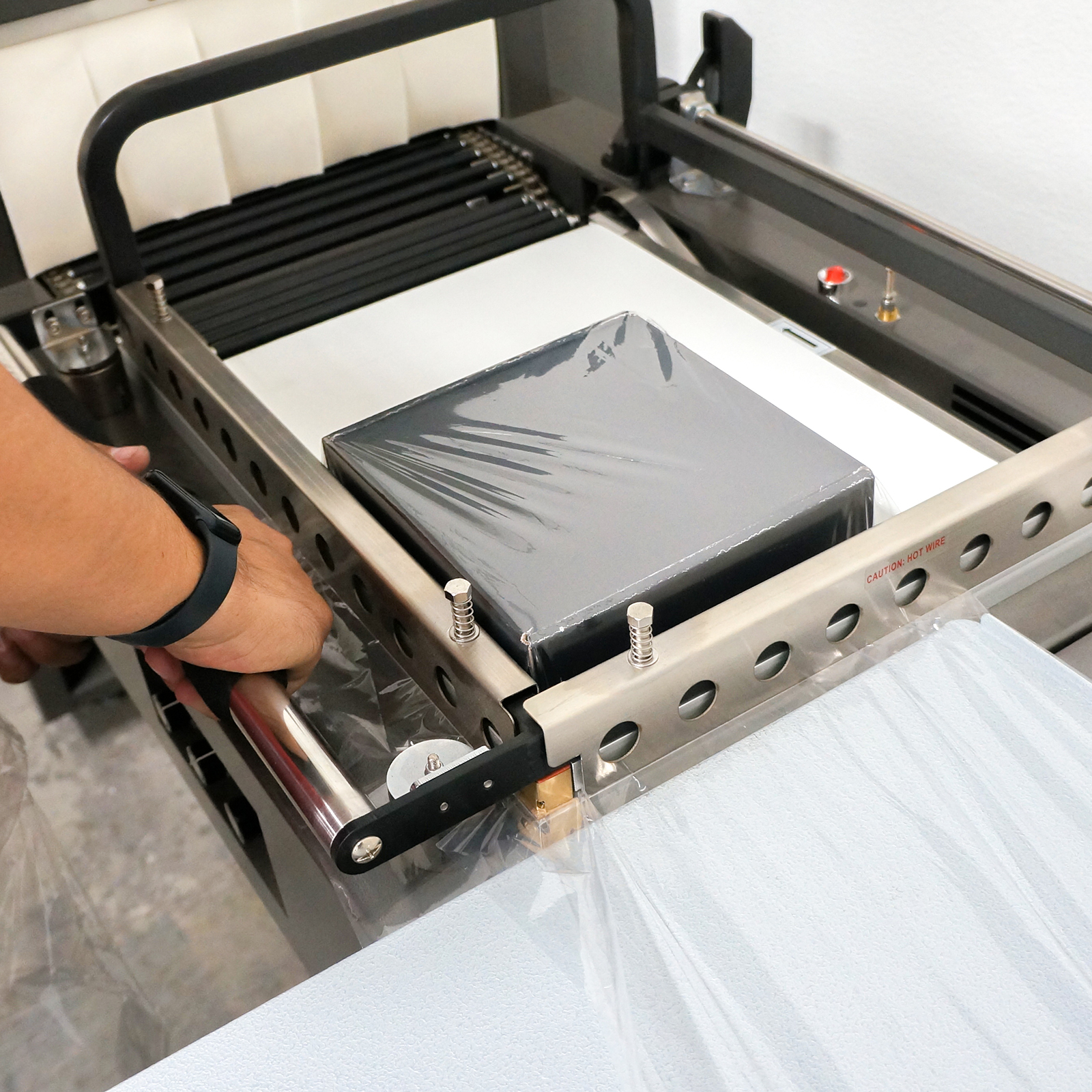

"Micro Knife" Technology

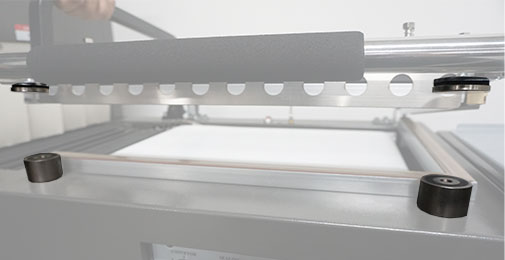

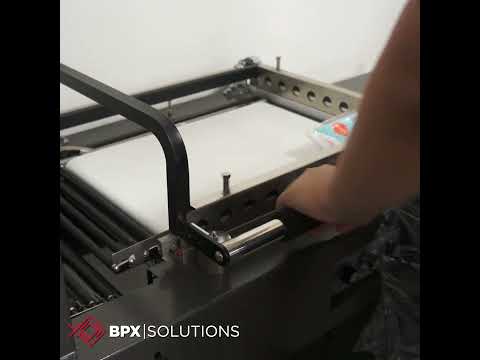

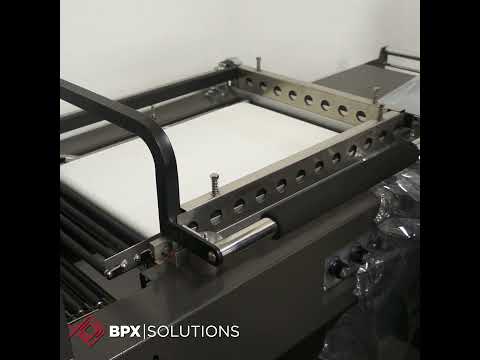

Dual Magnet Hold Down & Power Discharge Conveyor

"Micro Knife" Technology

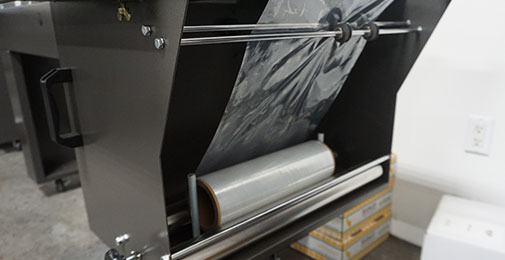

Easy Load Film Rack

Pin Wheel Hole Punch

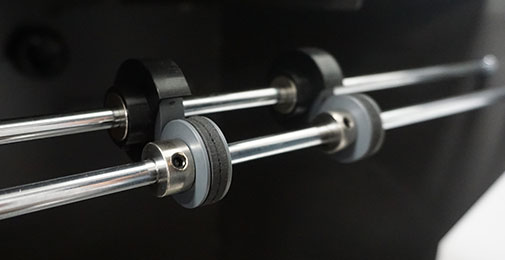

Multiple Pin Wheels Provide Air Evacuation

Pin Wheel Hole Punch

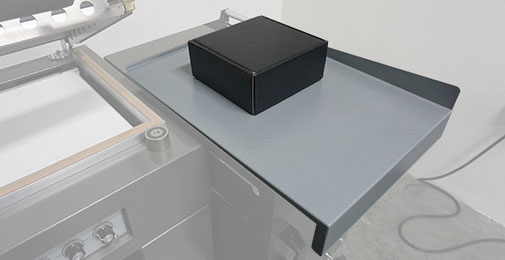

Adjustable Product Loading Tray

Pin Wheel Hole Punch
