Category: Carton Erectors Belt Drive: Side Belt Drive

ELVS (Legacy)

Up to 15 Cartons/min.

Fully Automatic Fully Automatic
Uniform Cartons Uniform Cartons
Bottom Seal Bottom Seal
110V 60 Hz
20 AMP
POWER
REQUIREMENTS
80 PSI, 10 SCFM AIR
REQUIREMENTS
1,800 LBS SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

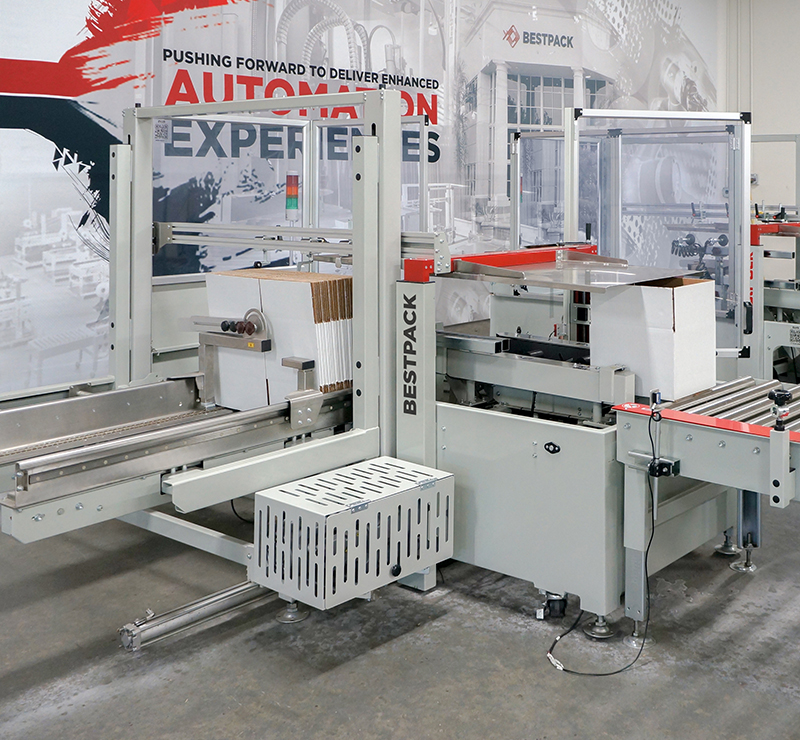

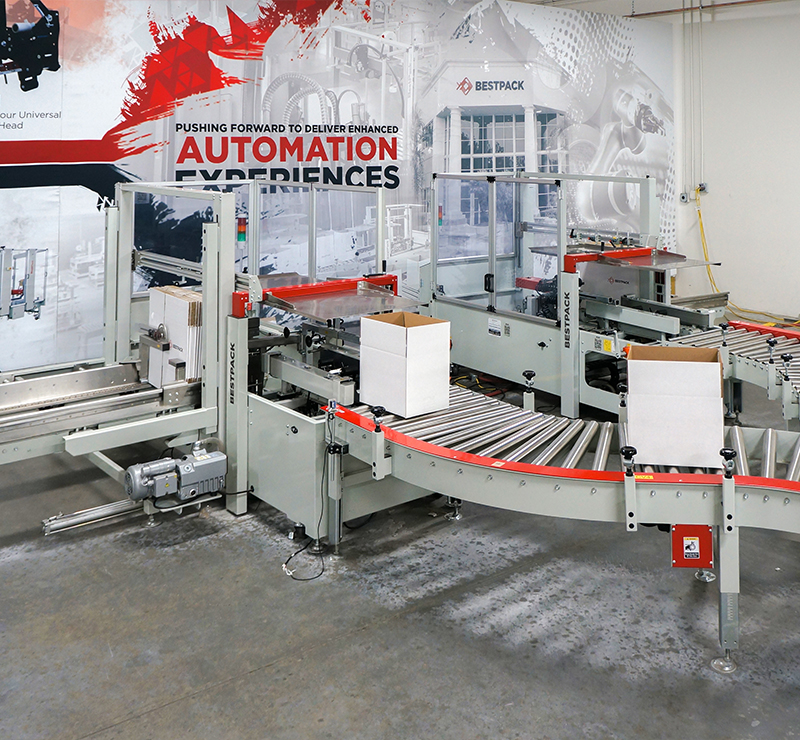

The BestPack™ Model ELVS is an innovative, high-performance carton erector/sealer. This erector is built for heavy usage with quick and simple carton size changeover. There are no tools required for carton size changeover. The ELVS handles a wide range of carton sizes.

Our ELVS erector line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz - 20 AMP
  • Air Requirements 80 PSI, 10 SCFM
  • Shipping Weight 1,800 lbs.
  • Machine Dimensions (100.8") x (83.0") x (64.3")
  • Carton Range (8.0" - 25.0") x (5.0" - 20.0") x (3.0" - 21.5")
  • Trip Current (A) 20
  • FLA 15
  • Conveyor Height adjustment (25.5" - 31.5")
  • Phase 1
  • SCCR (KA) 10
  • Max Current (A) 17
  • Power (W) 1650
  • Specifications based on Line Specifications based on ELVSL22-2H

Specifications based on ELVSL22-2H

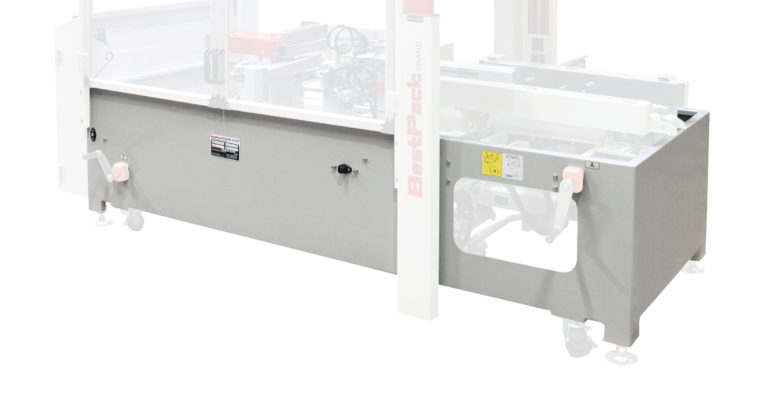

  • Heavy Duty 3mm Welded Frame
    Heavy Duty 3mm Welded Frame

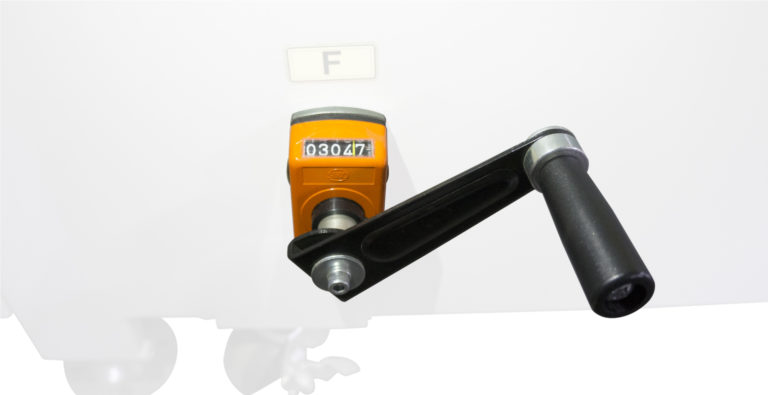

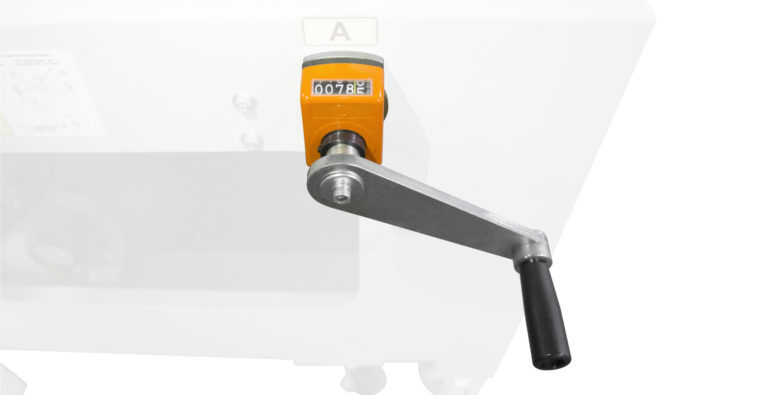

  • Size Adjustment Screw Drive Counter
    Size Adjustment Screw Drive Counter

    For the Hopper Height Position and Carton Width

  • Size Adjustment Screw Drive Counter
    Size Adjustment Screw Drive Counter

    For the Carton Length

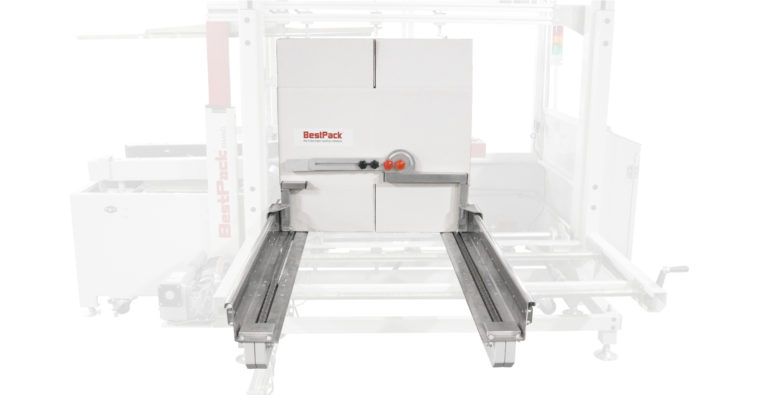

  • Power Feed Hopper
    Power Feed Hopper

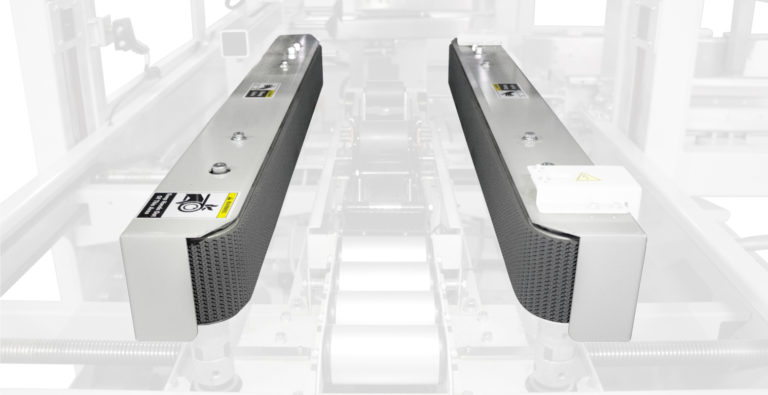

  • Side Belt Drive
    Side Belt Drive

    with High Speed Motors

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

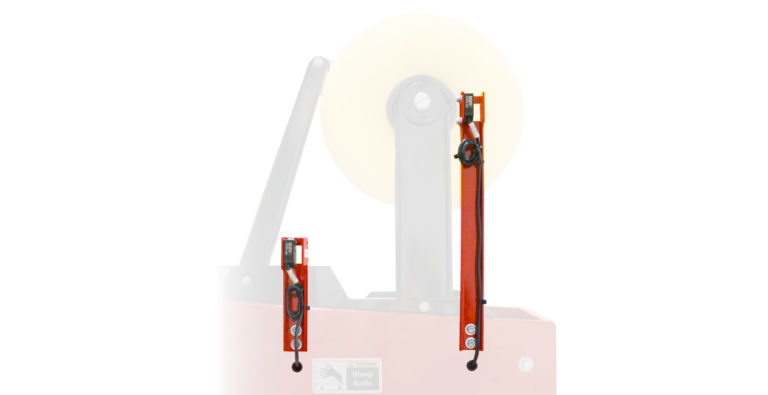

  • Low Tape/No Tape on Carton/No Cut Sensors
    Low Tape/No Tape on Carton/No Cut Sensors

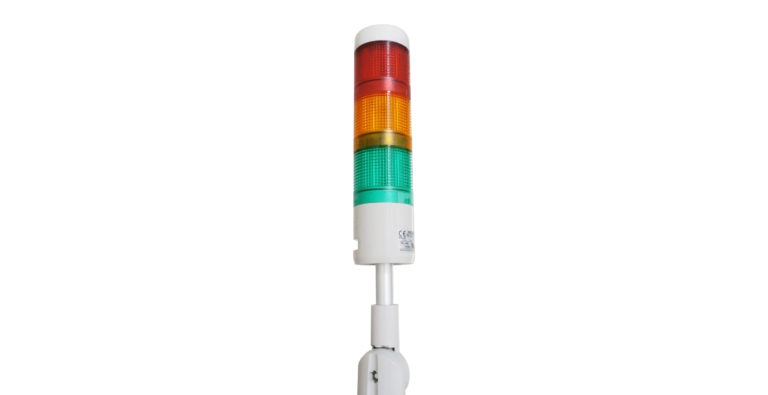

  •  Malfunction Alarm
    Malfunction Alarm

    with Three-colored Light

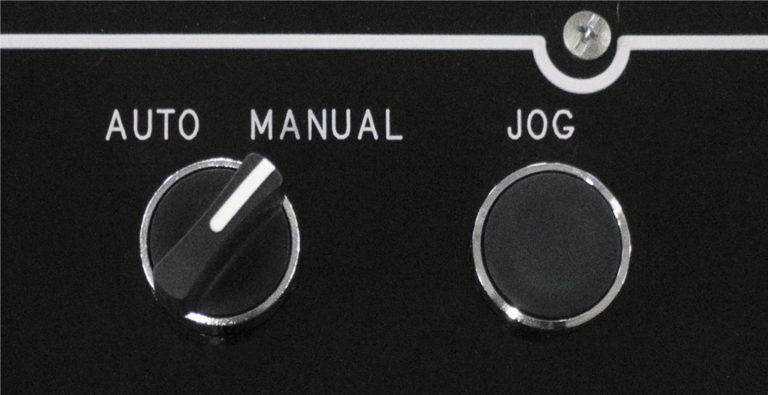

  • Manual Jog Button
    Manual Jog Button

    for Step-by-step Activation of All Movements

  • SMC Maintenance Free, Oil-less Air Cylinder
    SMC Maintenance Free, Oil-less Air Cylinder

    with Air Cushion

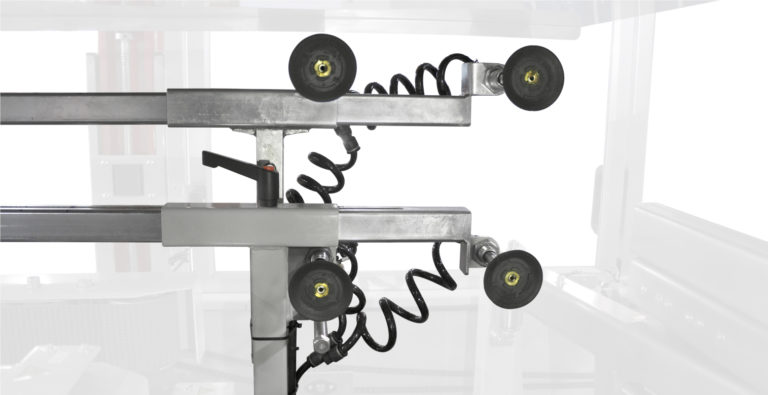

  • Vacuum Pump Suction Cup System
    Vacuum Pump Suction Cup System

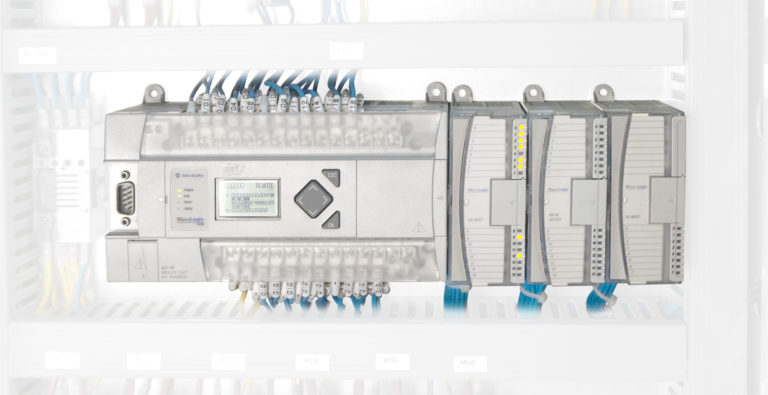

  • Allen Bradley PLC Controls
    Allen Bradley PLC Controls

    w/ Ethernet Capabilities

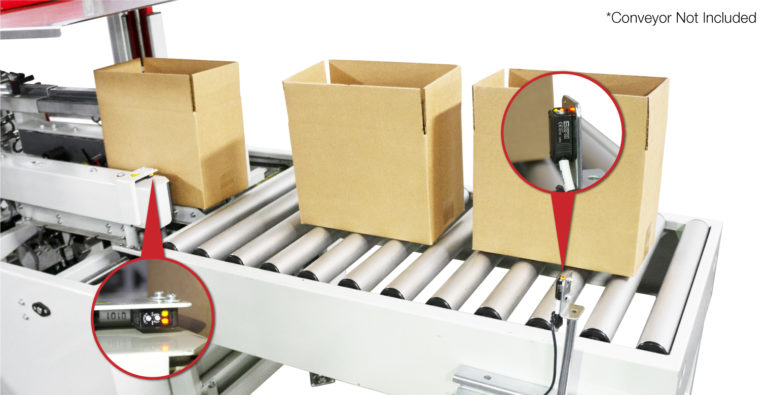

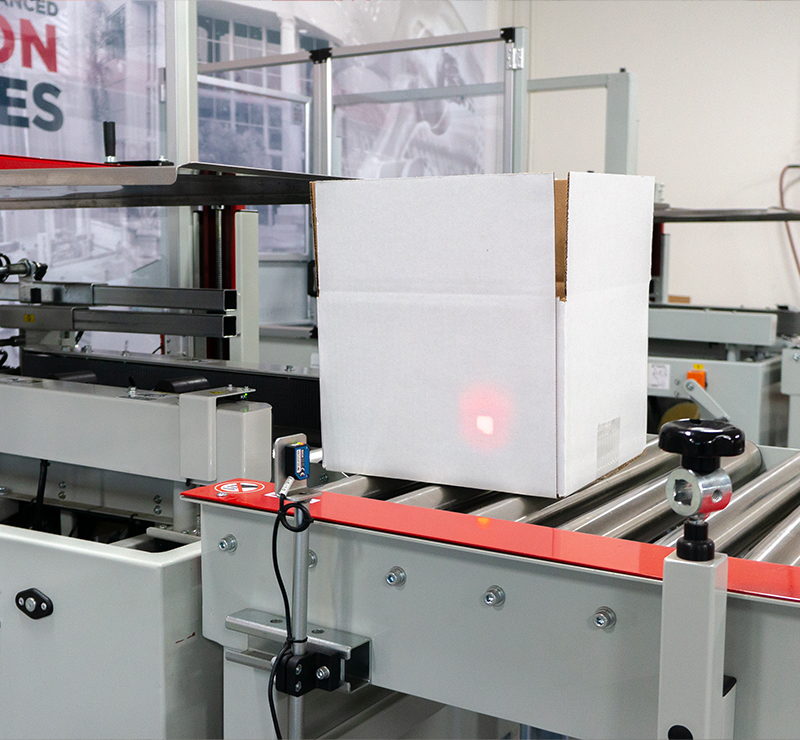

  • Carton on Demand Logic
    Carton on Demand Logic

    conveyor not included

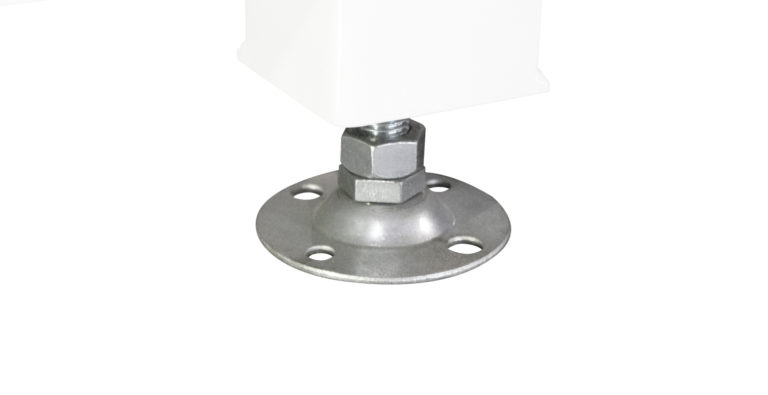

  • Heavy-Duty Peg Legs
    Heavy-Duty Peg Legs

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
