Category: Semi-Automatic Shrink Equipment

Heavy Duty L-Bar Sealers

Heavy Duty, Rapid Cycle L-Bar Sealer

Semi-Automatic Semi-Automatic
Medium Speed Medium Speed
Shrink Wrapped Packages Shrink Wrapped Packages
220 VOLTS
1 Phase 15 AMP
POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
380 lbs. SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

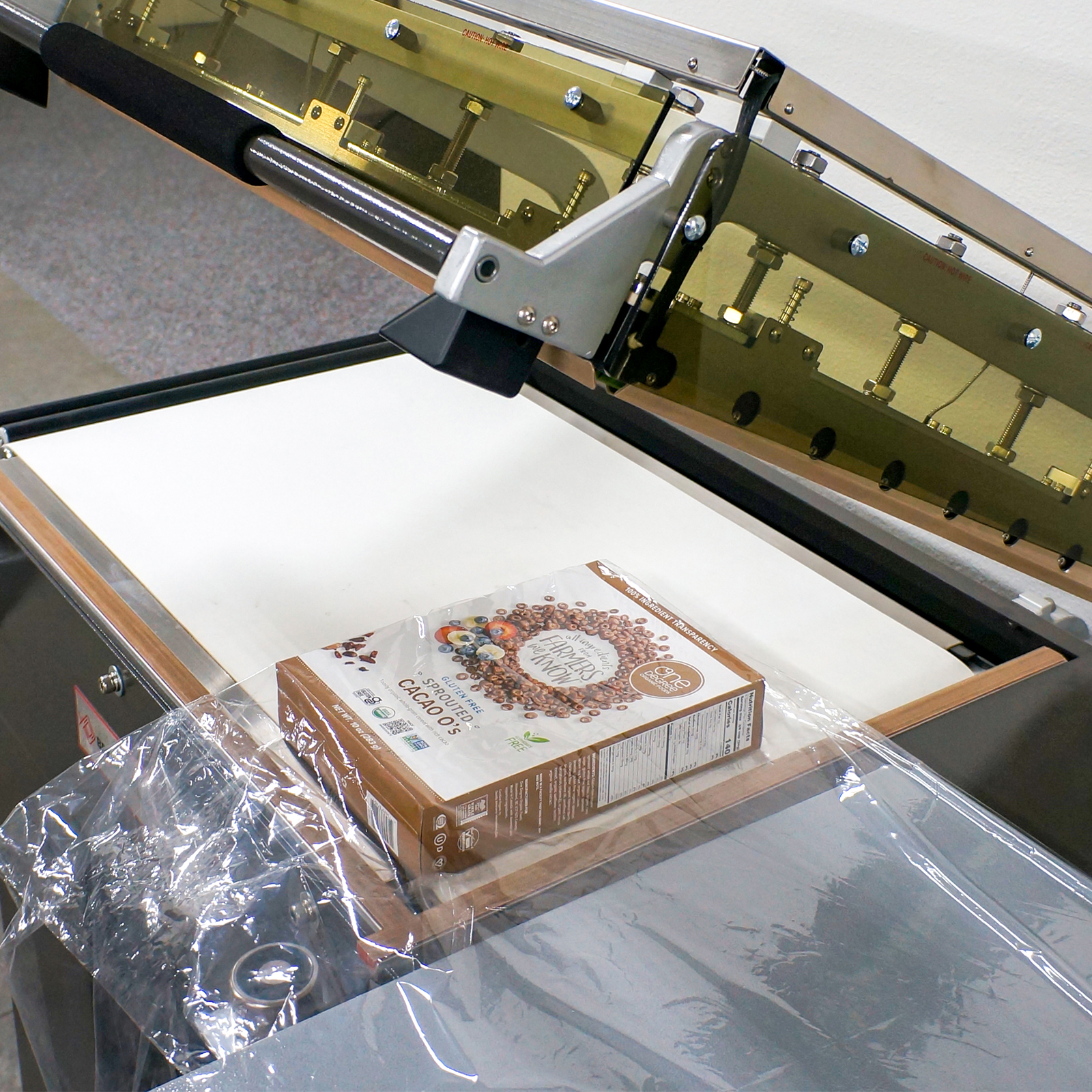

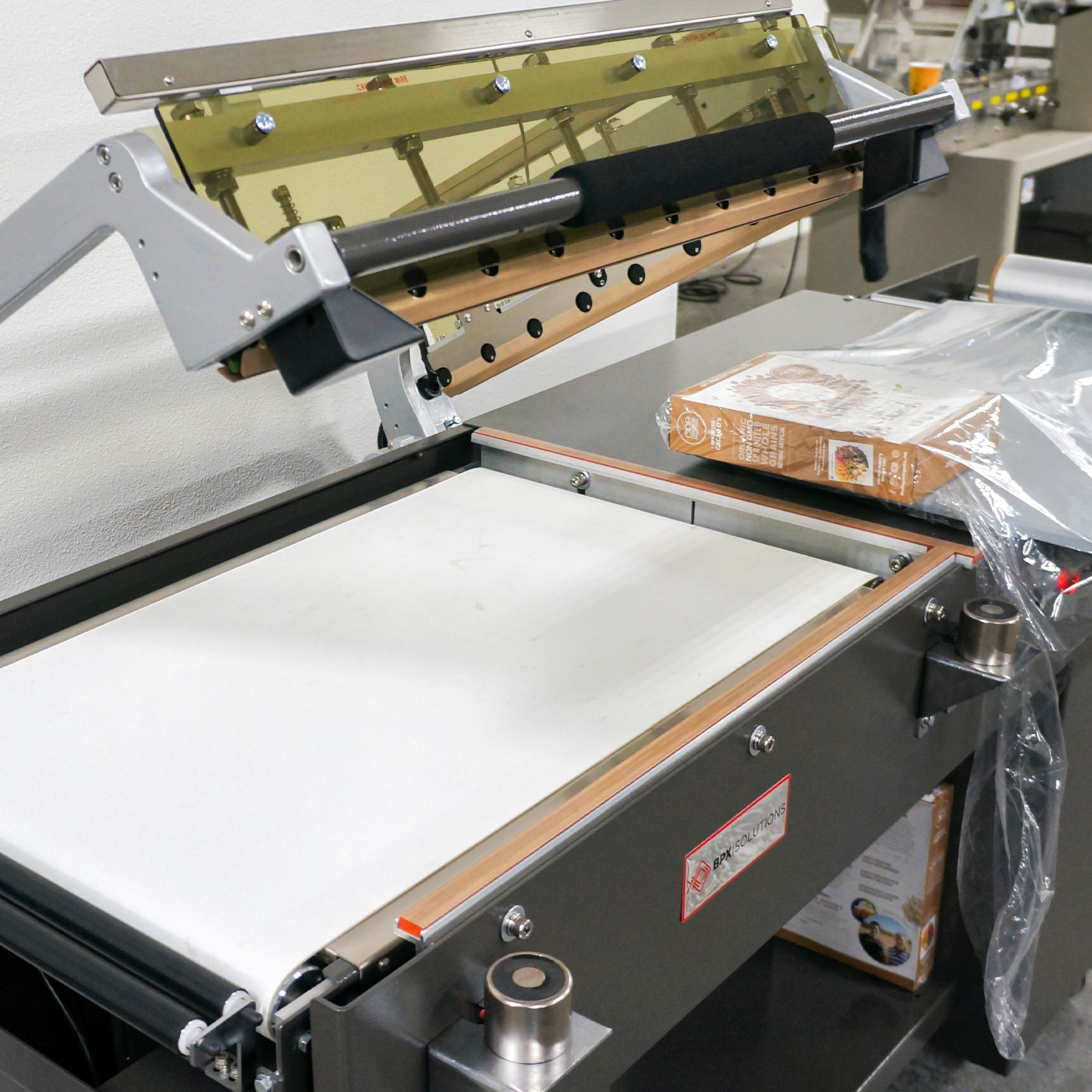

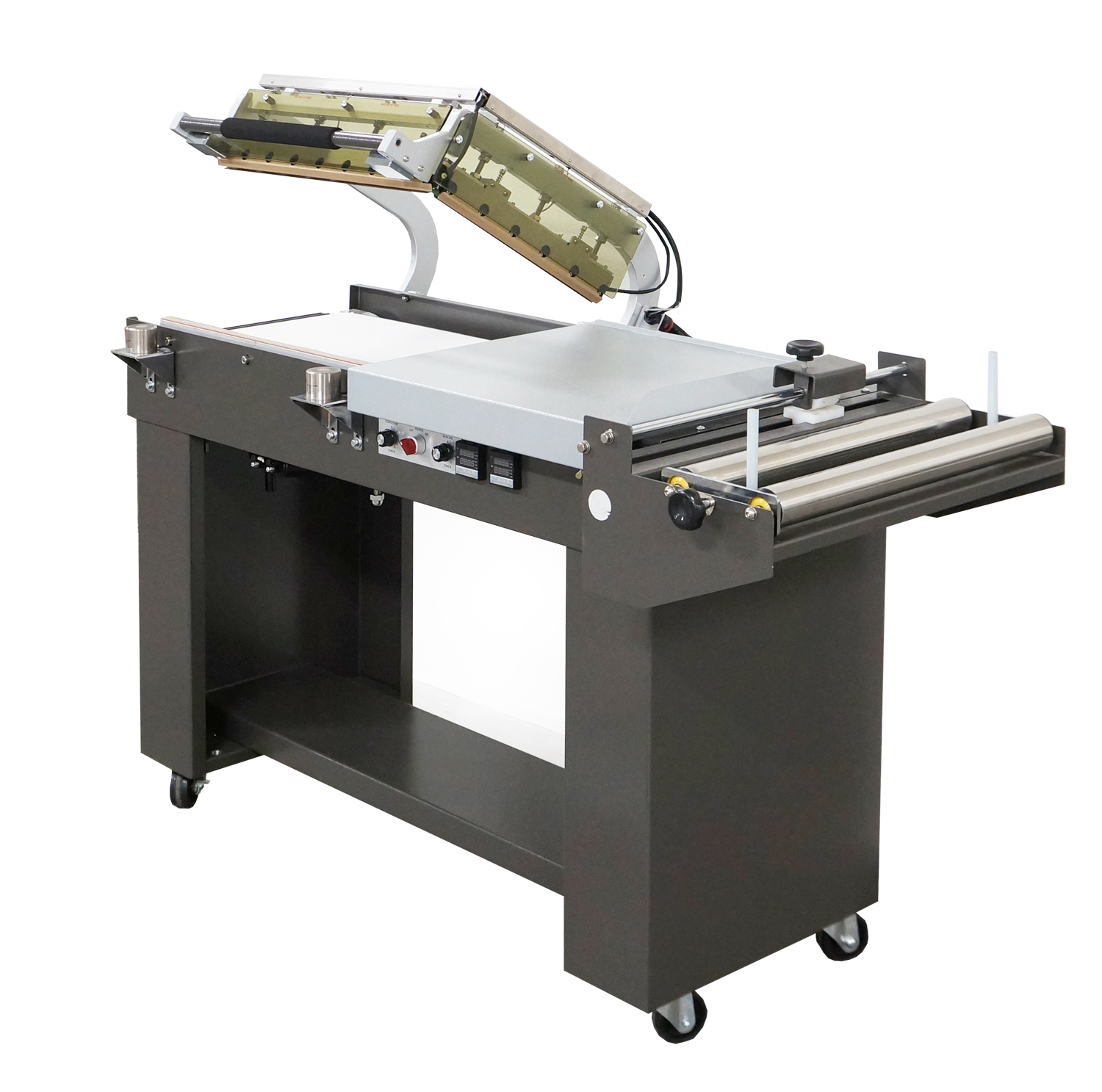

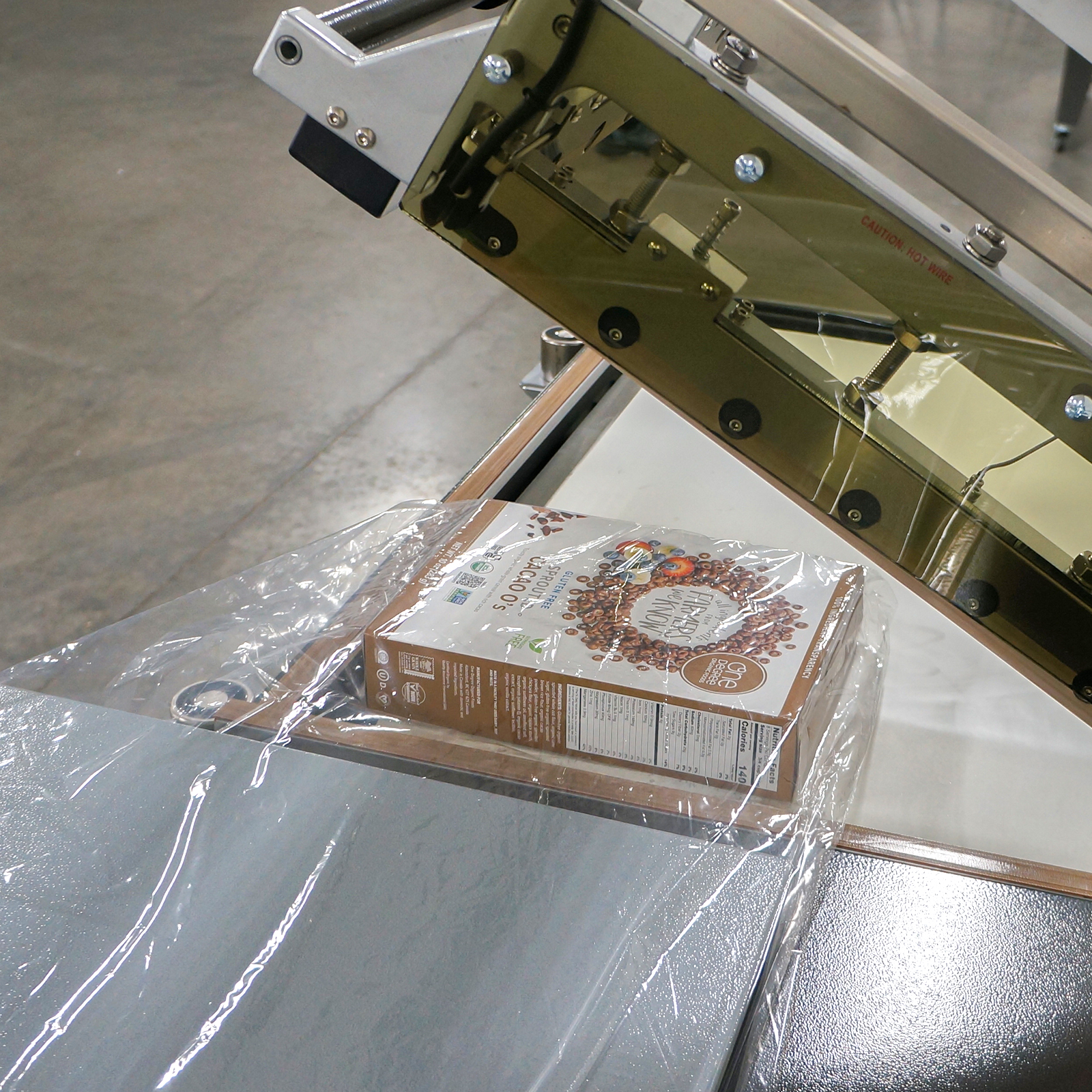

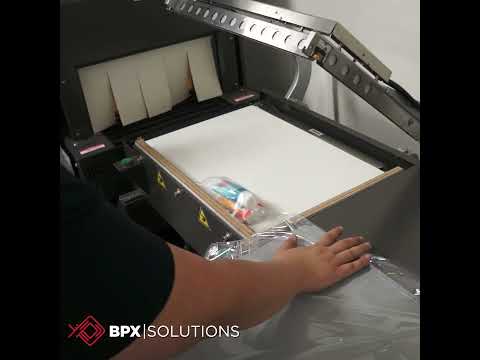

The Heavy Duty L-Bar Sealer (16”W x 22”L Seal Area) is a production-based unit designed to be run 2 shifts per day if needed. With its heavy-duty frame construction, cast aluminum seal head, and Hot Knife Seal Technology you will get years of use with minimal repairs. This machine is capable of operating at speeds of 10-15 PPM.

Model#’s

  • PP-1622MK – L-Bar Sealer w/Micro Knife
  • PP-1622W – L-Bar Sealer w/Wire
  • PP-1622HK – L-Bar Sealer w/Hot Knife
  • PP-2028MK – L-bar Sealer w/Micro Knife
  • PP-2028W – L-Bar Sealer w/Wire
  • PP-2028HK – L-Bar Sealer w/Hot Knife
  • PP-3040W – L-Bar Sealer w/Wire
  • PP-1622MK-Combo – L-Bar Sealer/Tunnel Combo
  • PP-1622MKA-Combo – L-Bar Sealer/Tunnel Combo w/Air Operated Seal Bar
  • Speed Up to 15 Packages/Min.
  • Power Requirements 220 Volt 15 AMP
  • Shipping Weight 380 lbs.
  • Machine Dimensions (64.0") x (27.0") x (39.0")
  • Carton Range W: 22.0" x H: 16.0"
  • Phase 1
  • Specifications based on Line Specifications based on PP-1622HK

Specifications based on PP-1622HK

  • Hot Knife - Teflon Coated Steel Blades
    Hot Knife - Teflon Coated Steel Blades

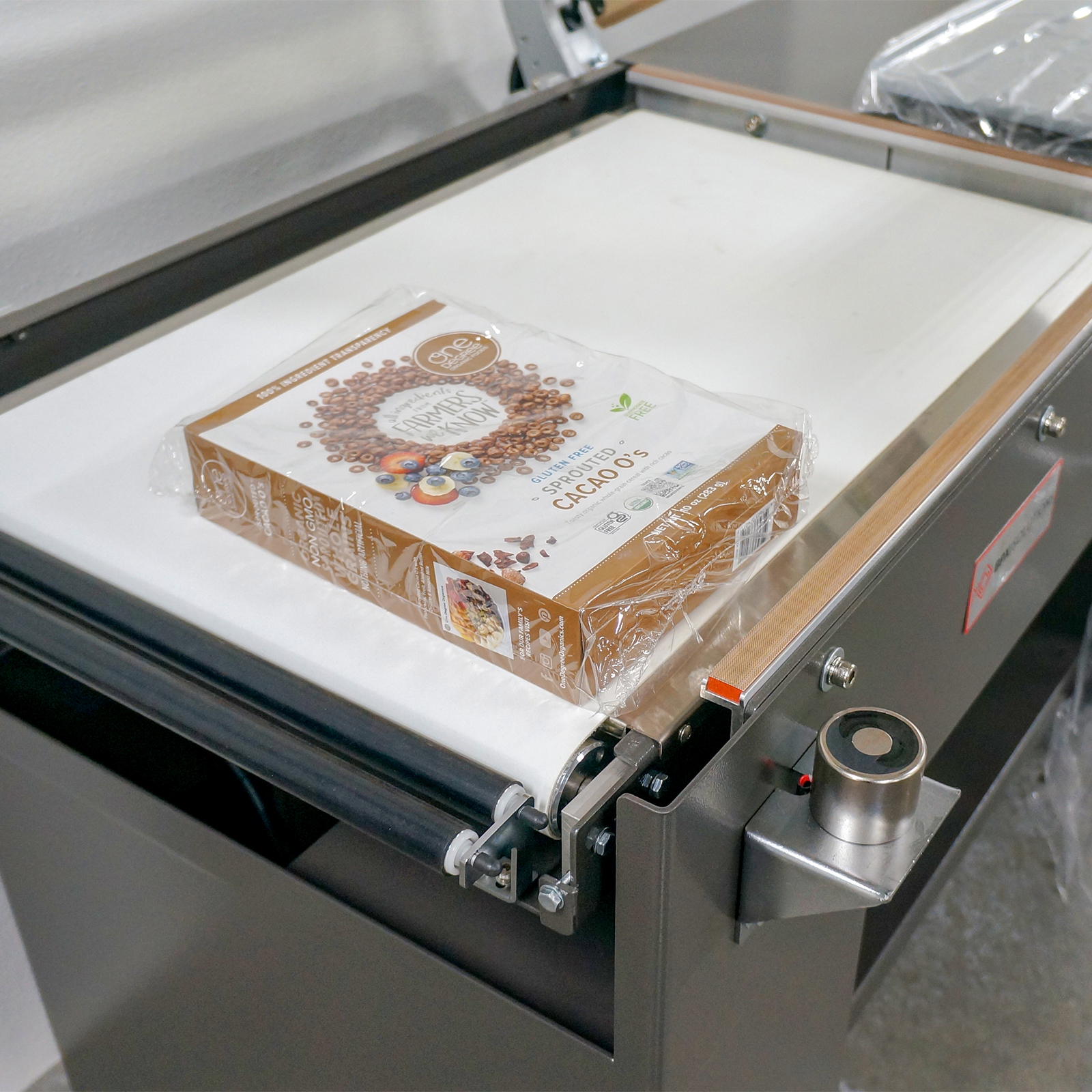

  • Motorized Discharge Conveyor
    Motorized Discharge Conveyor

  • Seal and Magnet Timer
    Seal and Magnet Timer

  • Seal Head Return Cylinder
    Seal Head Return Cylinder

  • Dual Magnet Hold Down
    Dual Magnet Hold Down

  • Stainless Steel Film Clamps
    Stainless Steel Film Clamps

  • Pin Wheel Hole Punch
    Pin Wheel Hole Punch

  • Discharge Conveyor Timer
    Discharge Conveyor Timer

  • Locking Casters
    Locking Casters

  • Powder Coated Frame
    Powder Coated Frame

  • Transition Rollers on Discharge Conveyor
    Transition Rollers on Discharge Conveyor

  • Film Roll Guides
    Film Roll Guides

  • Constant Heat for Sealing
    Constant Heat for Sealing

  • Film Roll Brake to Prevent Overwinding
    Film Roll Brake to Prevent Overwinding

  • Heavy Duty Frame Construction
    Heavy Duty Frame Construction

  • Independent Front and Side Digital Temperature Controls
    Independent Front and Side Digital Temperature Controls

  • Stainless Steel Frame
  • Thermal Transfer Printer
  • Label Applicator
  • Dual Seal Jaws for Increased Speed
