BPX SolutionsHeat Shrink TunnelsHigh Capacity Heat Shrink Tunnel
Category: Heat Shrink Tunnels

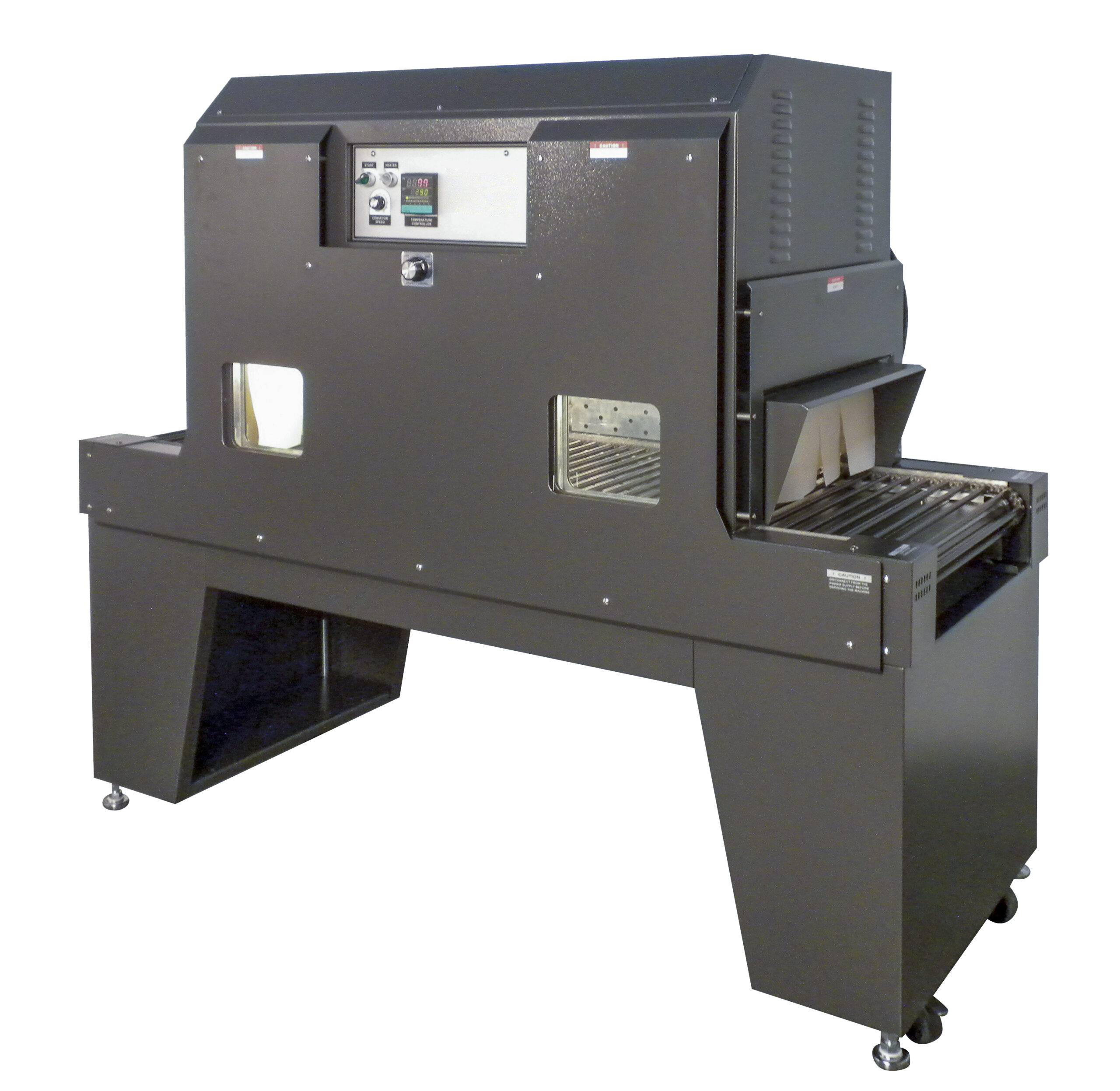

High Capacity Heat Shrink Tunnel

General Purpose Shrink Tunnel for a Wide Variety of Applications

Shrink Tunnel Shrink Tunnel
Medium Speed Medium Speed
Shrink Wrap Packaging Shrink Wrap Packaging
220V 3PH 50 Amps POWER
REQUIREMENTS
Top Down FLOW
750 lbs. SHIPPING
WEIGHT
Calculate ROI Request A Quote
Description / Specifications/ Features/ Accessories/

A great general purpose shrink tunnel that can be used for a wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves, used with shrink film, used as drying or curing tunnel etc.

Model#’s

  • PP-2212-48 – General Duty Shrink Tunnel – 22″ Width
  • PP-2612-52 – General Duty Shrink Tunnel – 26″ Width
  • Speed 0-400°F
  • Power Requirements 220V, 3 Phase 50 Amps
  • Shipping Weight 750 lbs.
  • Machine Dimensions (61.0") x (26.0") x (60.0")
  • Carton Range (48.0") x (22.0") x (12.0") - Chamber Size
  • Trip Current (A) 50
  • Phase 3
  • Power (W) 15 KW
  • Specifications based on Line Specifications based on PP2212-48

Specifications based on PP2212-48

  • Variable Air Velocity
    Variable Air Velocity

  • AC Variable Speed Drive 0-75 FPM
    AC Variable Speed Drive 0-75 FPM

  • Top Down Fully Re-Circulating Air System
    Top Down Fully Re-Circulating Air System

  • Digital Temperature Control 0-400°F
    Digital Temperature Control 0-400°F

  • Live Roller Rod Conveyor
    Live Roller Rod Conveyor

  • Automatic Cool Down with Shut-Off
    Automatic Cool Down with Shut-Off

  • 1HP Blower Motor
    1HP Blower Motor

  • Locking Casters with Leveling Pads
    Locking Casters with Leveling Pads

  • High Density Roller Kit

    Rollers on 1 Center 1/2 Spacing

  • Teflon Mesh Belt Overlay Kit with Clamp Bar
  • Side Guide Rails in Tunnel
  • Convert to Dead Roller Conveyor
