Category: Heat Shrink Tunnels

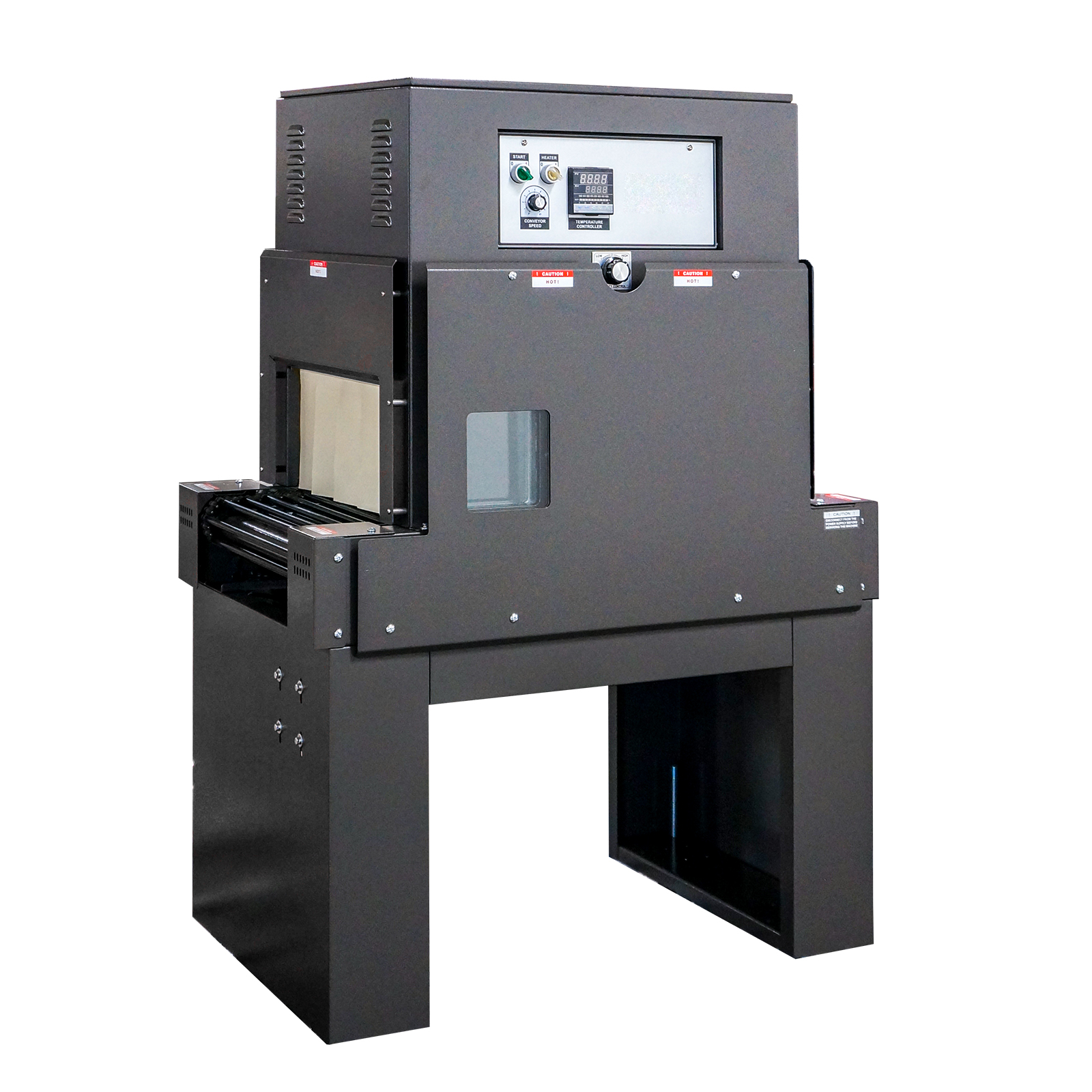

Light Duty Heat Shrink Tunnel

Can be used with a wide variety of applications

Semi-Automatic Semi-Automatic
Medium Speed Medium Speed
Shrink Wrap Packaging Shrink Wrap Packaging
110 VOLTS
20 AMPS 1 Phase
POWER
REQUIREMENTS
Top Down FLOW
220 lbs. SHIPPING
WEIGHT
Description / Specifications/ Features/

The General Purpose, Entry Level Heat Shrink Tunnel can be used for a wide variety of applications such as laying bottles down and using full-length PVC shrink sleeves, shrinking pre-form shrink bands over containers, using regular cut shrink bands, can be used as a curing tunnel or a drying tunnel.

Model#’s

  • PP-1606-20-110v/220v – Light Duty Shrink Tunnel
  • PP-1608-20-220v – Light Duty Shrink Tunnel w/8″ Opening
  • Speed 0-310°F
  • Power Requirements 110 Volt 20 AMPS 1 Phase
  • Shipping Weight 450 lbs.
  • Machine Dimensions (35.5") x (22.0") x (48.5")
  • Carton Range (20.0") x (16.0") x (6.0") - chamber size
  • Trip Current (A) 20
  • Phase 1
  • Power (W) 2 KW
  • Specifications based on Line Specifications based on PP1606-20 110V

Specifications based on PP1606-20 110V

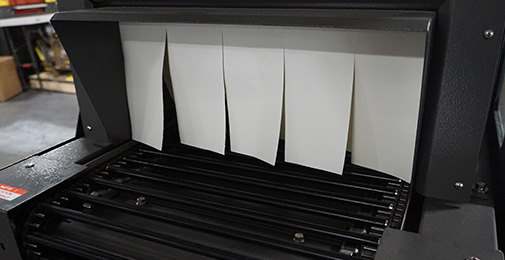

  • Fully Re-circulating Air Chamber
    Fully Re-circulating Air Chamber

  • 4 Direction Air Flow
    4 Direction Air Flow

  • AC Variable Speed Conveyor 0-75 FPM
    AC Variable Speed Conveyor 0-75 FPM

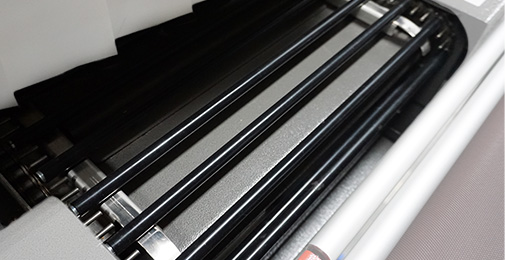

  • Live Roller Rod Conveyor
    Live Roller Rod Conveyor

  • Automatic Cool Down and Shut Off
    Automatic Cool Down and Shut Off

  • Digital Temperature Control 0-310 Degrees
    Digital Temperature Control 0-310 Degrees

  • Hi Density Rollers with Close Spacing
    Hi Density Rollers with Close Spacing

  • Legs & Locking Casters
    Legs & Locking Casters

  • 12 ft Power Cord
    12 ft Power Cord
