Category: Packing Stations

MBF-T

Up to 6 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Bottom Flap Folder Bottom Flap Folder
N/A POWER
REQUIREMENTS
80 PSI
4-6 SCFM
AIR
REQUIREMENTS
330 lbs SHIPPING
WEIGHT
Description / Specifications/ Accessories/

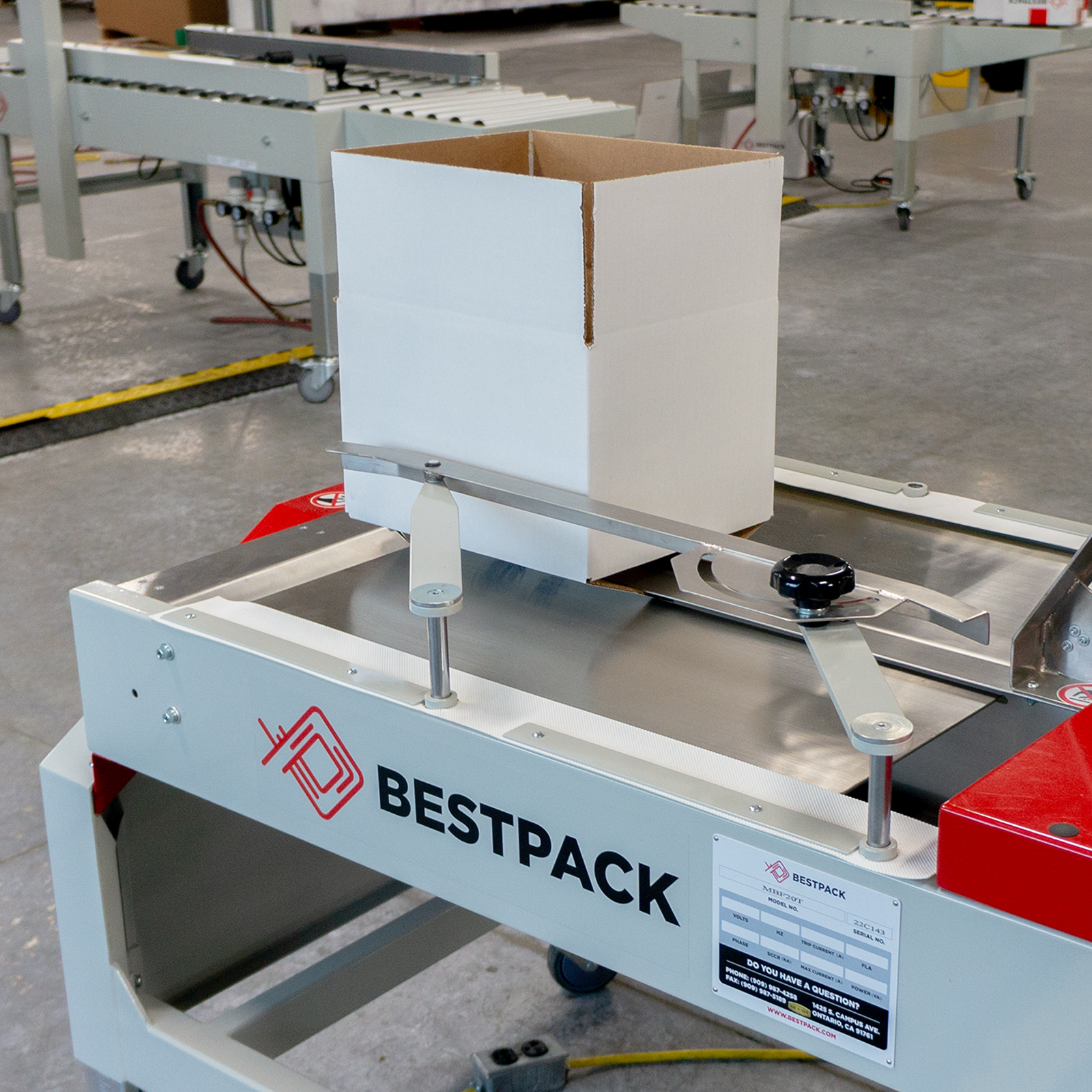

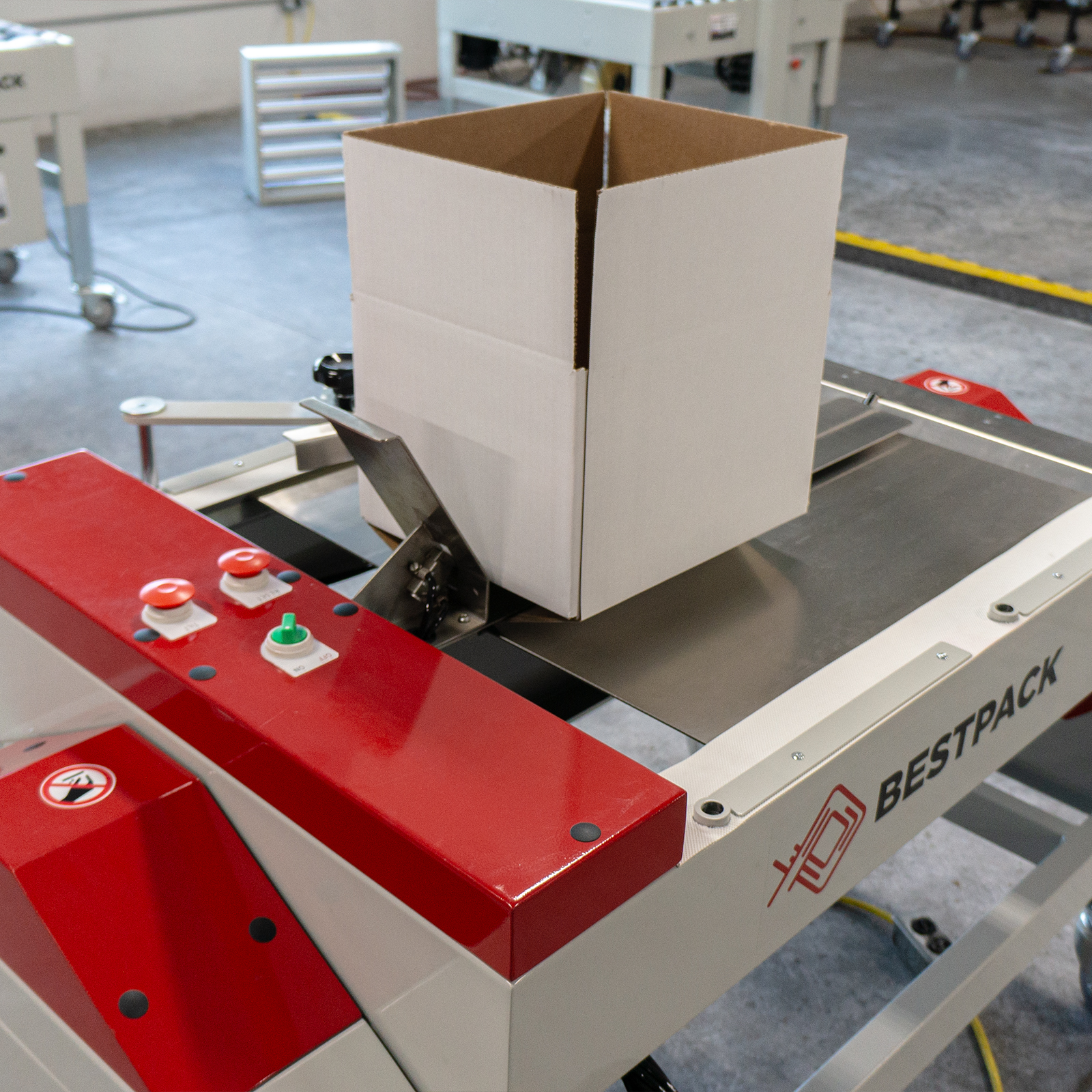

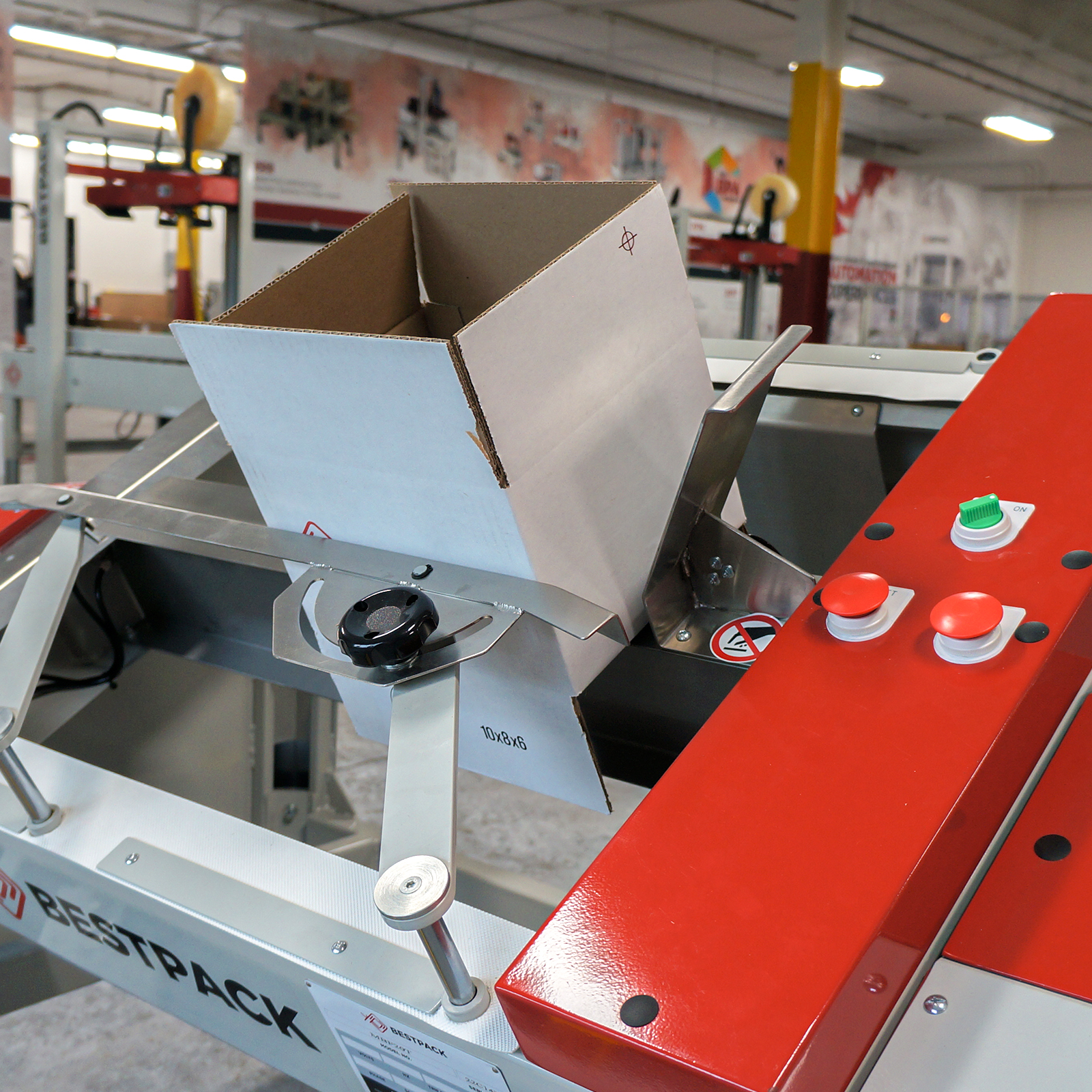

The BestPack™ MBF-T is a bottom flap folder and packing station has a rotating/tilting bed that closes the bottom flaps and holds the carton in a tilted position while the operator fills the carton. The operator then activates a switch that causes the packing station to rotate to a standing positon and the operator then pushes the carton to the next station. The ergonomic design of the tilting bed provides a better packing angle for the product being packed in the carton by the operator. The MBF-T is a great addition to BestPack’s flagship carton sealers and provides a total packing line solution.

All BestPack units are available in our standard baked enamel finish Sand food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 6 Cartons/min.
  • Power Requirements N/A
  • Air Requirements 80 PSI, 4-6 SCFM
  • Shipping Weight 330 lbs
  • Machine Dimensions (50.9") x (28.4") x (33.8")
  • Carton Range (9.0" - 24.0") x (7.5" - 20.0") x (6.0" - 16.0")
  • Conveyor Height adjustment (20.5" - 30.0")
  • Specifications based on Line Specifications based on MBF20T

Specifications based on MBF20T

  • air activated foot pedal accessory
    Air Activated Foot Pedal

    This foot pedal allows the user to determine whether air will flow through the machine or not.

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
