BPX SolutionsHeat Shrink TunnelsMedium Capacity Heat Shrink Tunnel
Category: Heat Shrink Tunnels

Medium Capacity Heat Shrink Tunnel

General Duty Shrink Tunnel with a Medium Capacity

Semi-Automatic Semi-Automatic
Medium Speed Medium Speed
Shrink Wrap Packaging Shrink Wrap Packaging
220 VOLTS
1 Phase 40 AMP POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
450 lbs. SHIPPING
WEIGHT
Calculate ROI Request A Quote
Description / Specifications/ Features/ Accessories/

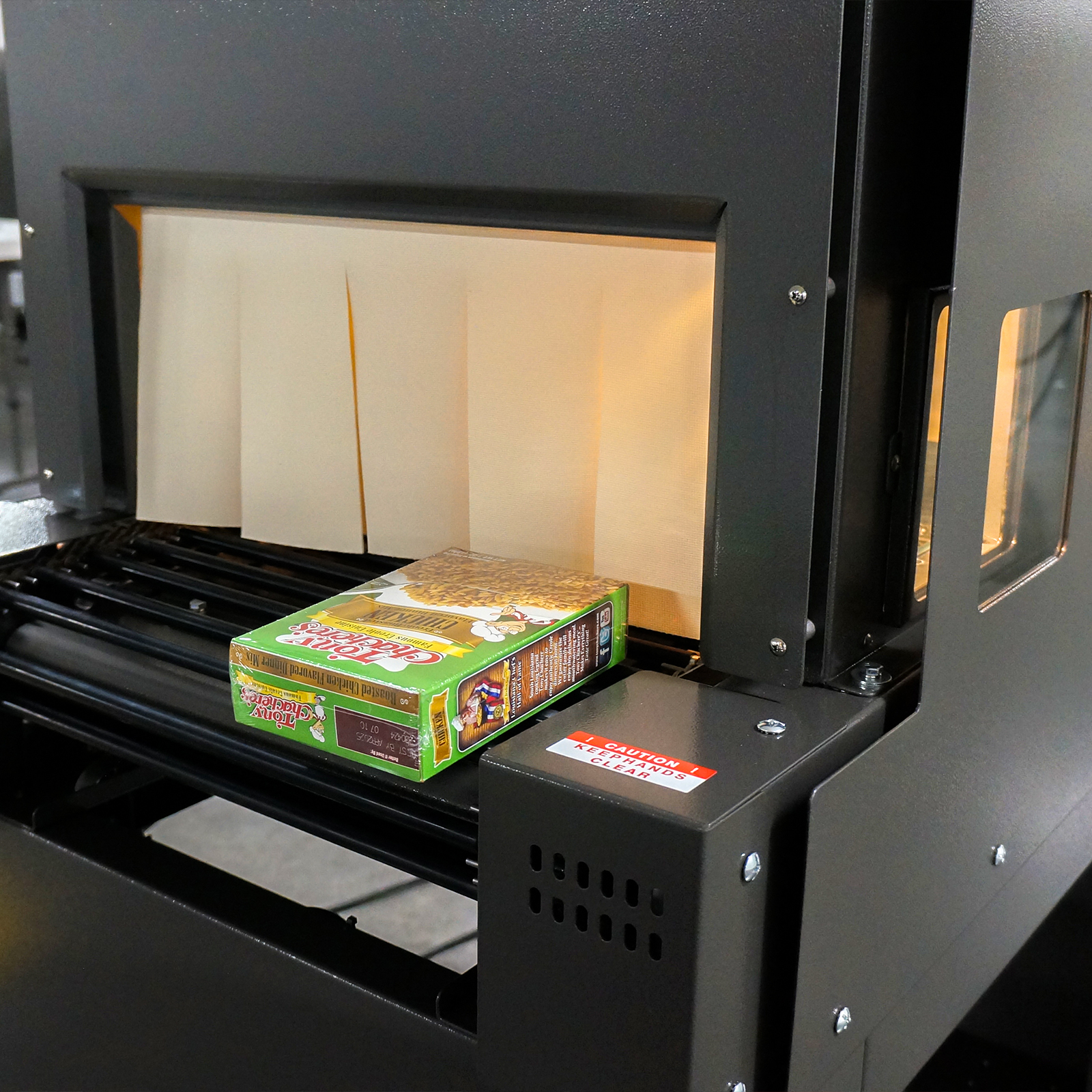

The PP1808-28 Shrink Tunnel is a great general-purpose shrink tunnel that can be used for a wide variety of applications. Can be used with shrink bands, neck bands, full body sleeves, used with shrink film, used as drying or curing tunnel etc.



Model#’s

  • PP-1808-28 – General Duty Shrink Tunnel – 8″ Height
  • PP-1812-28 – General Duty Shrink Tunnel – 12″ Height
  • PP-1808-44 – Medium Capacity Shrink Tunnel – 8″ Height
  • PP-1812-44 – Medium Capacity Shrink Tunnel – 12″ Height
  • Speed 0-400°F
  • Power Requirements 220 Volt 40 AMP
  • Shipping Weight 450 lbs.
  • Machine Dimensions (148.0") x (26.0") x (56.0")
  • Carton Range (28.0") x (18.0") x (8.0")
  • Phase 1
  • Specifications based on Line Specifications based on PP1808-28

Specifications based on PP1808-28

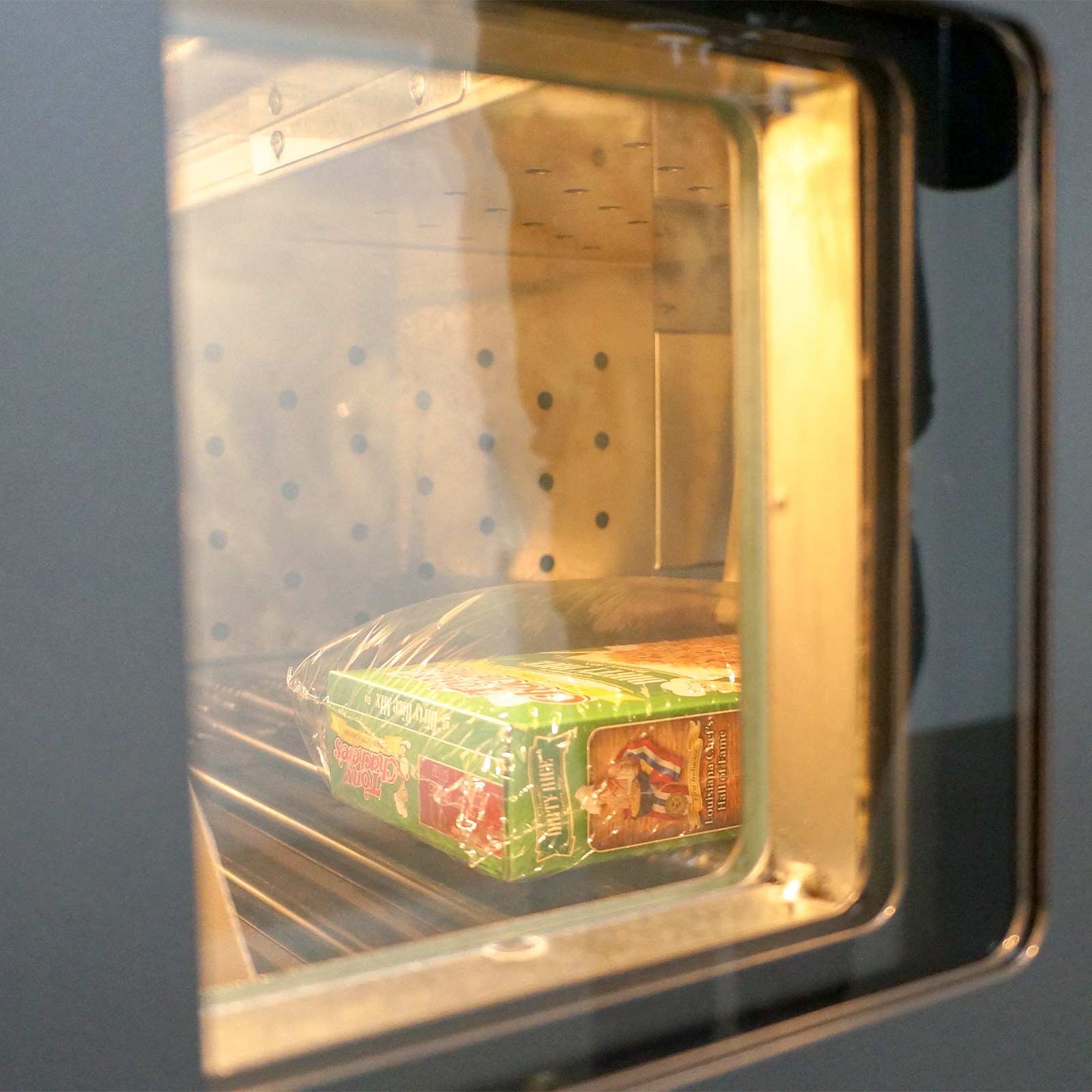

  • Fully Re-circulating Air Chamber
    Fully Re-circulating Air Chamber

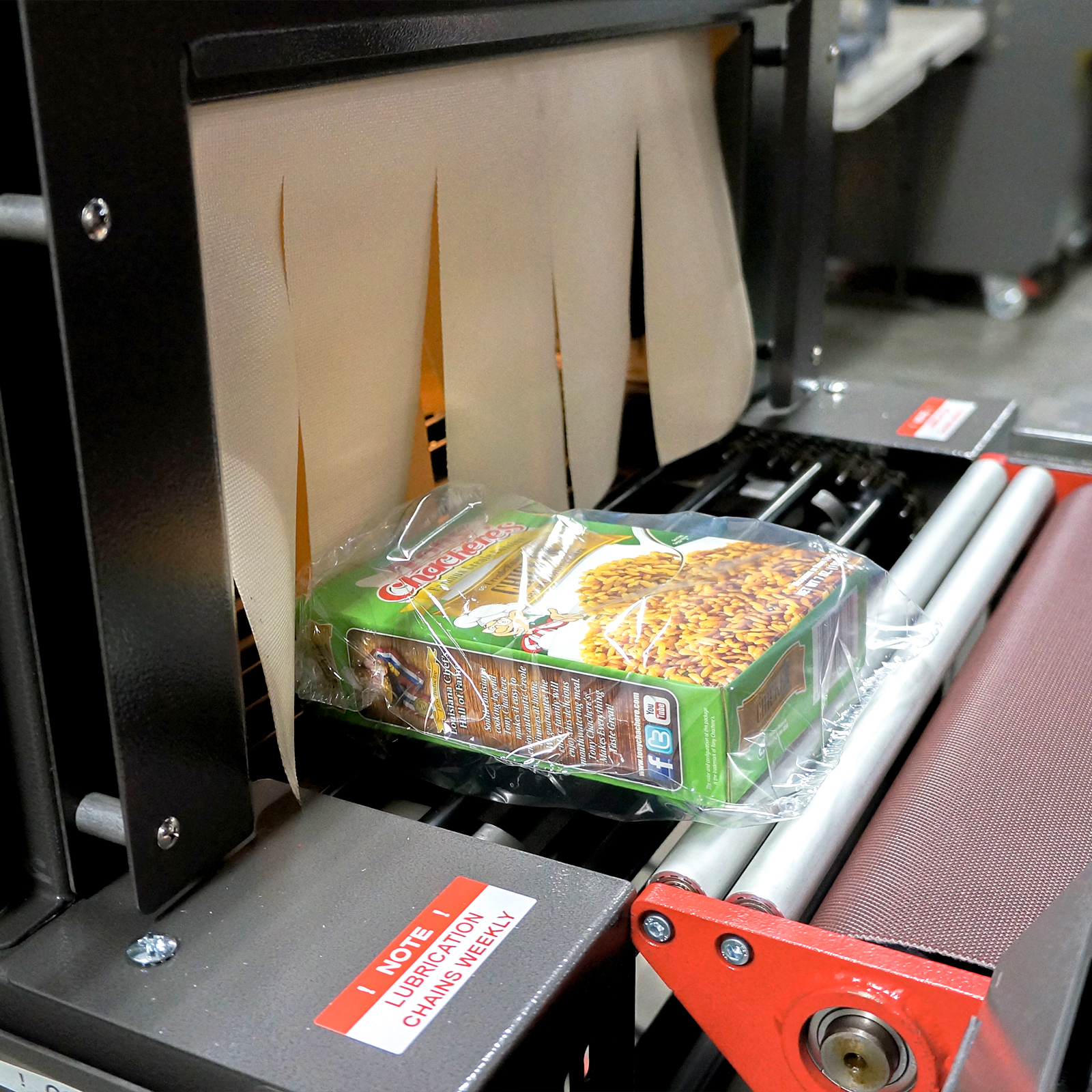

  • Live Roller Rod Conveyor
    Live Roller Rod Conveyor

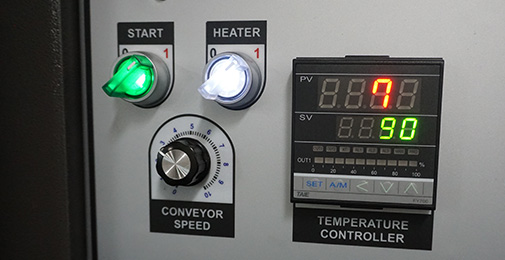

  • Digital Temperature Control 0-400 Degrees
    Digital Temperature Control 0-400 Degrees

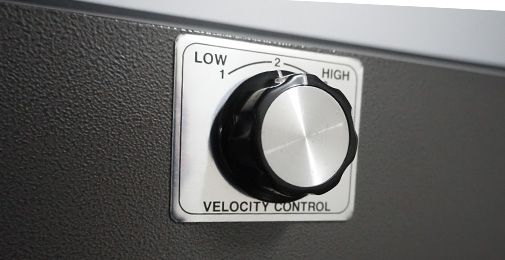

  • Adjustable Air Velocity Control
    Adjustable Air Velocity Control

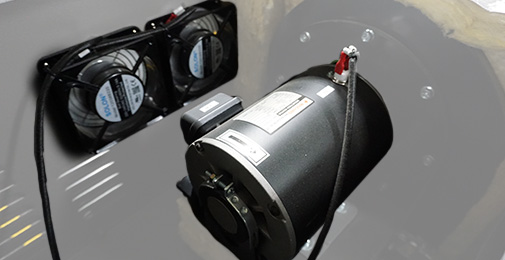

  • 1/2 HP Blower Motor
    1/2 HP Blower Motor

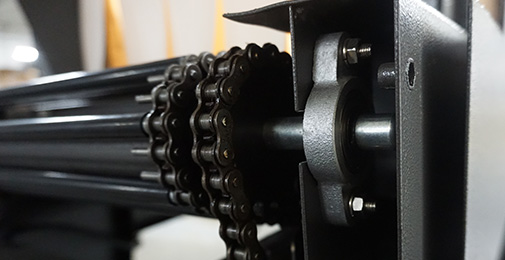

  • Sealed Bearings on Drive and Idler Shafts
    Sealed Bearings on Drive and Idler Shafts

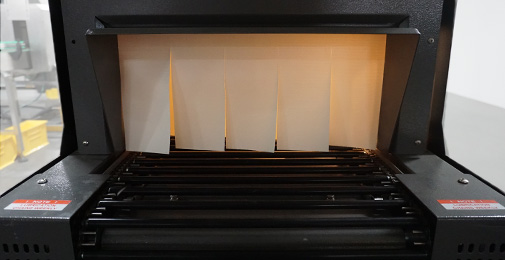

  • Chamber Size 28
    Chamber Size 28" x 18" x 8" (L x W x H)

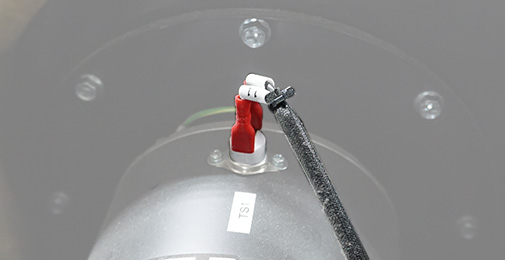

  • Thermal Overload Protection on All Motors
    Thermal Overload Protection on All Motors

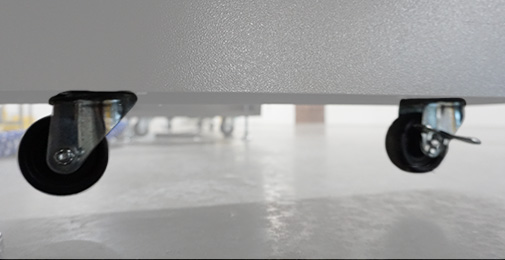

  • Locking Casters
    Locking Casters

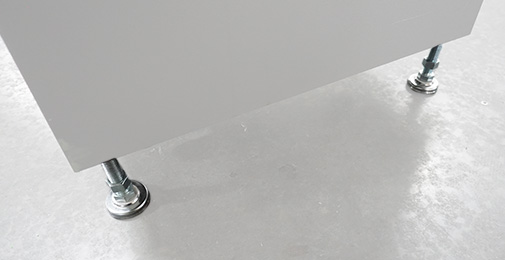

  • Adjustable Leveling Pads 32.0
    Adjustable Leveling Pads 32.0" - 36.5"

  • 12″ Tunnel Opening

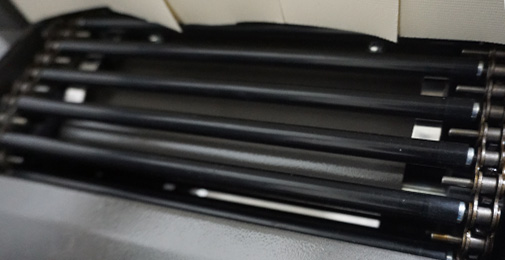

  • Close Roller Spacing 1/2″ Gap
  • Teflon Mesh Belt
  • Stainless Steel Metal Mesh Belt
