Category: Carton Sealers Belt Drive: 2 Top/1 Bot Belt Drive

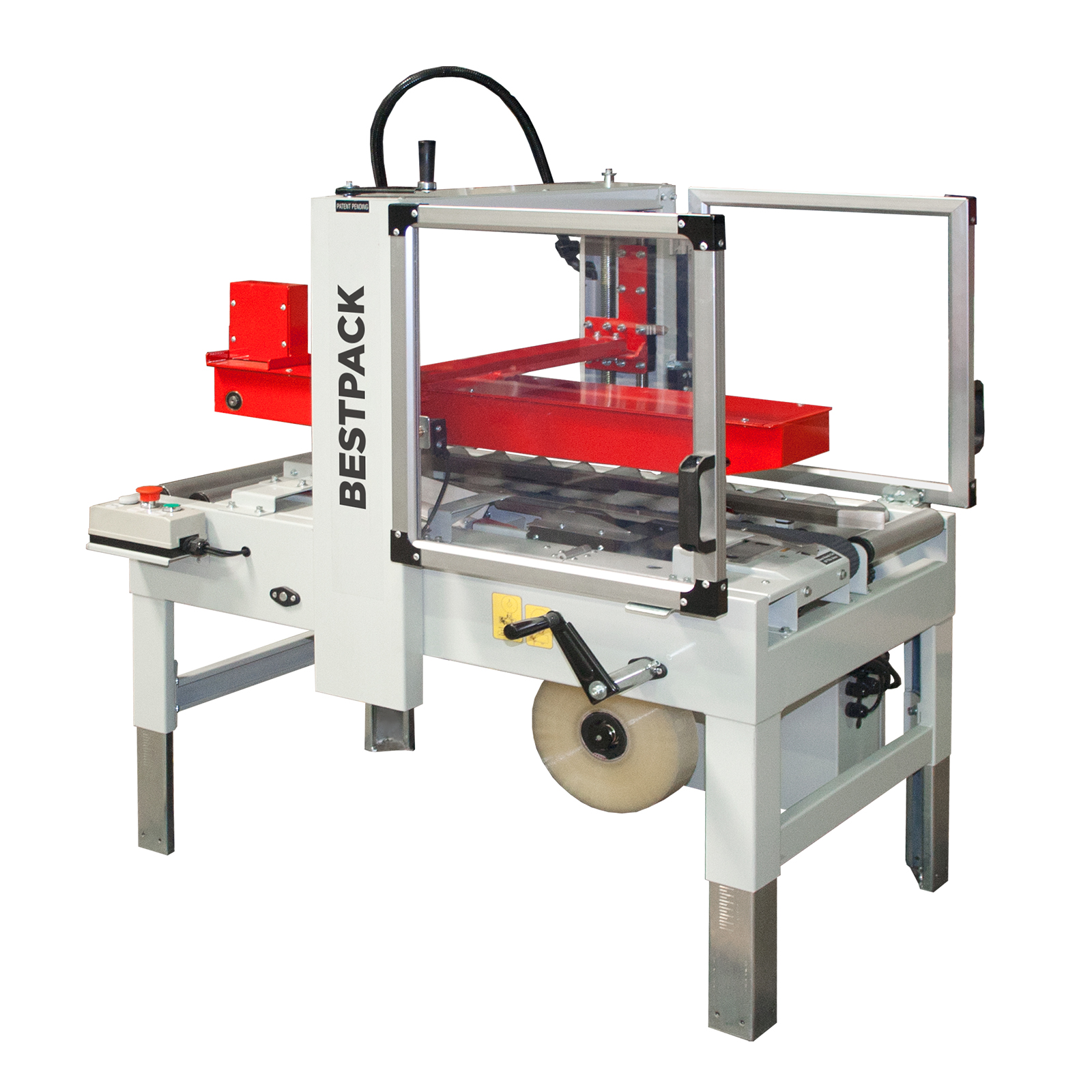

MT1E One Edge Sealer

Up to 45 Cartons/min.

OPERATOR REQUIRED OPERATOR REQUIRED
UNIForm Cartons UNIForm Cartons
1-Edge Seal 1-Edge Seal
110V 60 Hz
122 WATTS
POWER
REQUIREMENTS
50 PSI
5 SCFM
AIR
REQUIREMENTS
350 LBS SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

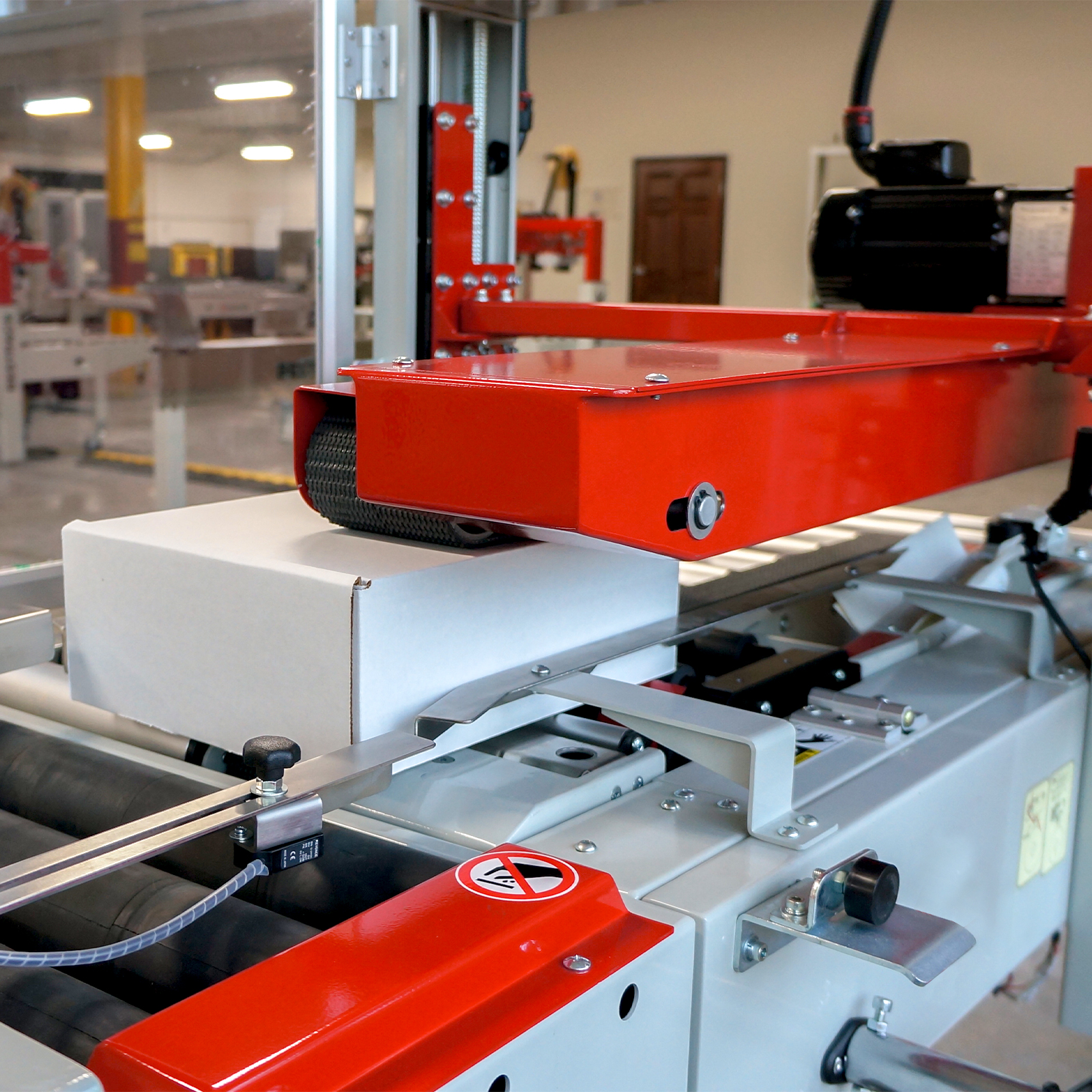

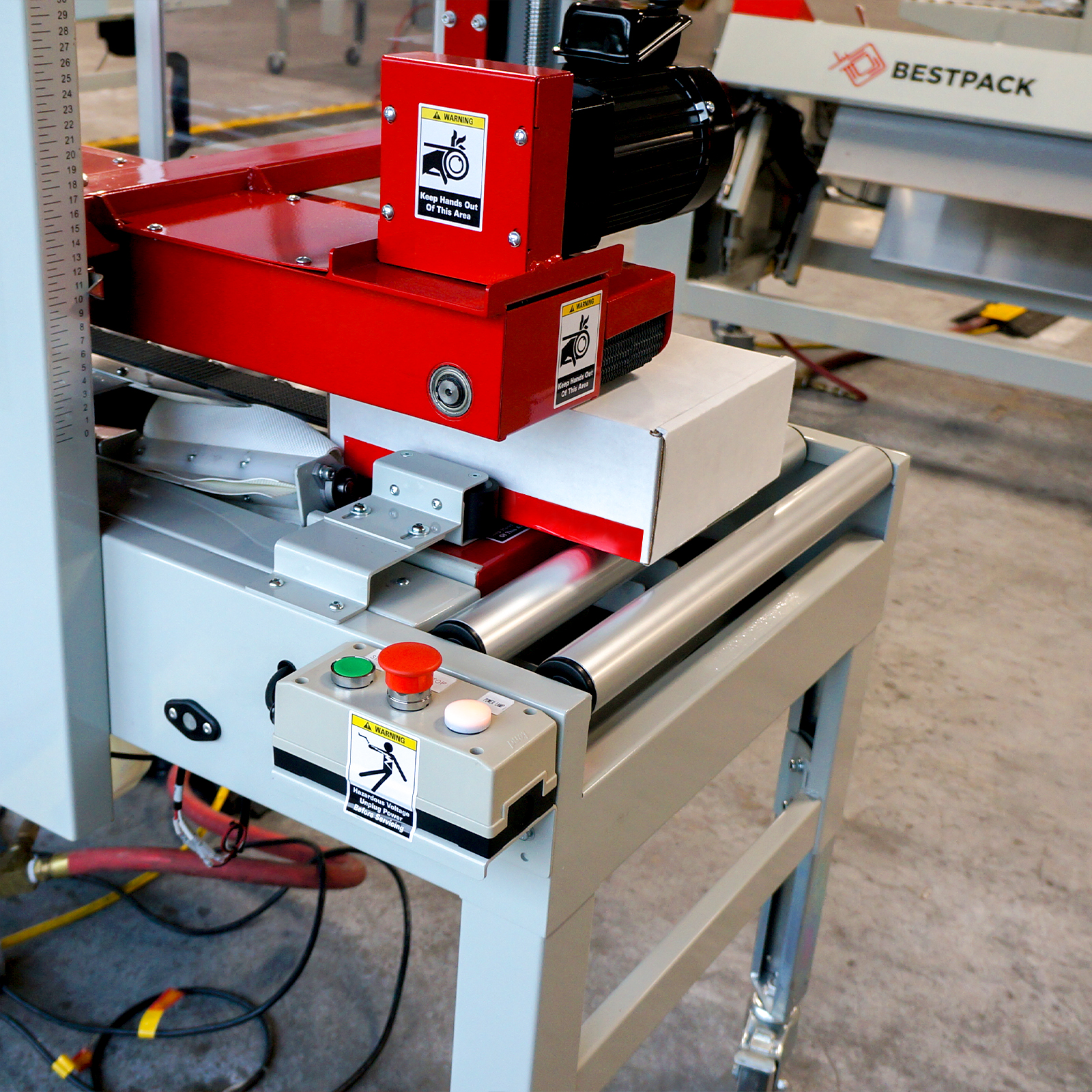

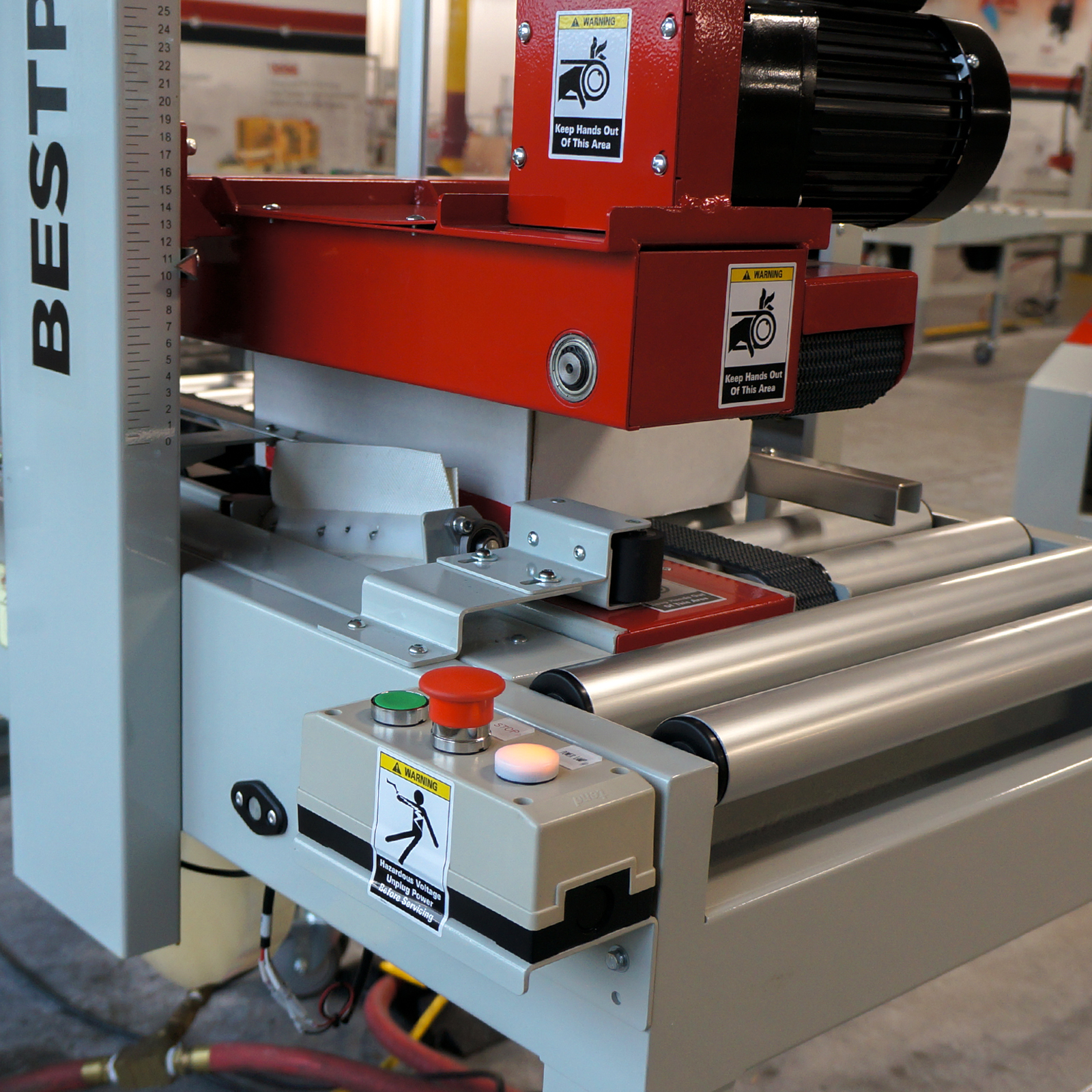

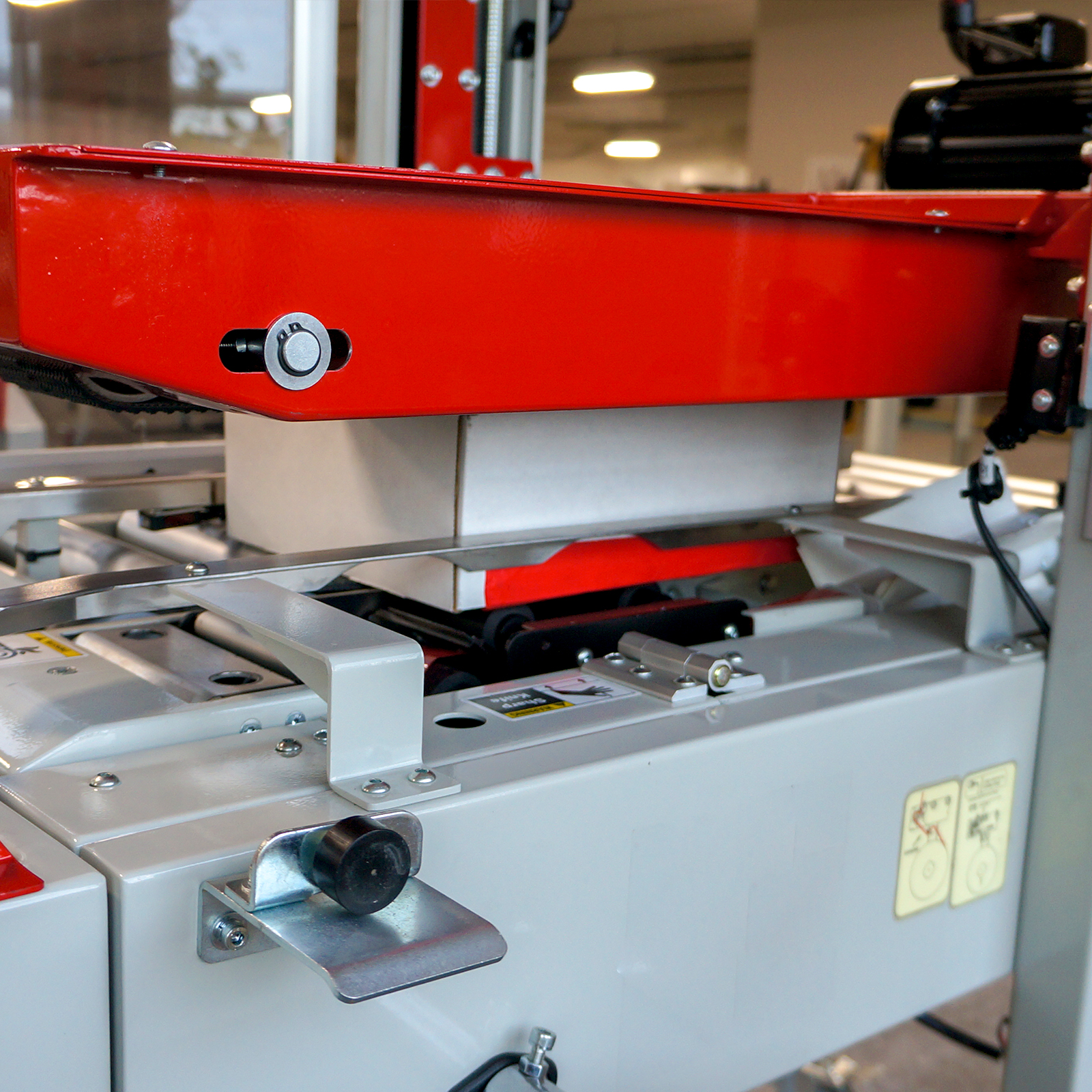

The BestPack™ MT1E Series is a one edge sealer which is a high-speed semi-automatic uniform carton sealer using pressure sensitive tape. The MT1E is available in either 1-edge bottom left, 1-edge bottom right, 1-edge top left, or 1-edge top right. This 1-edge sealer is an operator fed adjustable sealer that can also be converted to an operator free adjustable 1-edge sealer with the addition of a matching adjustable indexer. Depending on the motor drive speed used the MT1E can reach cartons speeds of over 85 cartons per minute. This sealer excels at one edge sealing clamshell, flap tuck and flap edge lock type cartons both in corrugated and chipboard.

The MT1E is available with a 2″ Pneumatic High Speed BestPack Tape Head. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance. Look no further for arguably the best one edge sealer available anywhere.

  • Speed Up to 45 cartons/min.
  • Power Requirements 110 Volts 60 Hz - 1.9A, 122 watts/motor
  • Air Requirements 50 PSI, 5 SCFM
  • Shipping Weight 350 lbs.
  • Machine Dimensions (42.5") x (37.0") x (50.5")
  • Carton Range (6.0" - U) x (5.25" - 14.25") x (1.5" - 7.5")
  • Conveyor Height adjustment (22.5" - 30.0")
  • Specifications based on Line Specifications based on MT1EBL11-2

Specifications based on MT1EBL11-2

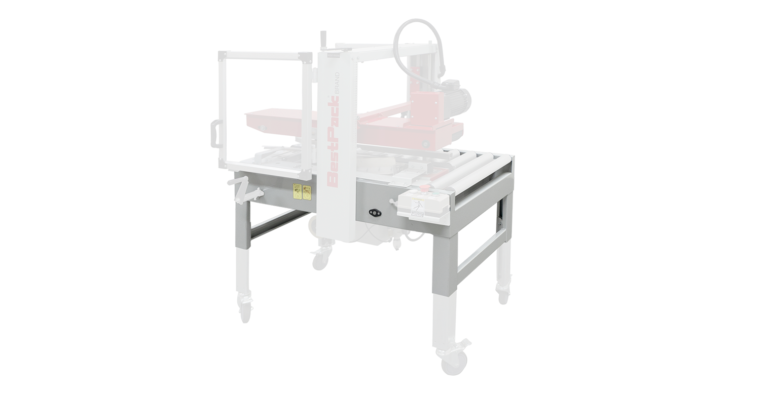

  • Heavy Duty Frame
    Heavy Duty Frame

    2mm CNC Cut and Welded Frame Including Upper Welded Legs

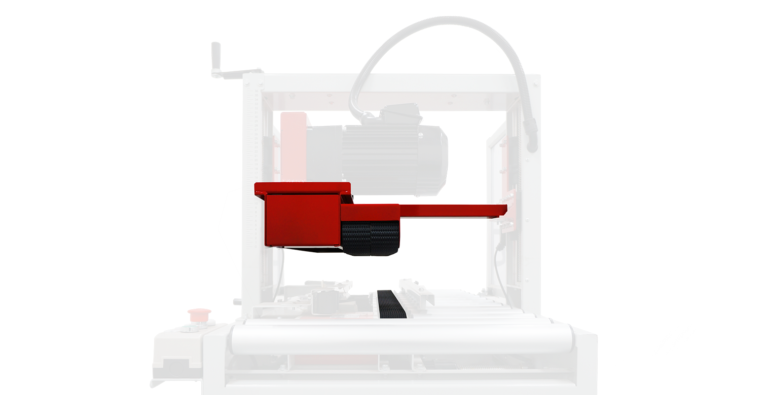

  • 2 Top & 1 Bottom Belt Drive
    2 Top & 1 Bottom Belt Drive

  • Adjustable Bed Height
    Adjustable Bed Height

    From 22.5" to 30.0"

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd. & 1,500 yd.

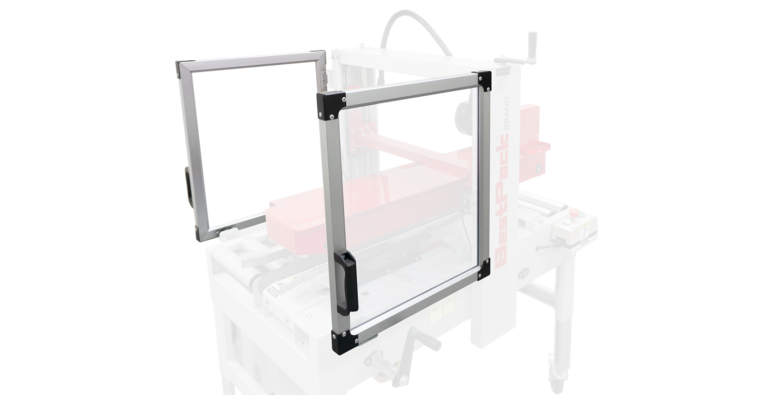

  • Front Interlock Safety Gates
    Front Interlock Safety Gates

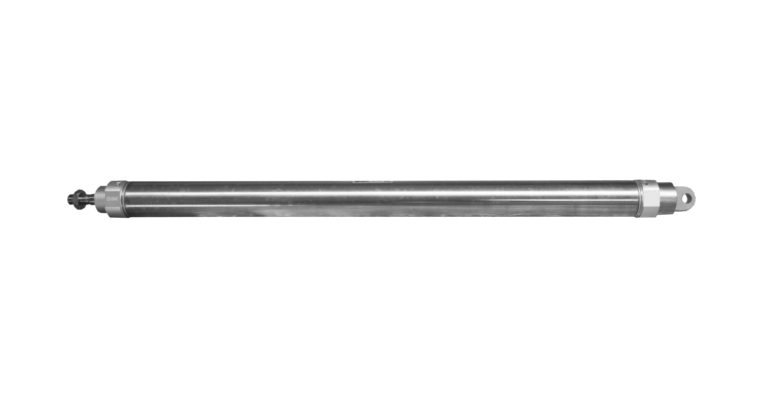

  • Maintenance Free, Oil-less Cylinders
    Maintenance Free, Oil-less Cylinders

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.

  • indexer picture

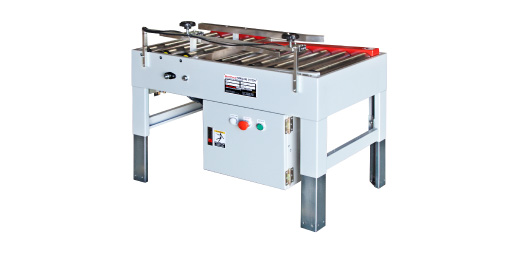

    Indexer

    The indexers function is to separate and time cartons into the carton sealer.
    ARX(uniform) or CRX (random)

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.
