Category: Carton Sealers Belt Drive: 2 Top/2 Bot Belt Drive

MTSS

Up to 40 Cartons/min.

Operator Required Operator Required
Uniform Cartons Uniform Cartons
Side Seal Side Seal
110 Volts 60 Hz POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
548-688 lbs. SHIPPING
WEIGHT
Description / Specifications/ Features/ Accessories/

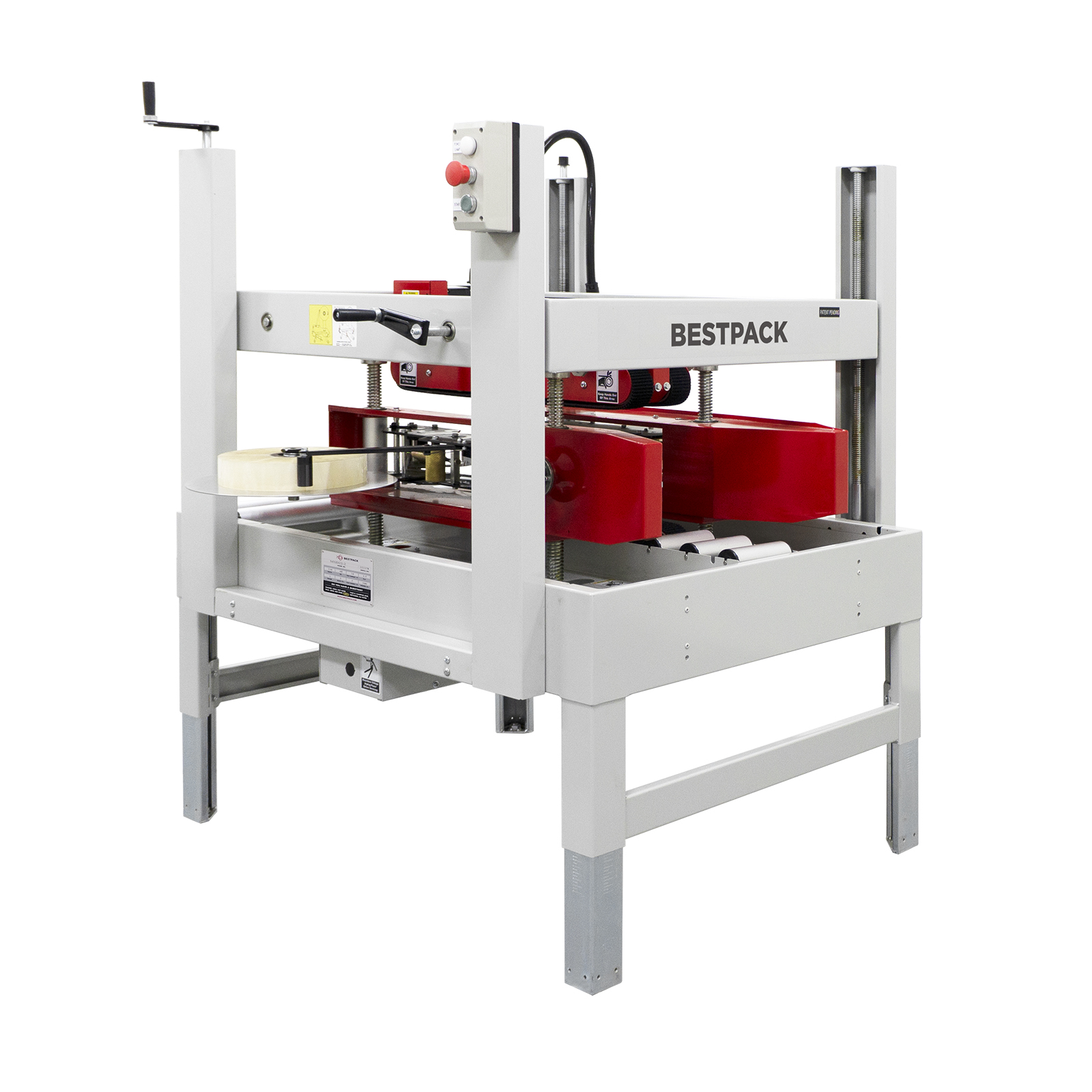

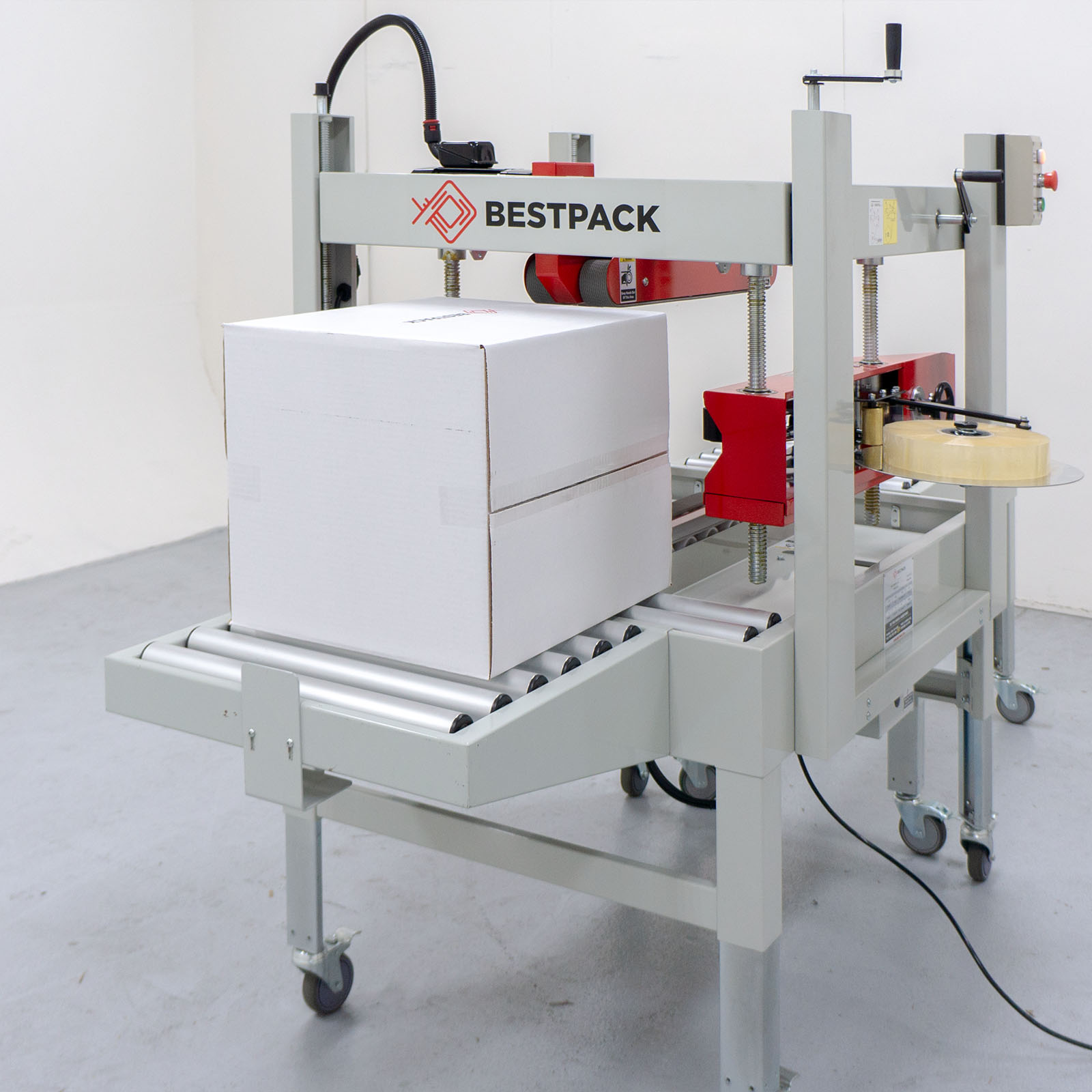

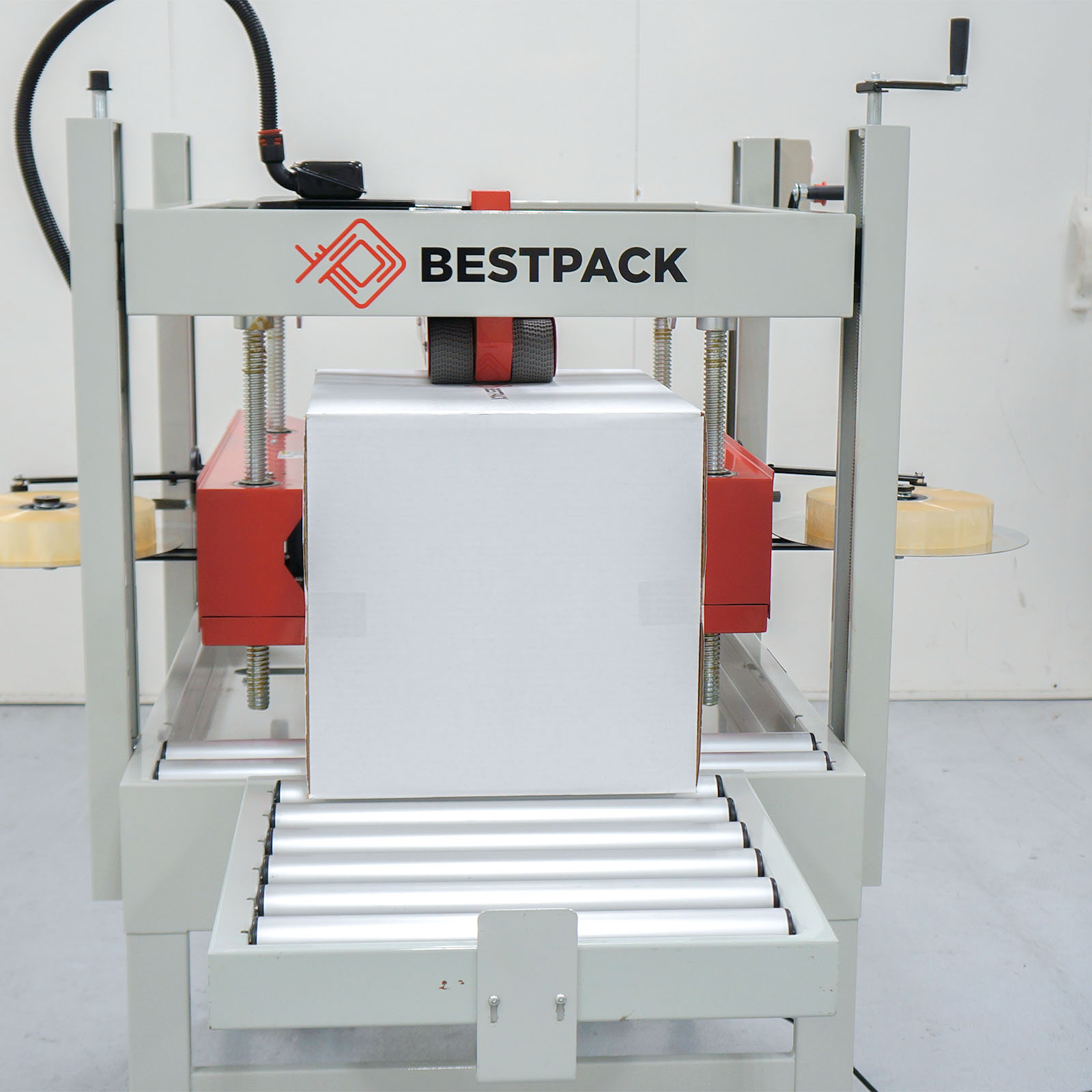

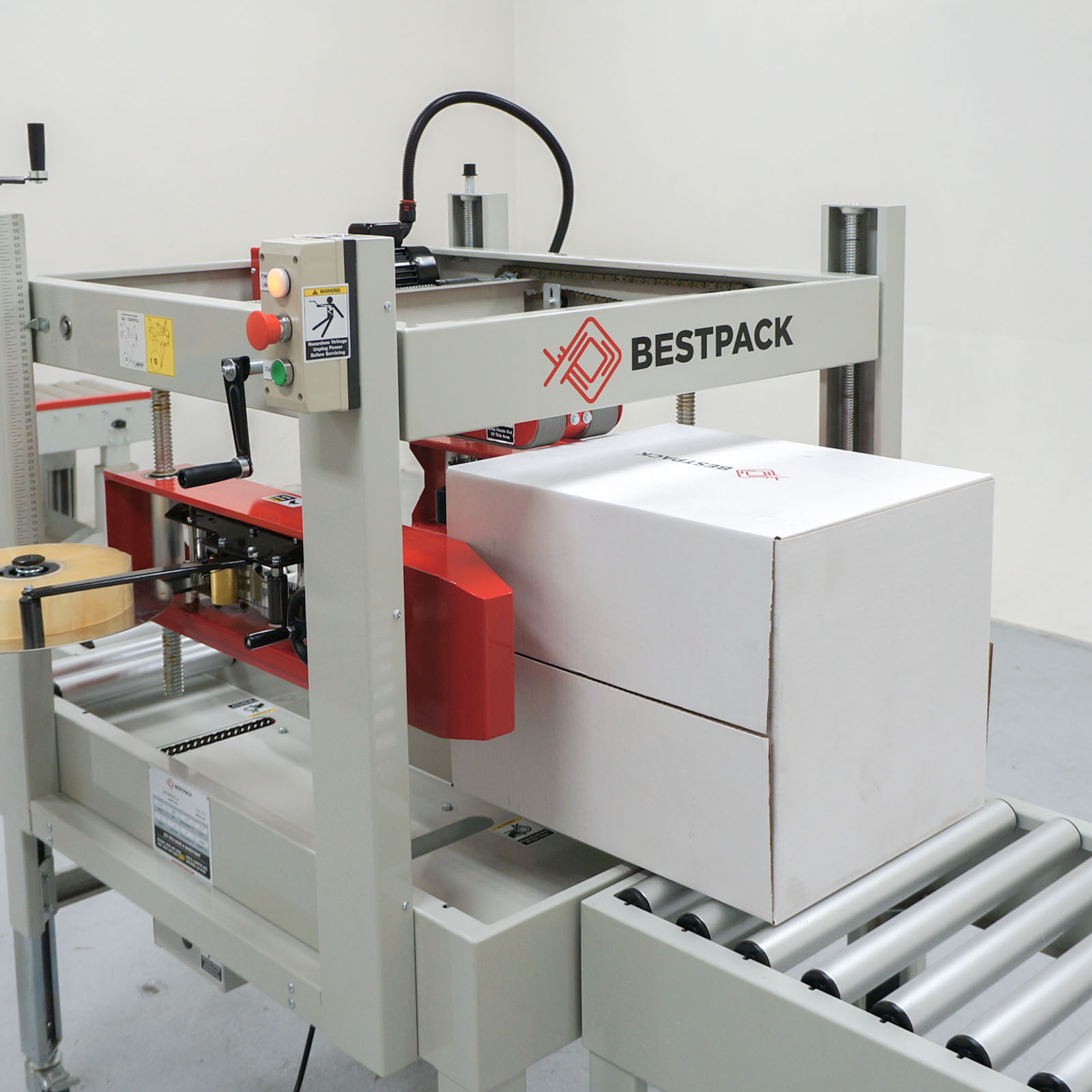

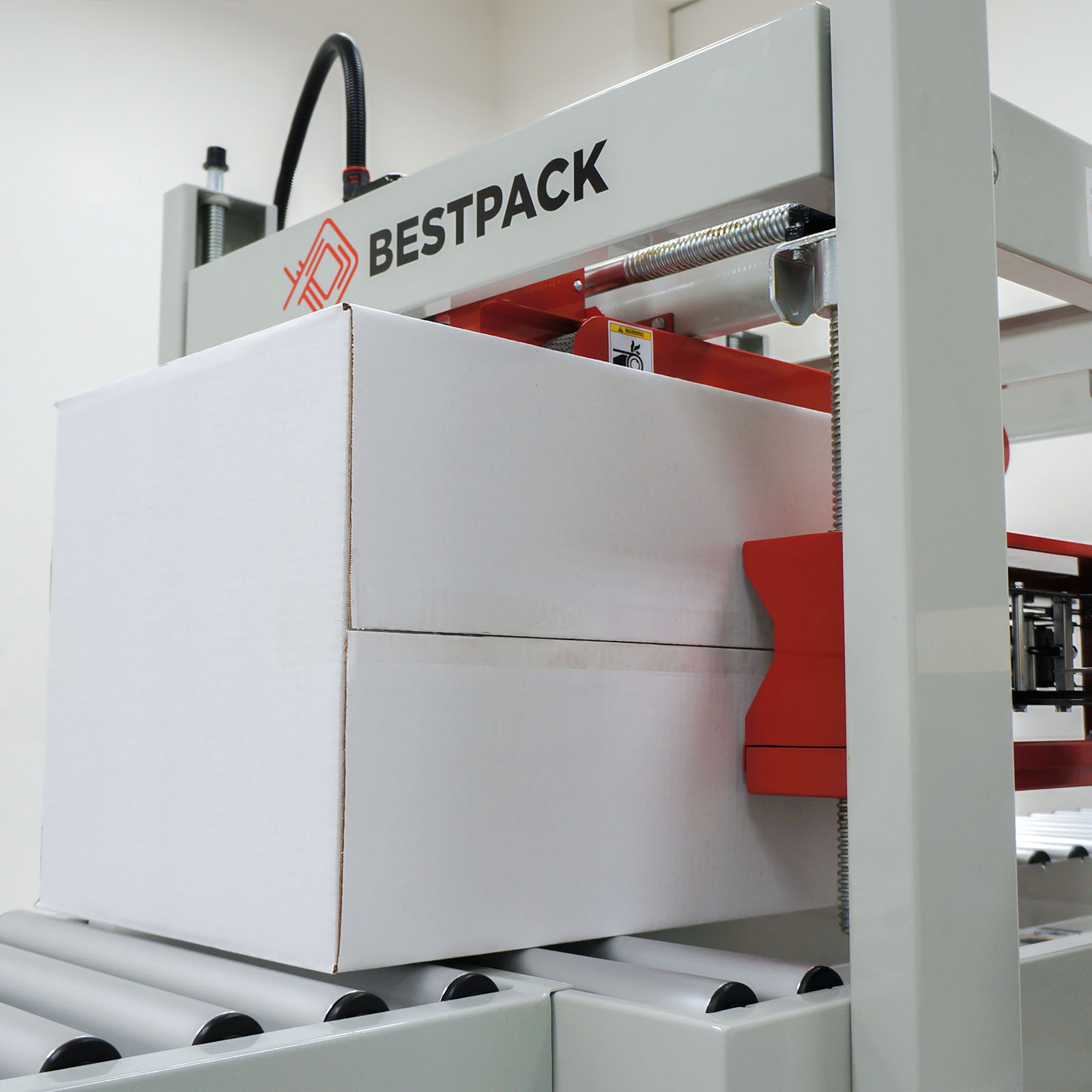

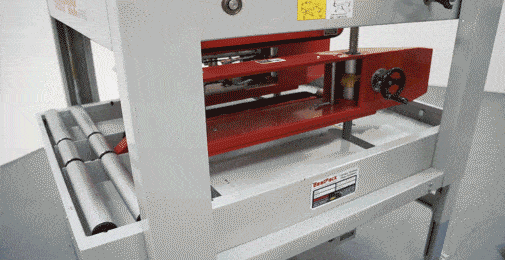

The BestPack™ MTSS Series is an operator-fed, adjustable carton sealer designed to effectively seal cartons that need to be filled from the side as a result of the product’s weight, shape, and size.

Our MTSS line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 40 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements N/A
  • Shipping Weight 548 lbs.
  • Machine Dimensions (45.5") x (33.6") x (53.0")
  • Carton Range (6.0" - U) x (7.5" - 21.0") x (4.5" - 19.5")
  • Conveyor Height adjustment (20.5" - 30")
  • Specifications based on Line Specifications based on MTSS22-2/3

Specifications based on MTSS22-2/3

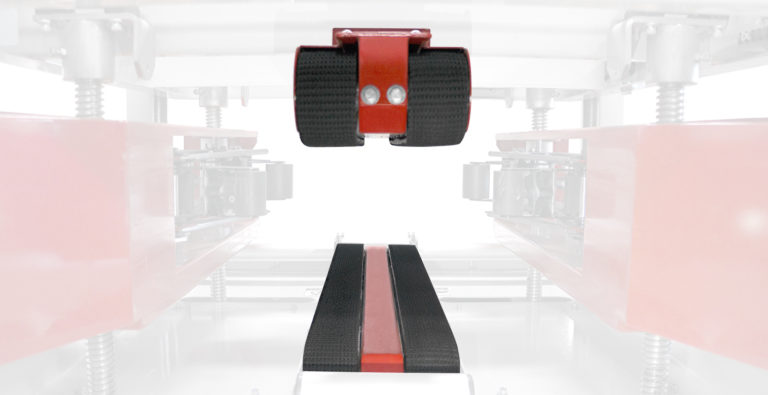

  • 4 Belt Drive
    4 Belt Drive

    2 Top and 2 Bottom Belts

  • Adjustable Bed Height
    Adjustable Bed Height

    from 20.5" - 30.0"

  • Tape Roll Lengths:
    Tape Roll Lengths:

    1,000 yd., 1,500 yd., 2,000 yd.

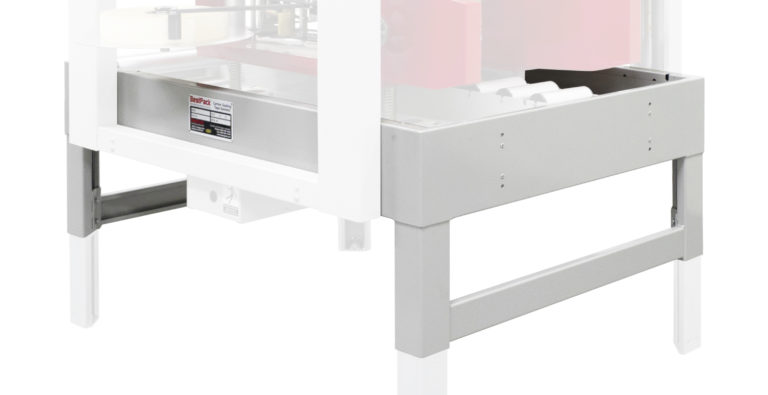

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

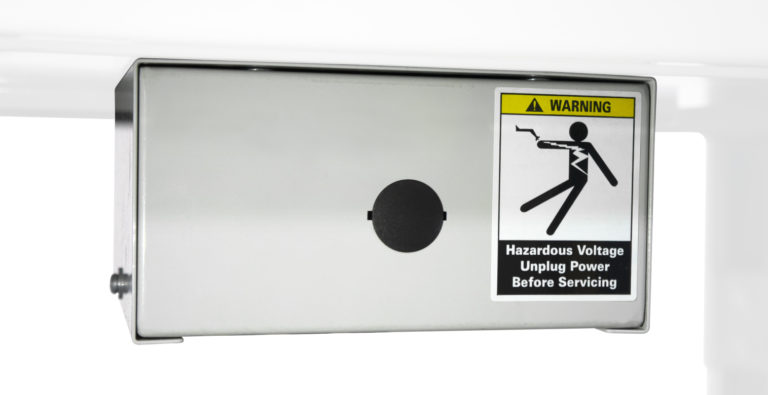

  • Electrical On/Off Box
    Electrical On/Off Box

    can be Mounted on Either Side of the Sealer

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • high speed motor accessory
    High Speed Motor

    High Speed Motor Upgrade (up to 125 ft.)

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • stainless steel picture
    Food Grade 304 Stainless Steel

    This machine is available in 304 stainless steel which is food grade safe for food applications.

  • carton sealing tape accessory
    BestPack Carton Sealing Tape

    Put high quality tape on your BestPack Carton Sealer. Make sure to order machine length rolls for your new carton sealer.
