BPX SolutionsStretch WrappersPowered Pre Stretch, Automatic
Category: Stretch Wrappers

Powered Pre Stretch, Automatic

Up to 40 Loads/hr.

Fully Automatic Fully Automatic
Turntable Solution Turntable Solution
Heavy Duty Heavy Duty
110 VOLTS
1 Phase, 15AMP POWER
REQUIREMENTS
N/A AIR
REQUIREMENTS
1,600 lbs. SHIPPING
WEIGHT
Calculate ROI Request A Quote
Description / Specifications/ Features/

Never leave your forklift again. For use with and without ramp. Fully Automatic cut and clamp device. Reloads film automatically to the clamp of the machine. Full 250% powered pre-stretch carriage.

Model#’s

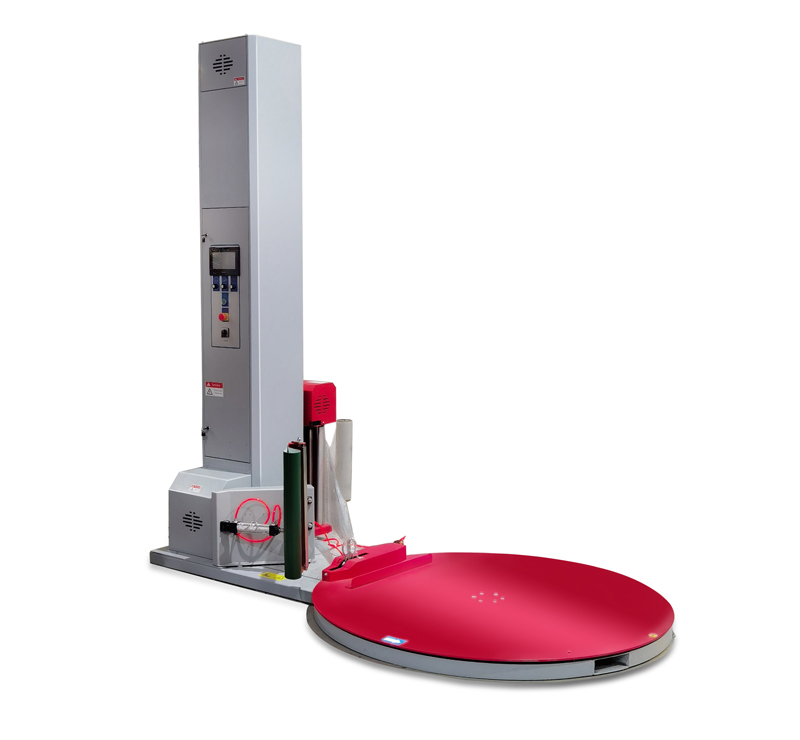

  • PP-4505A
  • Speed 30-40 Loads per hour
  • Power Requirements 110V, 10 Amp
  • Shipping Weight 1,600 lbs.
  • Machine Dimensions 97"L x 59"W x 90"H
  • Carton Range Max Load Size: 40"L x 48"W x 85"H
  • Phase 1
  • Specifications based on Line Specifications based on PP-4505A

Specifications based on PP-4505A

  • 250% Powered Pre-Stretch
    250% Powered Pre-Stretch

  • Automatic Cut and Clamp Machine
    Automatic Cut and Clamp Machine

  • Automatic Cut and Wipe
    Automatic Cut and Wipe

  • Max Film Roll Diameter is 9.8
    Max Film Roll Diameter is 9.8"

  • HMI control Touch Panel
    HMI control Touch Panel

  • PLC Control System
    PLC Control System

  • Program the top and bottom wrap count from HMI
    Program the top and bottom wrap count from HMI

  • Photo Eye - Automatically seek pallet load height
    Photo Eye - Automatically seek pallet load height

  • 65
    65" Diameter Turntable

  • 4,400 lbs. Load Capacity
    4,400 lbs. Load Capacity

  • Max Load Size
    Max Load Size

    40"L x 48"W x 85"H

  • Soft Start and Stop Turntable for Unstable Loads
    Soft Start and Stop Turntable for Unstable Loads

  • Variable Speed Turntable to 1-14 RPM
    Variable Speed Turntable to 1-14 RPM

  • Forklift Portable
    Forklift Portable

  • Safety Sensor
    Safety Sensor

  • Heavy Duty Chain Driven Turntable
    Heavy Duty Chain Driven Turntable

  • Easy Thread Design
    Easy Thread Design

  • Inside Roll Diameter of 3
    Inside Roll Diameter of 3"

  • "Wireless" Remote Controls

  • Emergency Stop Switch
    Emergency Stop Switch
