Category: Carton Sealers Belt Drive: Side Belt Drive

RS

Up to 15 Cartons/min.

Operator Required Operator Required
Random Cartons Random Cartons
Top & Bottom Seal Top & Bottom Seal
110 Volts 60 Hz Power
Requirements
55-80 PSI
5 SCFM
Air
Requirements
410-600 lbs Shipping
Weight
Description / Specifications/ Features/ Accessories/

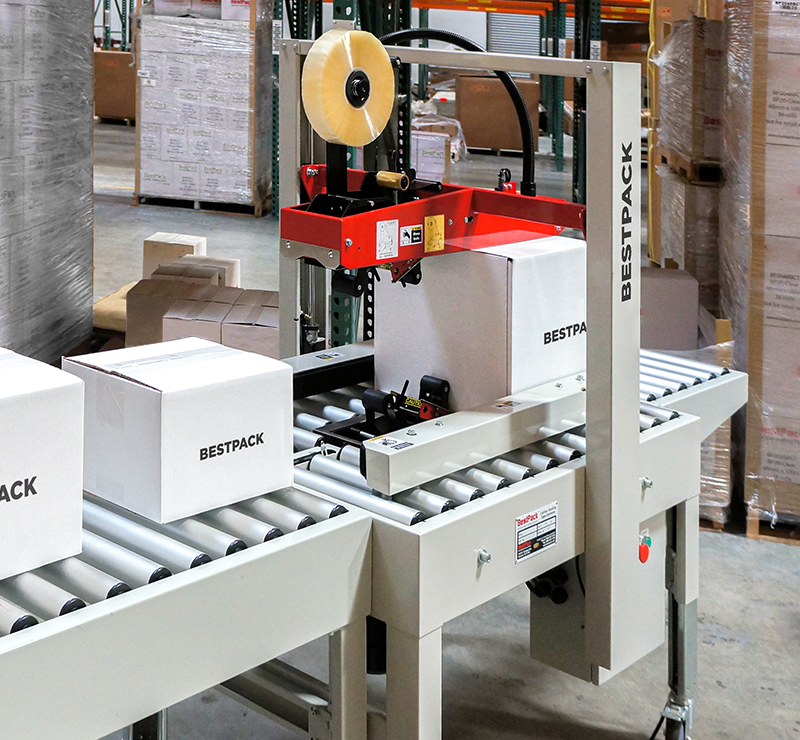

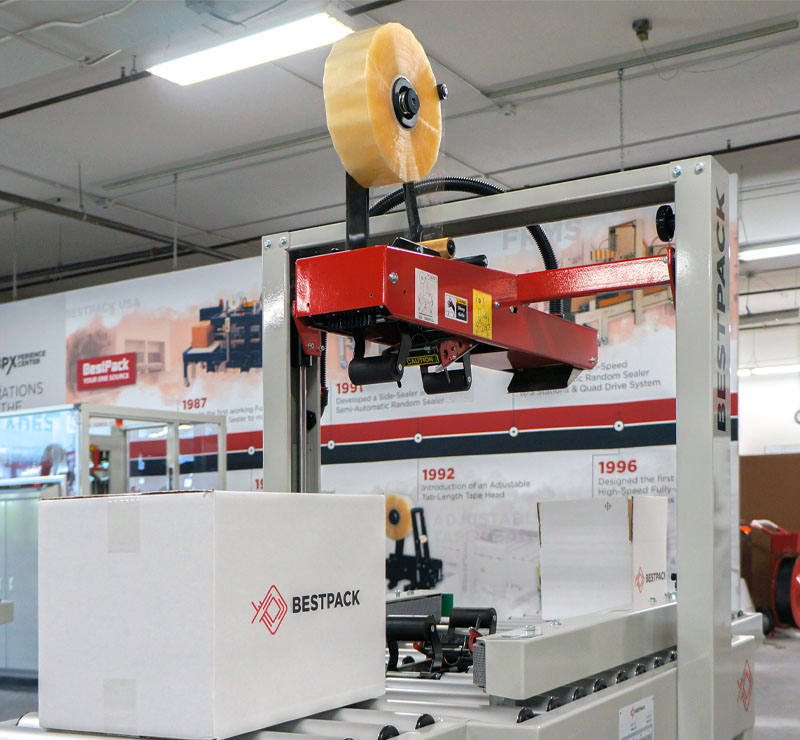

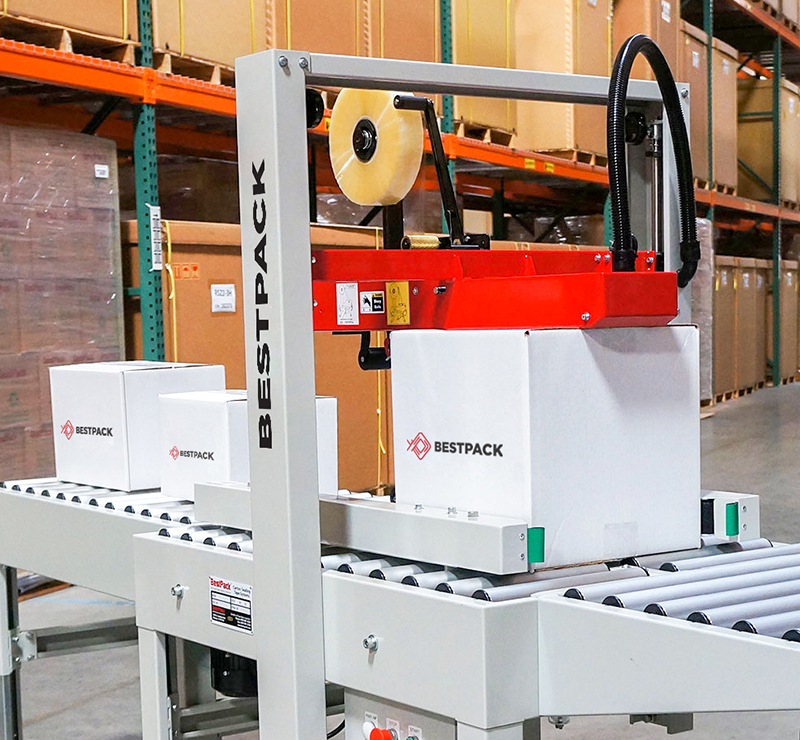

The BestPack RS Series is a Semi-Automatic Random Tape Carton Sealer built for speed and rugged dependability. Using side belt drives, the RS easily seals a wide range of random carton weights and sizes, with masts that allow for an extra 4″ of carton height on the upper assembly. Able to effectively seal very light to very heavy cartons, BestPack’s RS sealer is a workhorse and the most flexible unit in our random carton sealer product line.

Our RS line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

  • Speed Up to 15 Cartons/min.
  • Power Requirements 110 Volts 60 Hz
  • Air Requirements 55-80 PSI, 5 SCFM
  • Shipping Weight 410 lbs
  • Machine Dimensions (42.9") x (34.8") x (71.8")
  • Carton Range (6.0" - U") x (4.25" - 20.0") x (4.0" - 21.0")
  • Trip Current (A) 20
  • FLA 2.5
  • Conveyor Height adjustment (20.5" - 30.0")
  • Phase 1
  • SCCR (KA) 10
  • Max Current (A) 5
  • Power (W) 275
  • Specifications based on Line Specifications based on RS22-2

Specifications based on RS22-2

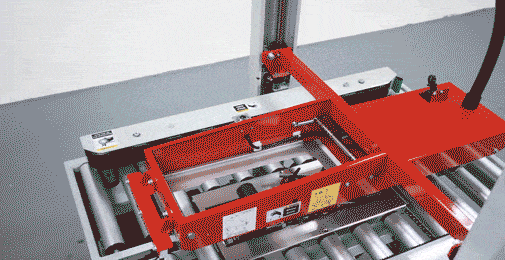

  • Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head
    Exclusive Pop-out Pressure Sensitive “High Speed” Tape Head

    With Patented Tab Adjustment and Noise Reduction Arm

  • Adjustable Bed Height
    Adjustable Bed Height

    RS22, RS23, RS32, RS33: From 20.5" - 30"

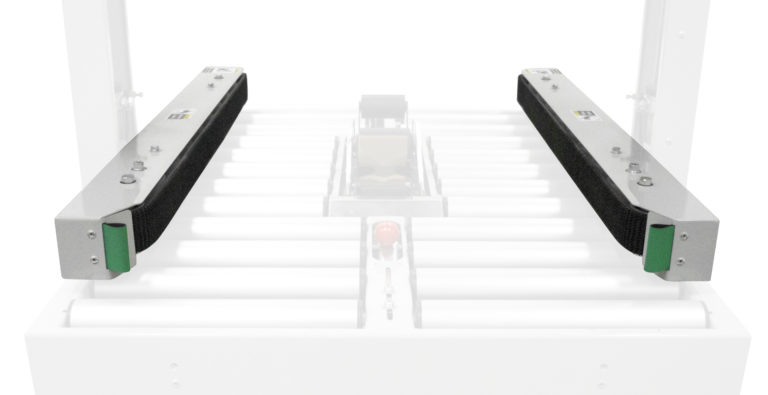

  • 2 Side Belt Drives
    2 Side Belt Drives

  • Extra 4
    Extra 4" Carton Height Adjustment

    Available on Upper Assembly

  • Tape Roll Lengths
    Tape Roll Lengths

    1,000 yd., 1,500 yd., 2,000 yd.

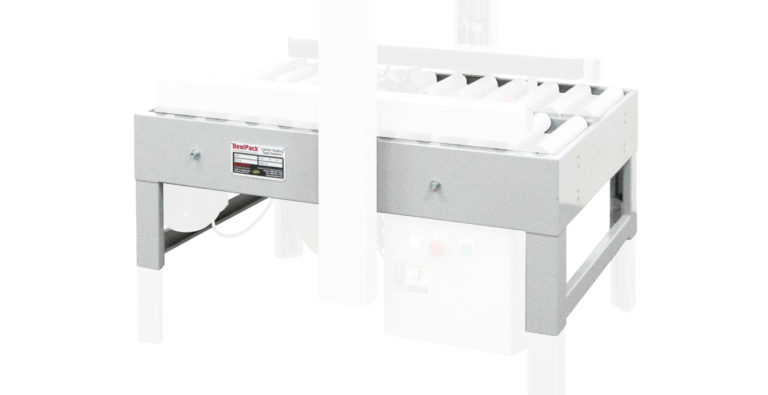

  • Heavy Duty Frame
    Heavy Duty Frame

  • UL Approved Electrical Parts
    UL Approved Electrical Parts

  • Capable of Interchanging 2
    Capable of Interchanging 2" or 3" Tape Heads

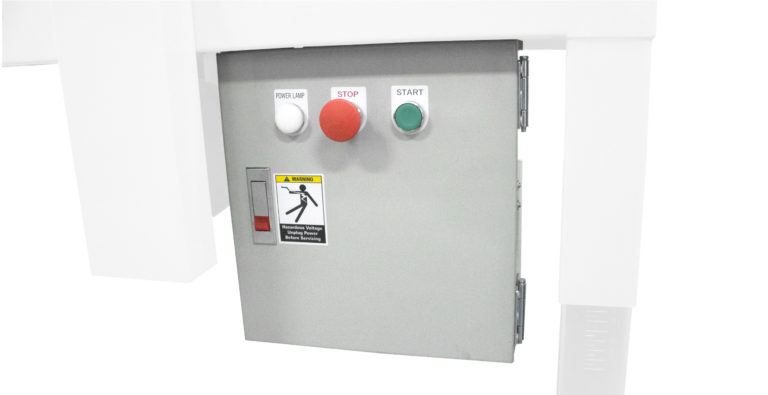

  • Electrical On/Off Box
    Electrical On/Off Box

    Can be Mounted on Either Side of the Carton Sealer

  • spare parts kit accessory
    Spare Parts Kit

    Minimize downtime by always having a spare with BestPack’s Spare Parts Kit.
    *Spare Parts Kits may vary based on machine*

  • locking casters accessory
    Locking Casters

    The heavy duty locking casters allow the carton sealer quick and easy mobility to other locations.

  • long conveyor accessory
    Long Infeed/Exit Conveyor w/ L-Bracket

    This 39.5 in. long conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.

  • spare tape head accessory
    Spare Tape Heads

    Order a spare tape head with your machine to minimize down time. Having a spare will allow you to drop in a tape head with a new roll of tape in no time!

  • short conveyor accessory
    Short Infeed/Exit Conveyor w/ L-Bracket

    This 19.75″ short conveyor is a great work platform and allows for staging of cartons on the infeed and the exit.
