BPX SolutionsPoly BundlersSemi-Automatic Poly Bundling with Shrink Tunnel
Category: Poly Bundlers

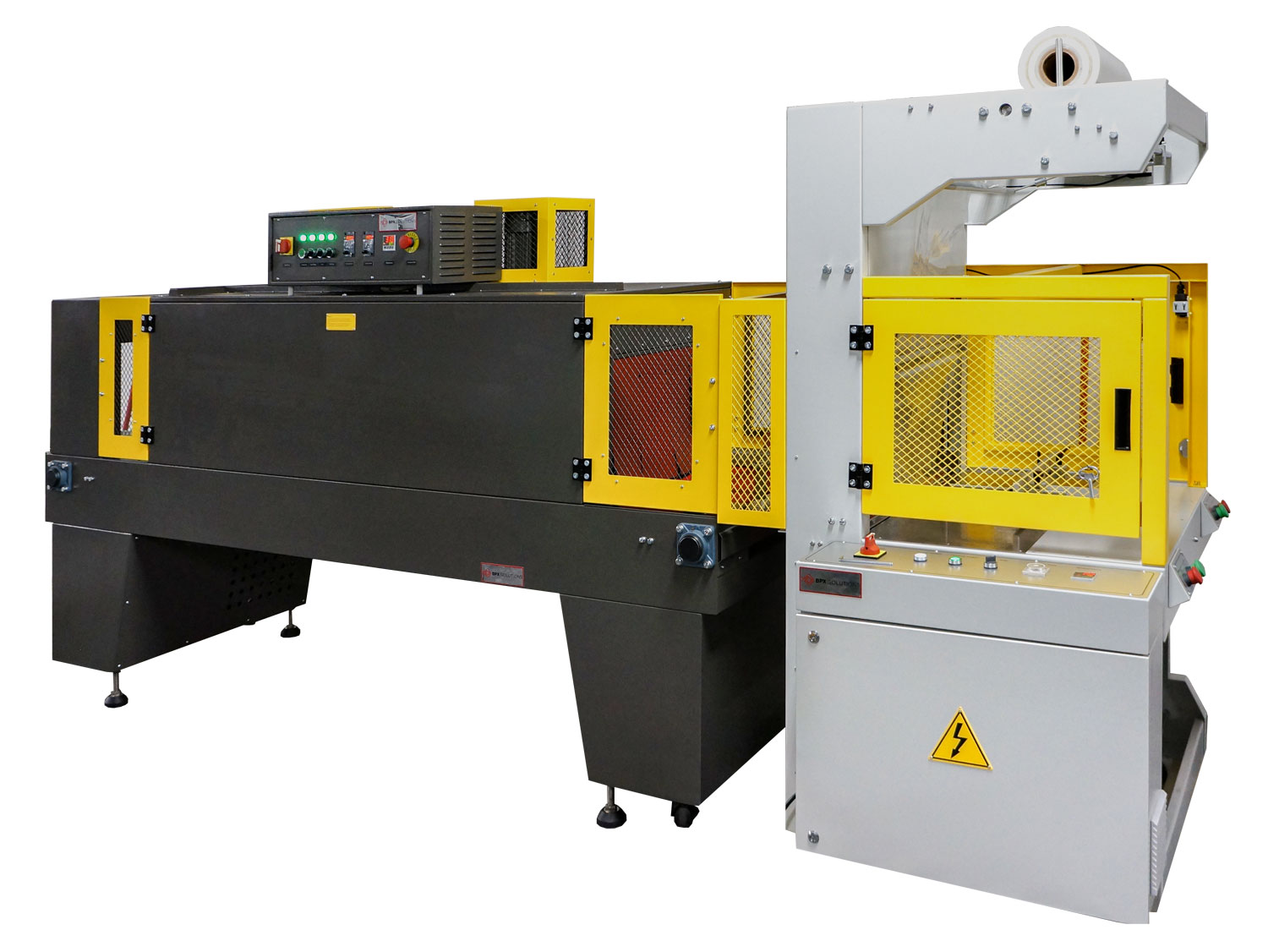

Semi-Automatic Poly Bundling with Shrink Tunnel

In-Line Poly Bundling Sleeve Wrapping Machine

Semi-Automatic Semi-Automatic
Low Speed Low Speed
Sleeve Wrapping Sleeve Wrapping
220 VOLTS
1 Phase 15 AMP POWER
REQUIREMENTS
Top Down FLOW
0-400°F TEMPERATURE
RANGE
Calculate ROI Request A Quote
Description / Specifications/ Features/

Meet BPX solutions Semi-Automatic Polybundler & Shrink Tunnel Combo. The perfect solution for bundling beverages together.

Model#’s

  • PP-6030 – Semi-Automatic Poly Bundler PP-6030
  • PP-6030/PP-6040-M – Semi-Automatic Poly Bundler PP-6030 + PP-6040M Shrink Tunnel
  • PP-6030Z – Automatic Inline Poly Bundler/Sleeve Wrapper PP-6030z Poly Bundler
  • Speed Up to 10 Packages/Min.
  • Power Requirements 220 Volt, 3 Phase 66 AMPS
  • Shipping Weight 380 lbs.
  • Carton Range (20.0") x (12.0") x (12.0")
  • Phase 3
  • Max Current (A) 66
  • Power (W) 25 KW
  • Specifications based on Line Specifications based on PP-6030 + PP-6040M

Specifications based on PP-6030 + PP-6040M

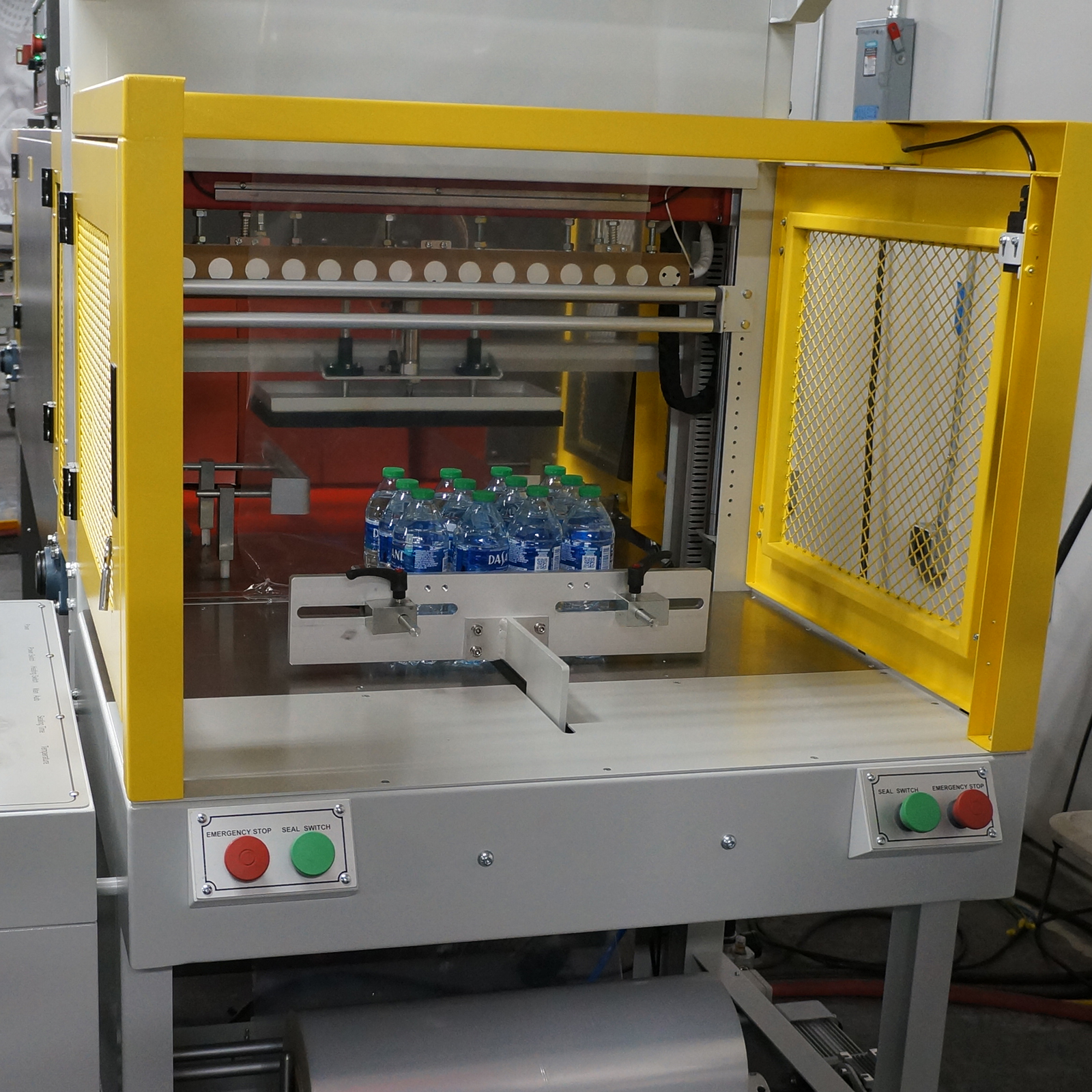

  • Pusher Arm
    Pusher Arm

    Advances Product into seal area

  • Easy to use front control Panel
    Easy to use front control Panel

    Access to Digital Temperature Contorls

  • Dual Film Rack with Independent Heavy Duty Motor Drive
    Dual Film Rack with Independent Heavy Duty Motor Drive

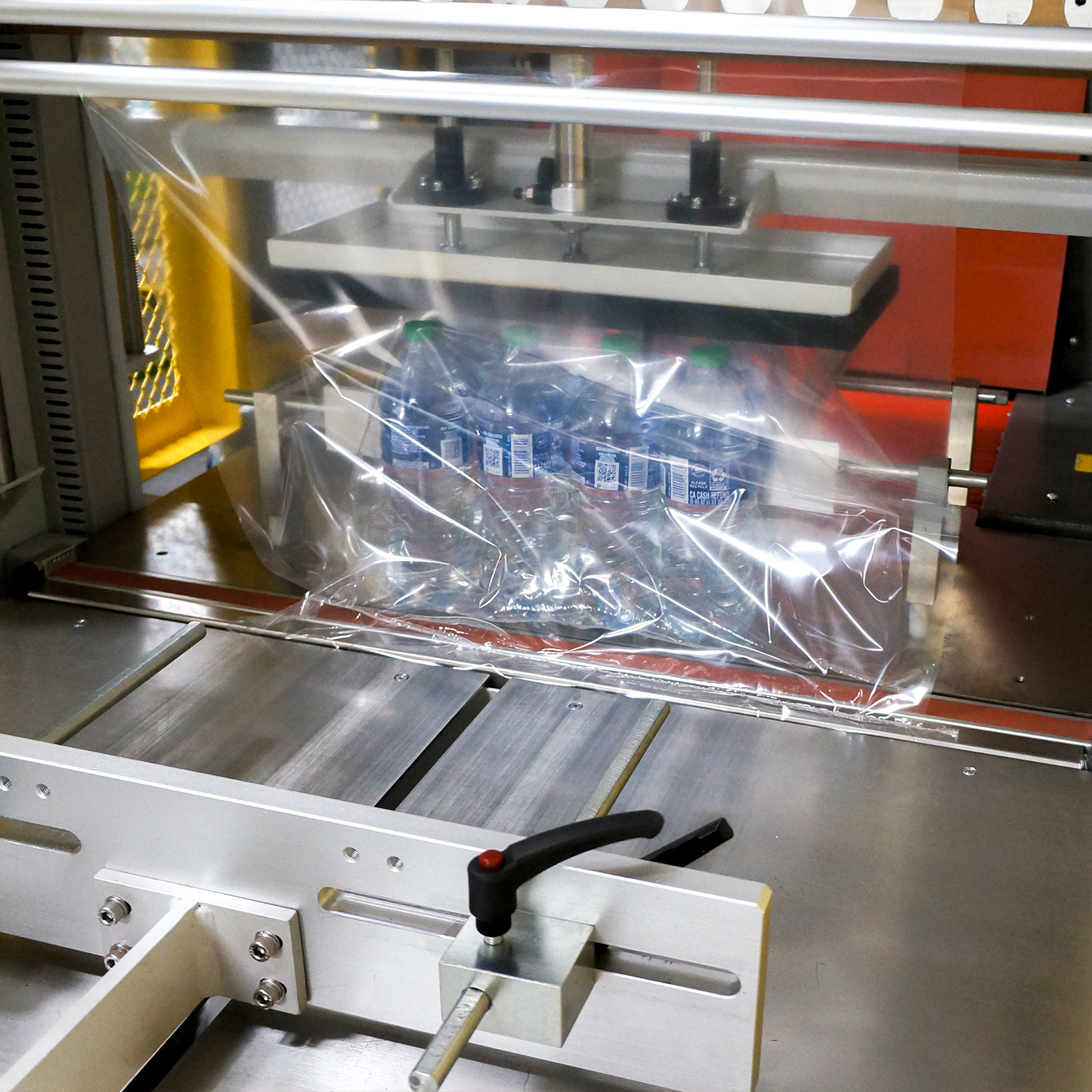

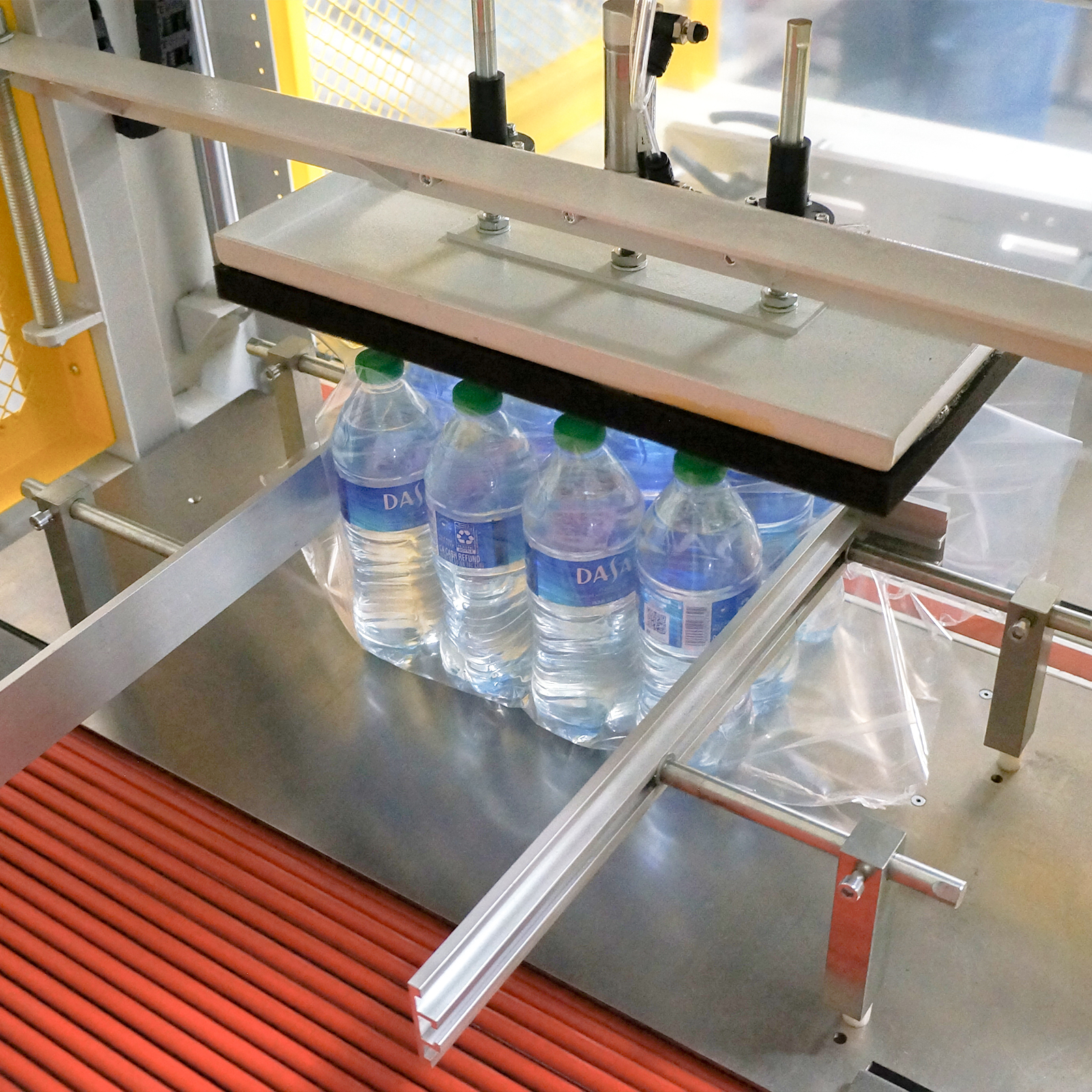

  • Pneumatic product hold down
    Pneumatic product hold down

    Stabilizes product on discharge conveyor

  • Good Air Circulation inside of tunnel chamber
    Good Air Circulation inside of tunnel chamber

    Provides Best Shrink Results

  • Machine Speeds of 5 to 10 PPM
    Machine Speeds of 5 to 10 PPM

    Depending on product size and film gauge used

  • Heavy Duty High RPM
    Heavy Duty High RPM

    High Air Velocity Blower Motor

  • Heavy Duty Dead Roller Rod Conveyor
    Heavy Duty Dead Roller Rod Conveyor

  • Cooling Fan
    Cooling Fan

    On the discharge end of tunnel

  • Emergency Stop Switch
    Emergency Stop Switch

  • Heavy Duty Leveling Pads
    Heavy Duty Leveling Pads

  • Air Regulator with Water Trap
    Air Regulator with Water Trap
